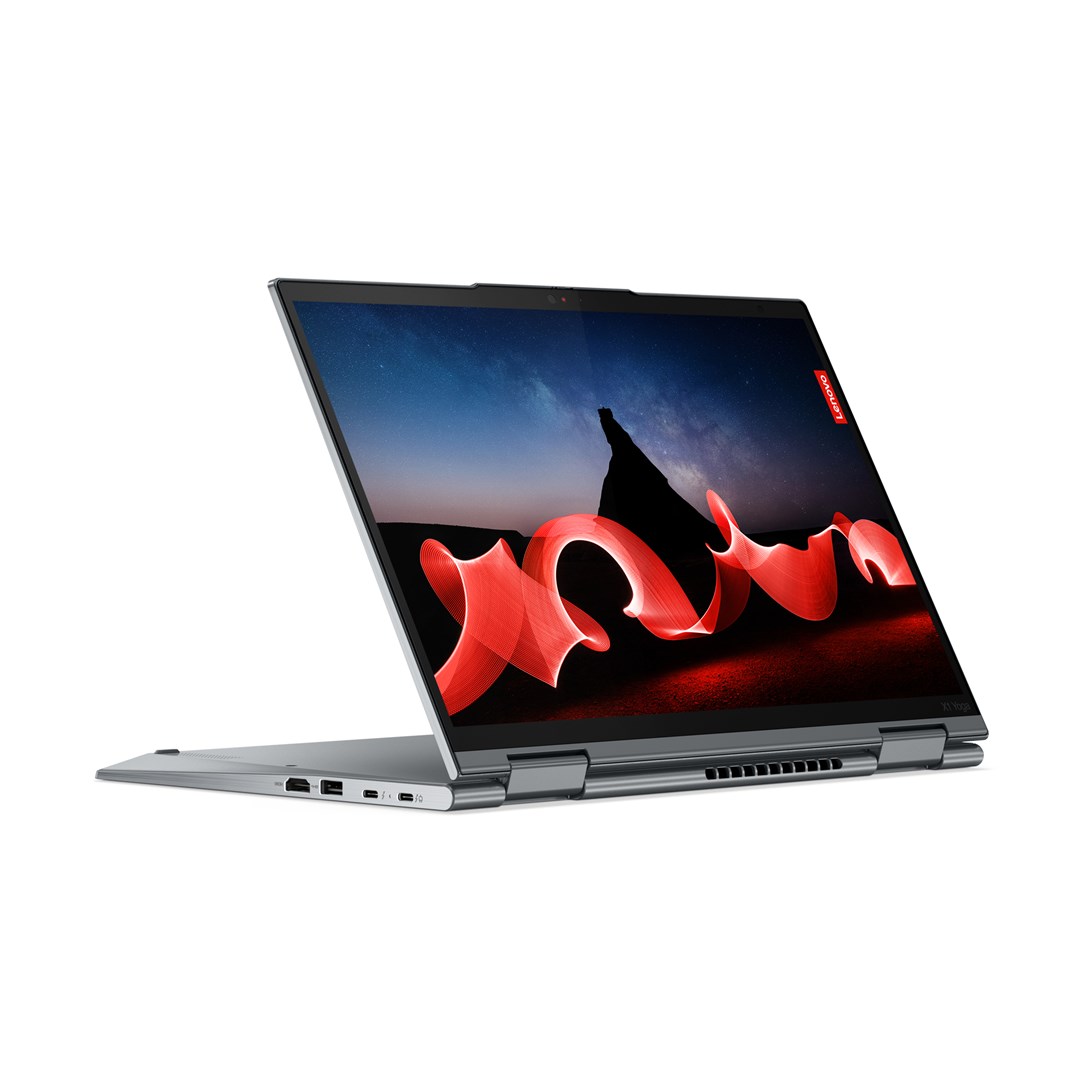

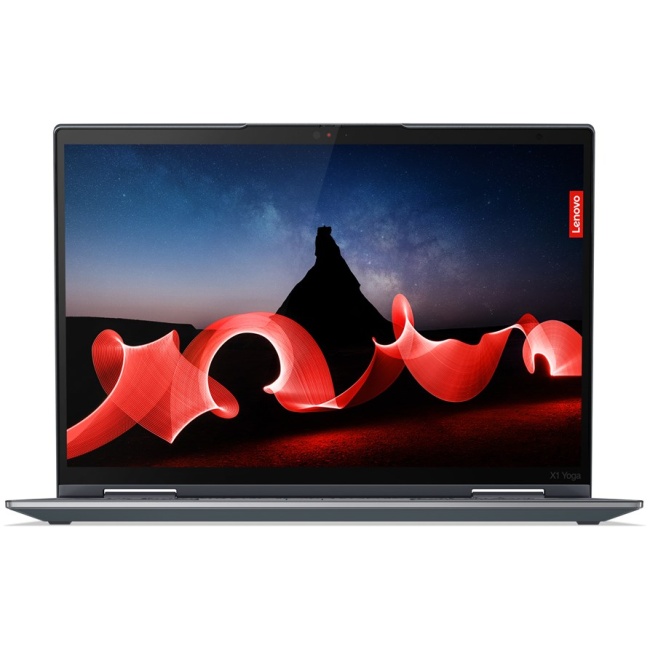

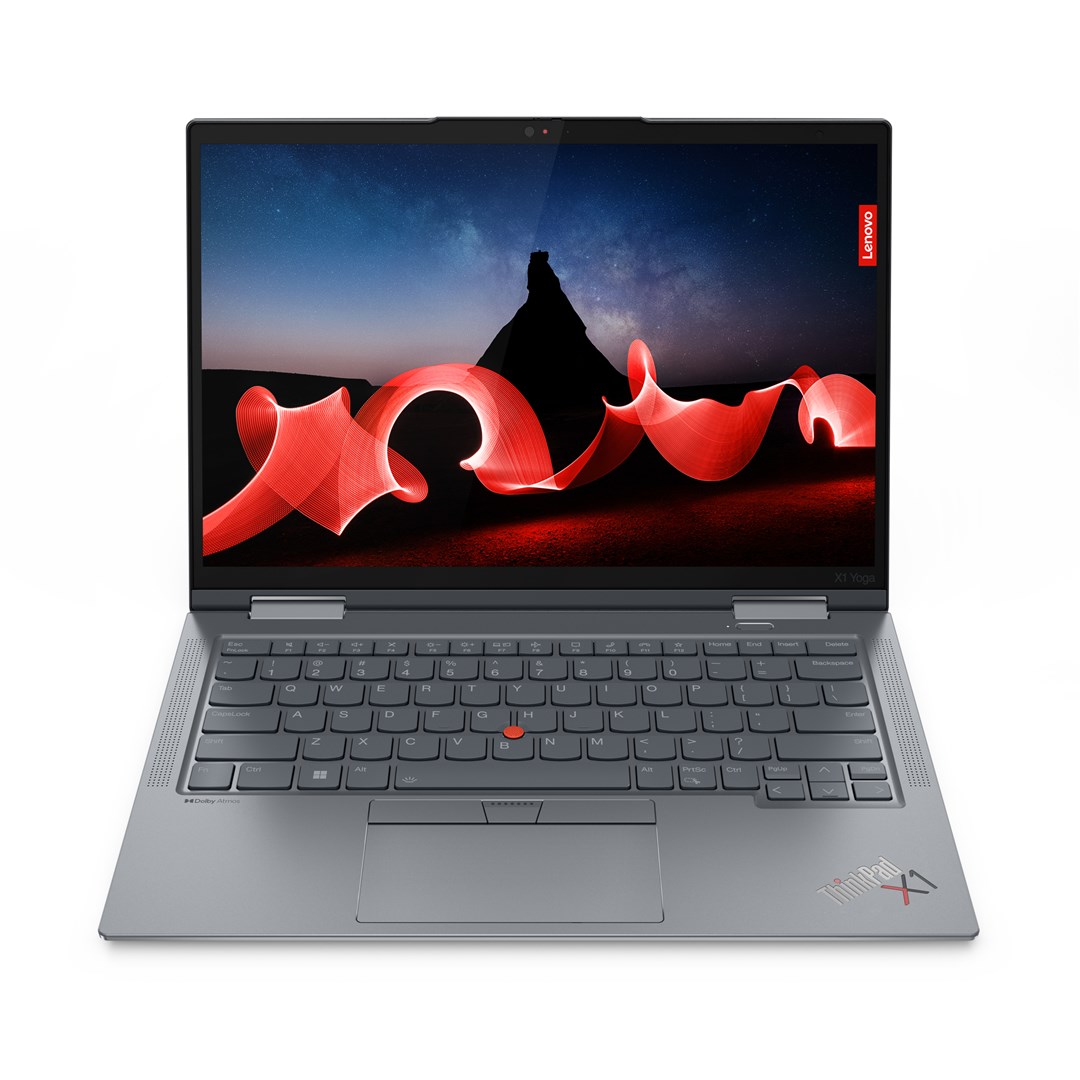

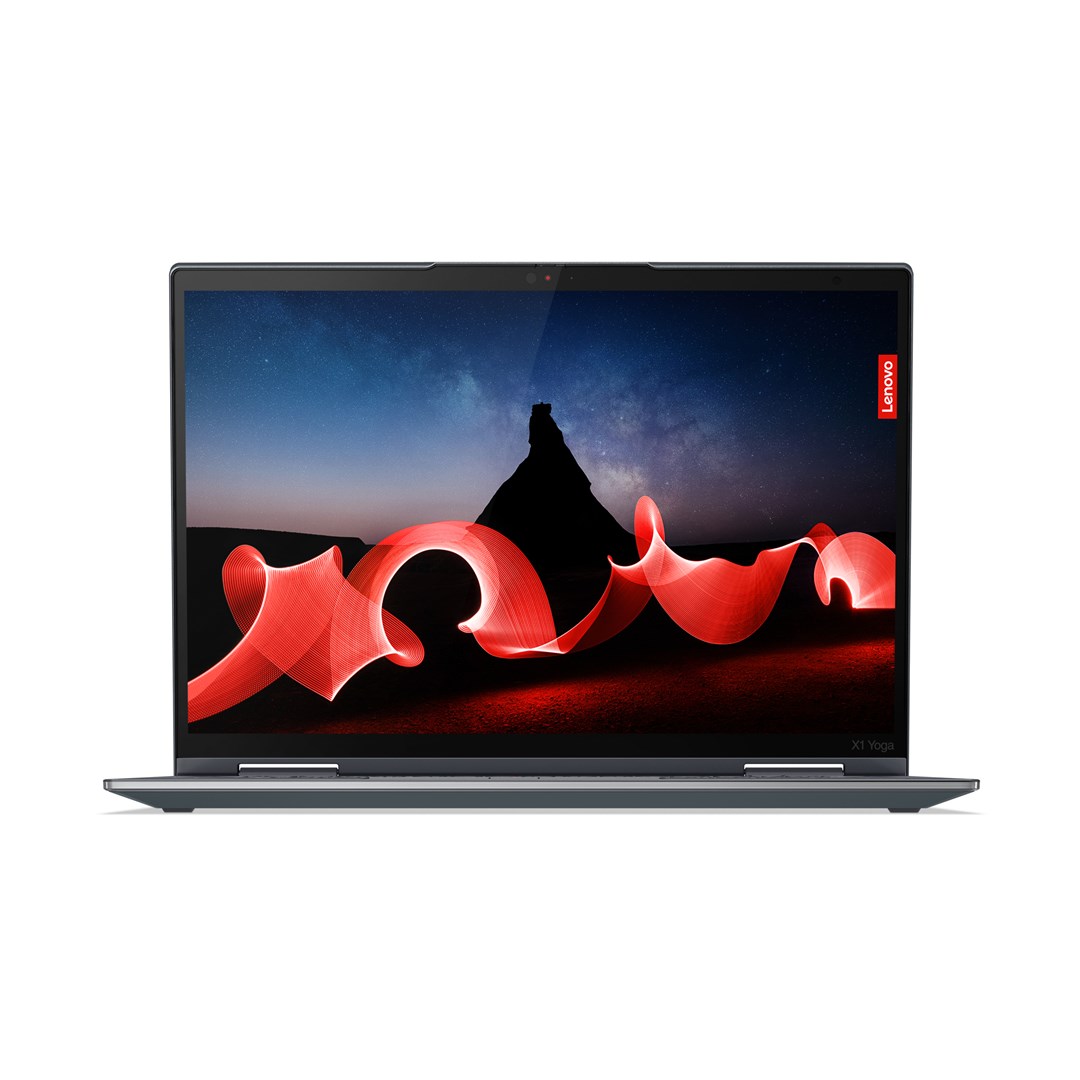

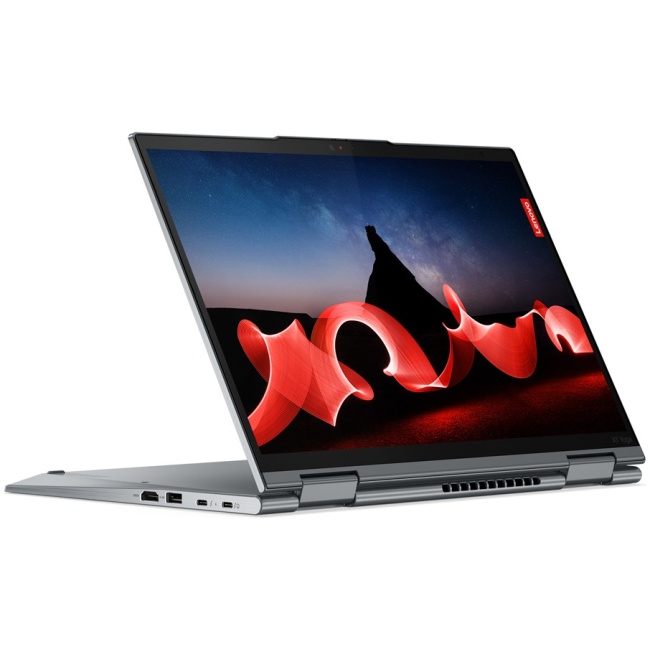

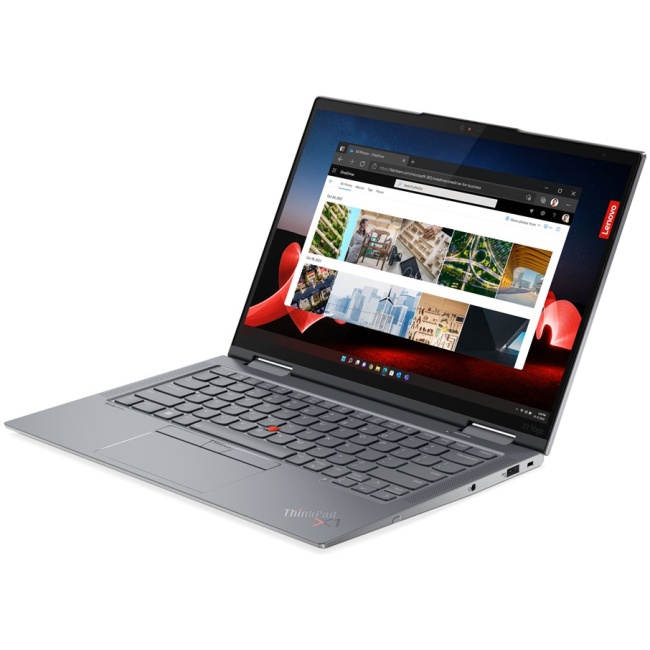

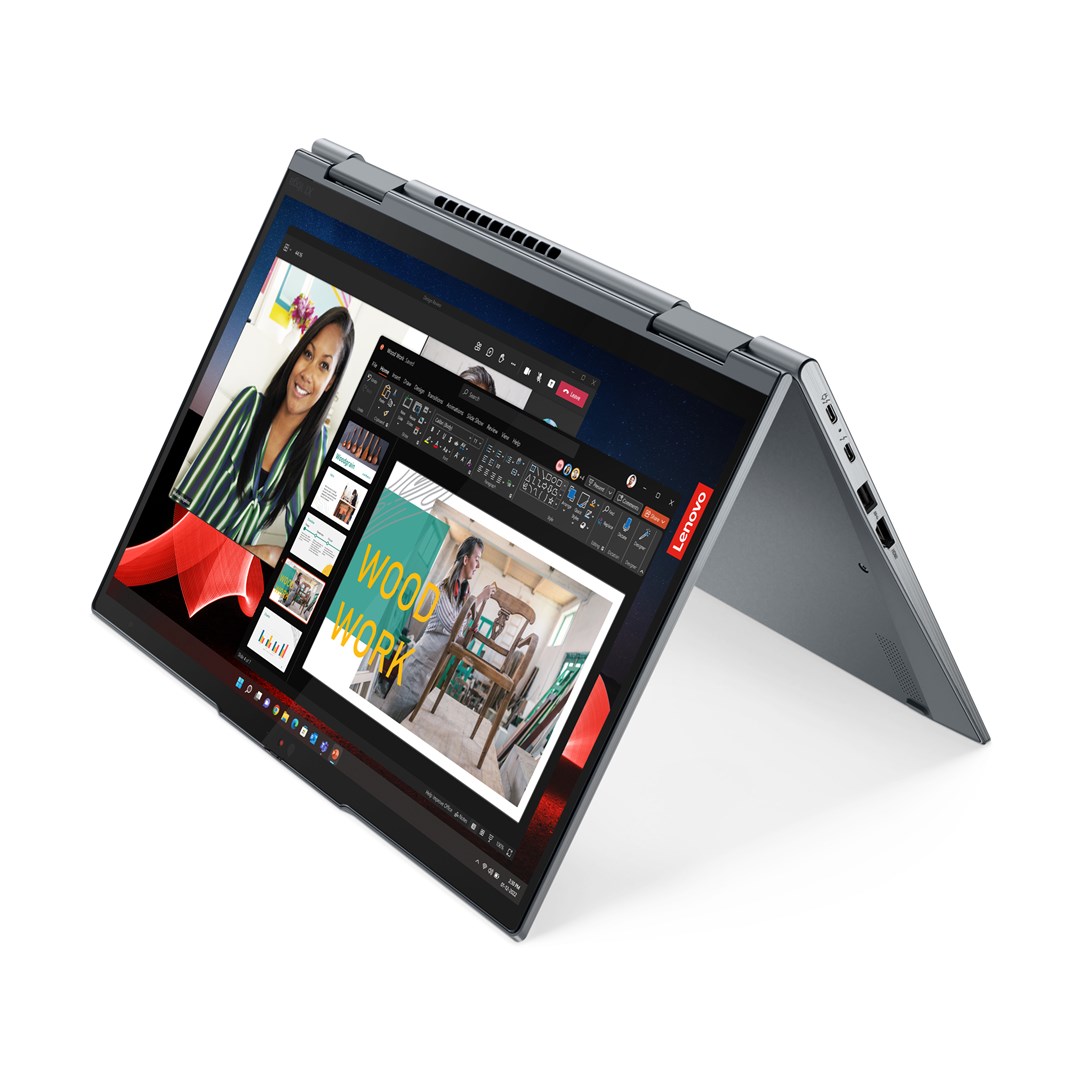

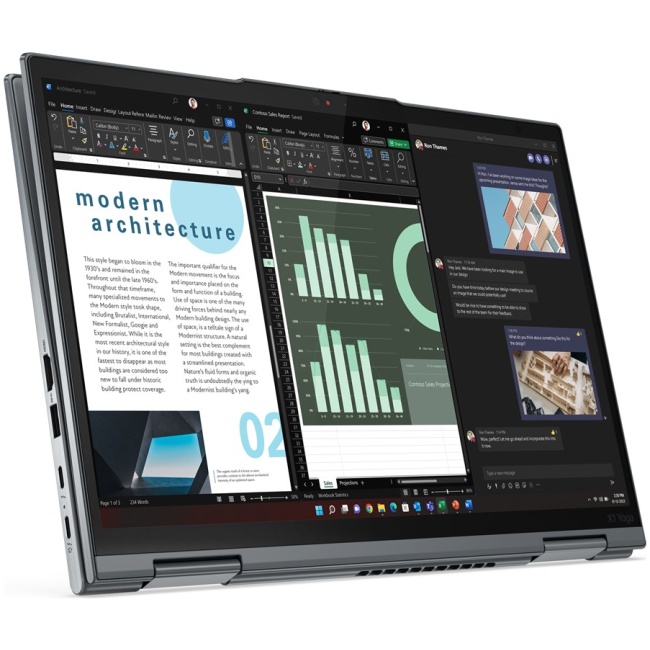

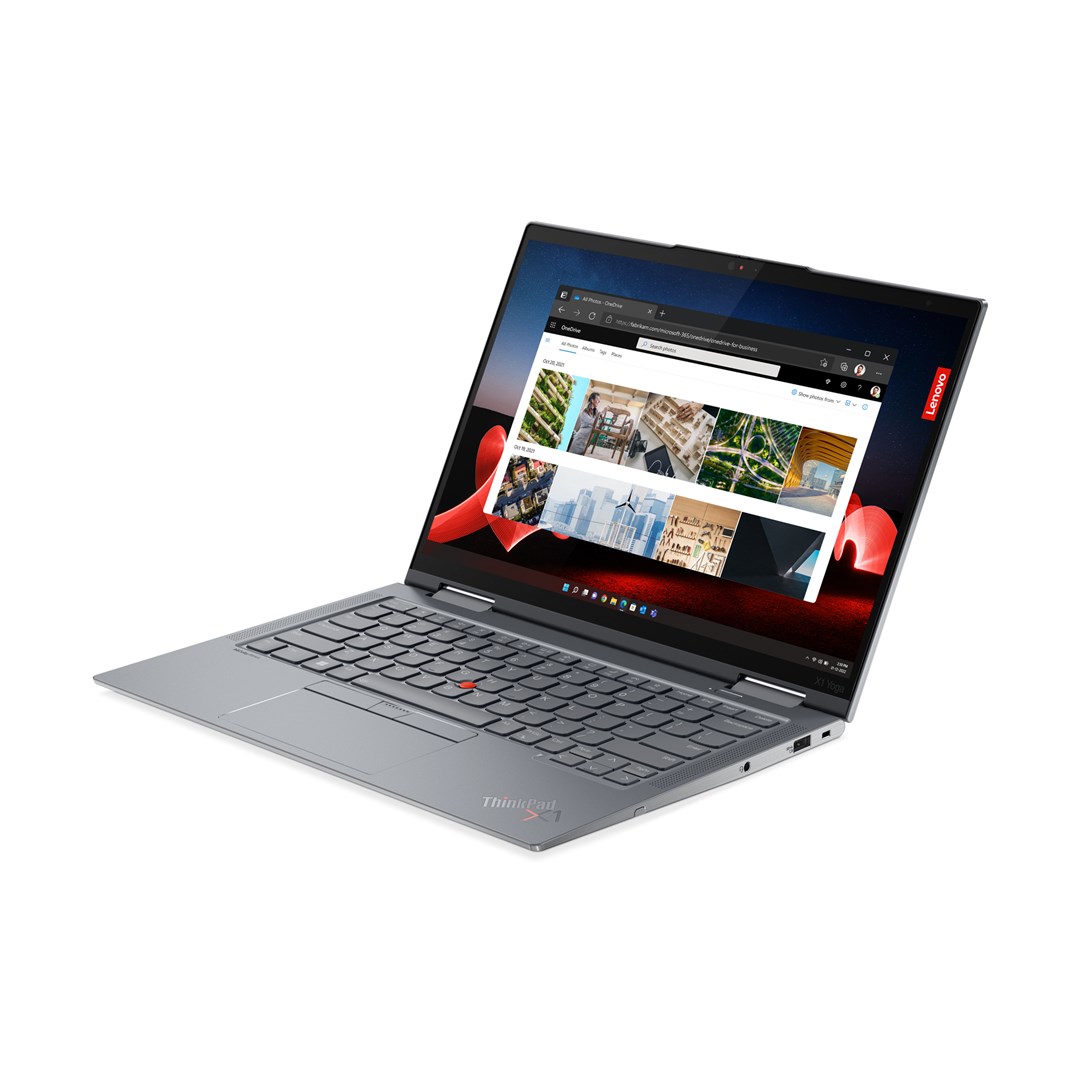

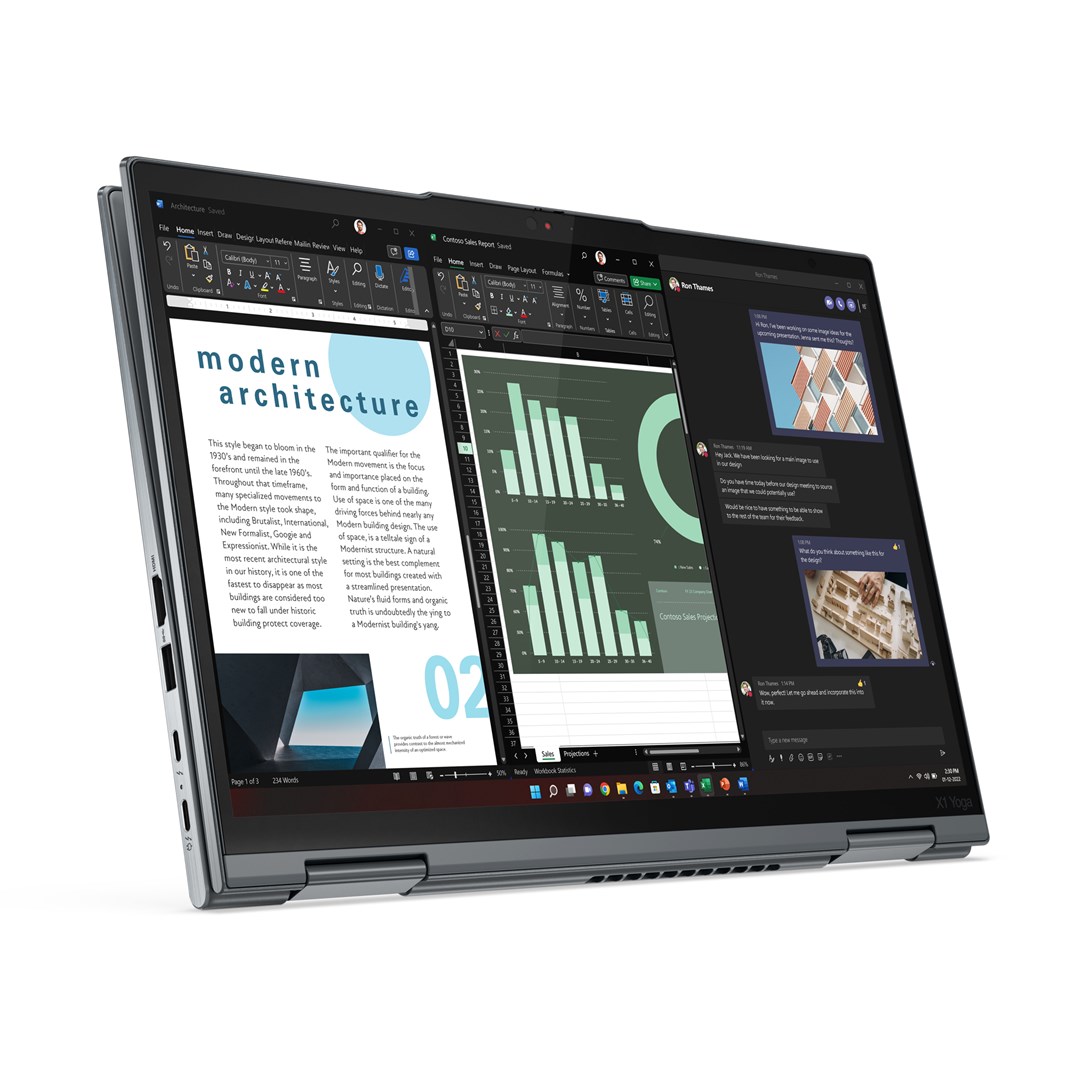

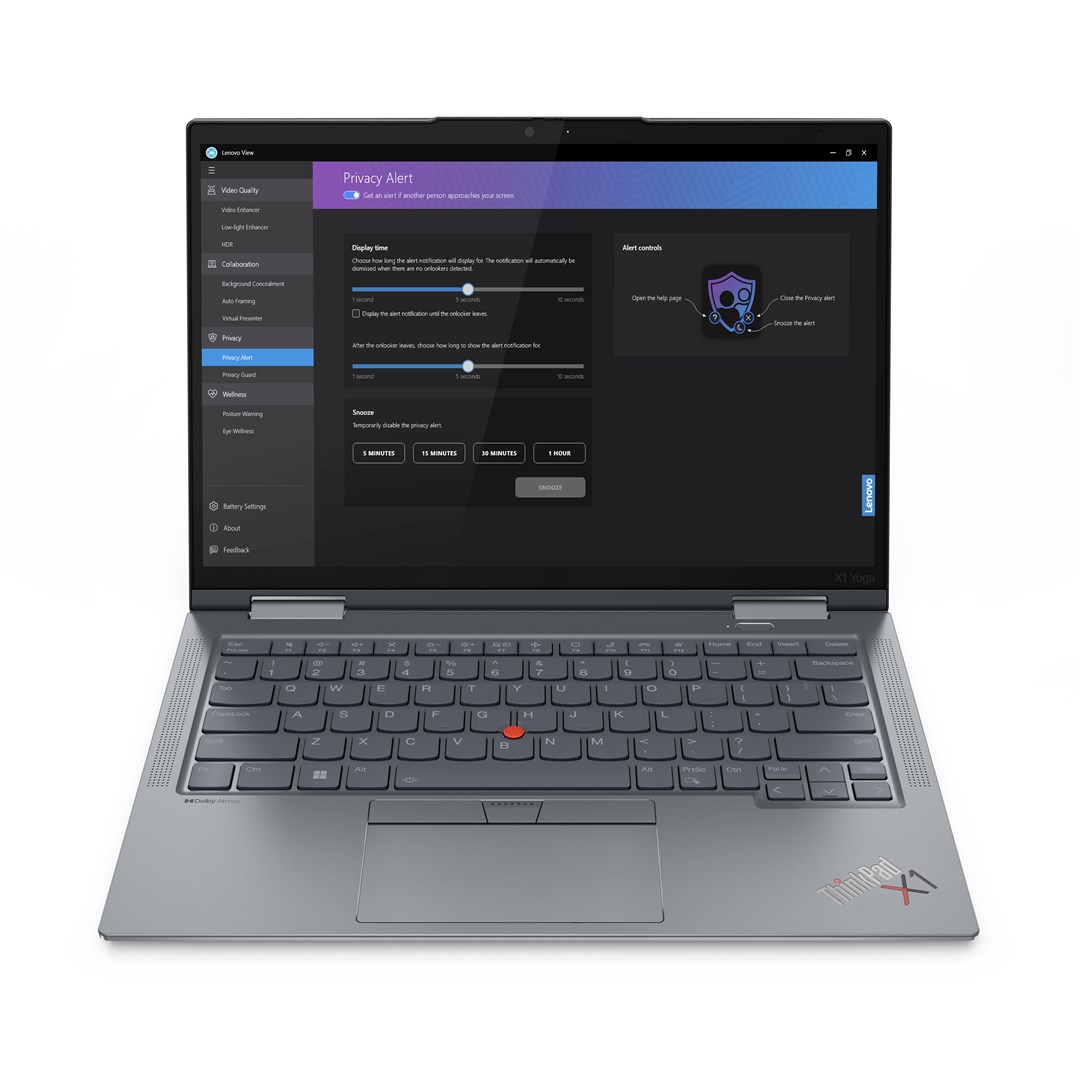

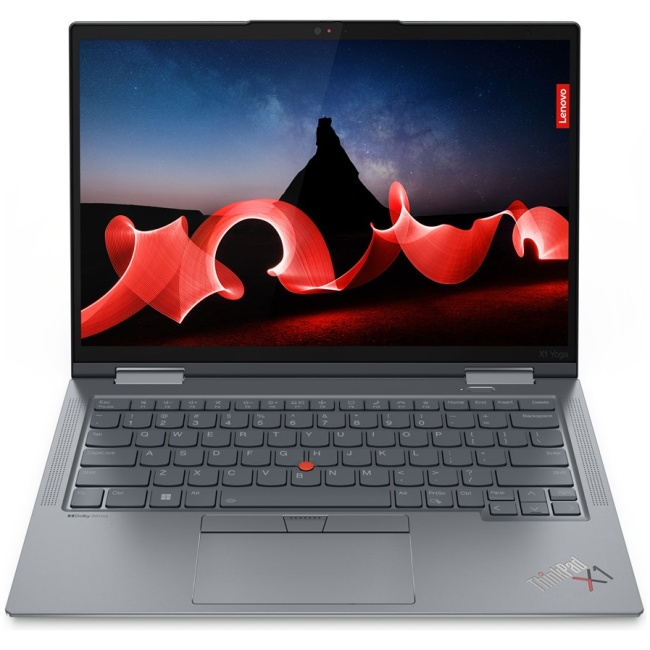

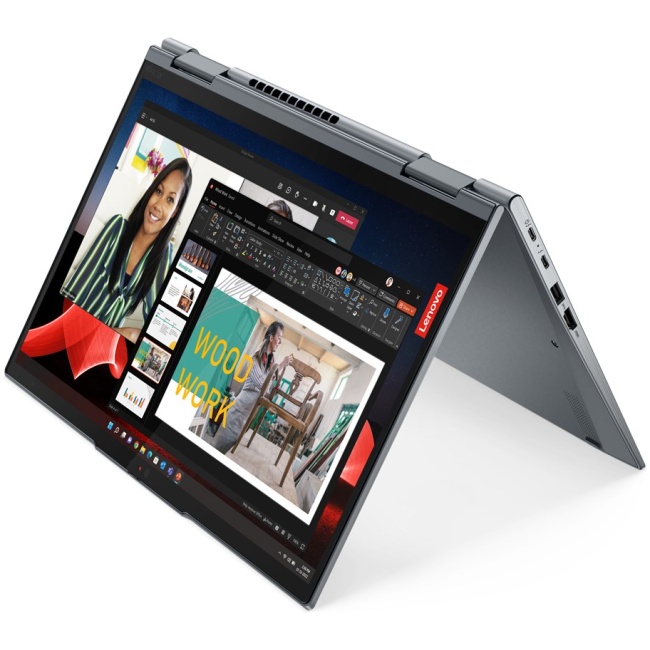

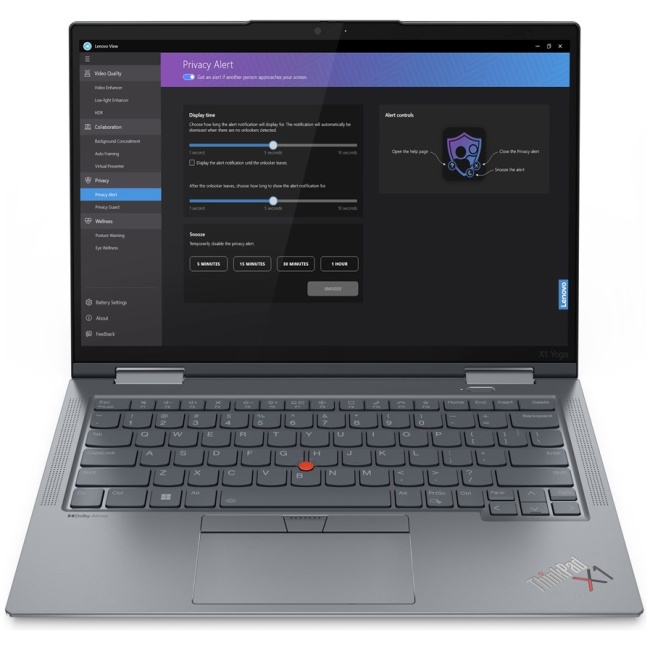

Lenovo ThinkPad X1 Yoga Gen 8 Intel® Core™ i7 i7-1365U Hybrid (2-in-1) 35.6 cm (14") Touchscreen WUXGA 32 GB LPDDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro English Grey New Repack/Repacked

Technical Specifications

Processor

Processor manufacturer: Intel

Efficient-core Max Turbo Frequency: 3.9 GHz

Processor base power: 15 W

Processor generation: 13th gen Intel® Core™ i7

Performance cores: 2

Performance-core Max Turbo Frequency: 5.2 GHz

Maximum turbo power: 55 W

Efficient cores: 8

Processor family: Intel® Core™ i7

Processor cache: 12 MB

Graphics

Discrete graphics card: No

On-board graphics card: Yes

On-board GPU manufacturer: Intel

Discrete graphics card model: Not available

On-board graphics card model: Intel Iris Xe Graphics

:

:

:

:

:

:

:

:

:

:

Memory

Maximum internal memory: 32 GB

Internal memory type: LPDDR5-SDRAM

Memory channels: Octa-channel

Memory form factor: On-board

Internal memory: 32 GB

Memory clock speed: 6400 MHz

:

:

:

:

Design

Product type: Hybrid (2-in-1)

Housing material: Aluminium

Colour name: Storm Grey

Product colour: Grey

Certified refurbished: No

:

:

:

:

:

Power

AC adapter frequency: 50 – 60 Hz

USB Type-C charging port: Yes

USB Power Delivery (USB PD): Yes

AC adapter input voltage: 100 – 240 V

:

:

:

:

:

:

Security

Password protection: Yes

Windows Hello: Yes

Trusted Platform Module (TPM) version: 2.0

Trusted Platform Module (TPM): Yes

Cable lock slot type: Kensington

Cable lock slot: Yes

:

:

:

:

Operational conditions

Maximum shipping altitude: 3048 m

Operating relative humidity (H-H): 8 – 95%

Operating temperature (T-T): 5 – 35 °C

Storage temperature (T-T): 5 – 43 °C

Storage relative humidity (H-H): 5 – 95%

:

:

:

:

:

Weight & dimensions

Width: 314.4 mm

Depth: 222.3 mm

Height: 15.5 mm

Weight: 1.38 kg

:

:

:

:

:

:

Network

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Ethernet LAN: No

Mobile network connection: Yes

WLAN controller model: Intel Wi-Fi 6E AX211

Bluetooth version: 5.3

WWAN controller: Fibocom L860-GL-16

WWAN: Installed

Mobile network generation: 4G

Antenna type: 2×2

Bluetooth: Yes

Performance

Motherboard chipset: Intel SoC

:

:

:

:

:

:

:

:

:

Packaging content

Stylus pen: Yes

AC adapter included: Yes

:

:

:

:

:

:

:

:

Display

Contrast ratio (typical): 1000:1

Panel type: IPS

Touchscreen: Yes

Colour gamut: 100%

RGB colour space: sRGB

Display resolution:

Display resolution: 1920 x 1200 pixels

LED backlight: Yes

Display diagonal: 35.6 cm (14")

Native aspect ratio: 16:10

HD type: WUXGA

:

:

:

:

:

Software

Operating system architecture: 64-bit

Operating system installed: Windows 11 Pro

:

:

:

:

:

:

:

:

Audio

Number of microphones: 4

Number of built-in speakers: 4

Built-in microphone: Yes

Audio chip: Realtek ALC3306

Audio system: Dolby Atmos

:

:

:

:

:

Certificates

Compliance certificates: RoHS

:

:

:

:

:

:

:

:

:

Storage

SSD interface: PCI Express 4.0

Card reader integrated: No

Total SSDs capacity: 512 GB

Number of SSDs installed: 1

NVMe: Yes

SSD form factor: M.2

SSD capacity: 512 GB

M.2 SSD size: 2280 (22 x 80 mm)

SSD memory type: TLC

Optical drive type: No

Ports & interfaces

USB Sleep-and-Charge: Yes

USB Type-C DisplayPort Alternate Mode: Yes

USB Sleep-and-Charge ports: 1

Thunderbolt 4 ports quantity: 2

Intel® Thunderbolt 4: Yes

Combo headphone/mic port: Yes

HDMI version: 2.1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

:

Camera

Front camera resolution: 1920 x 1080 pixels

Front camera HD type: Full HD

Infrared (IR) camera: Yes

Front camera: Yes

:

:

:

:

:

:

Battery

Battery capacity: 57 Wh

Battery technology: Lithium-Ion (Li-Ion)

Number of battery cells: 4

Fast charging: Yes

:

:

:

:

:

:

Keyboard

Pointing device: ThinkPad UltraNav

Spill-resistant keyboard: Yes

Keyboard backlit: Yes

Numeric keypad: No

:

:

:

:

:

:

Neural processor unit (NPU)

Copilot+ PC: No

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
