LR-Link LRES2051PT Ethernet Network Adapter 1x 10G Ethernet

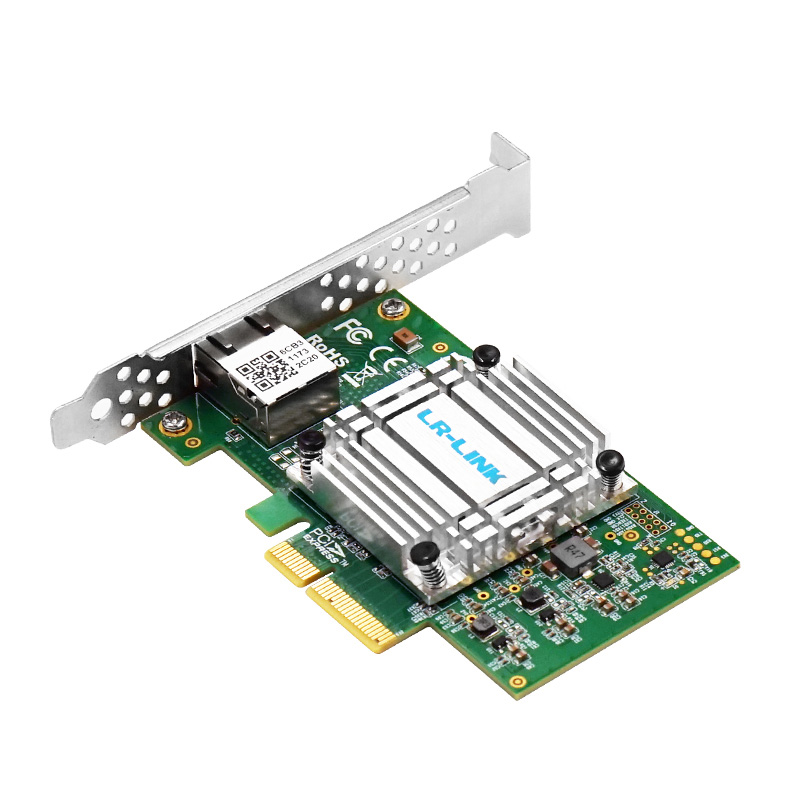

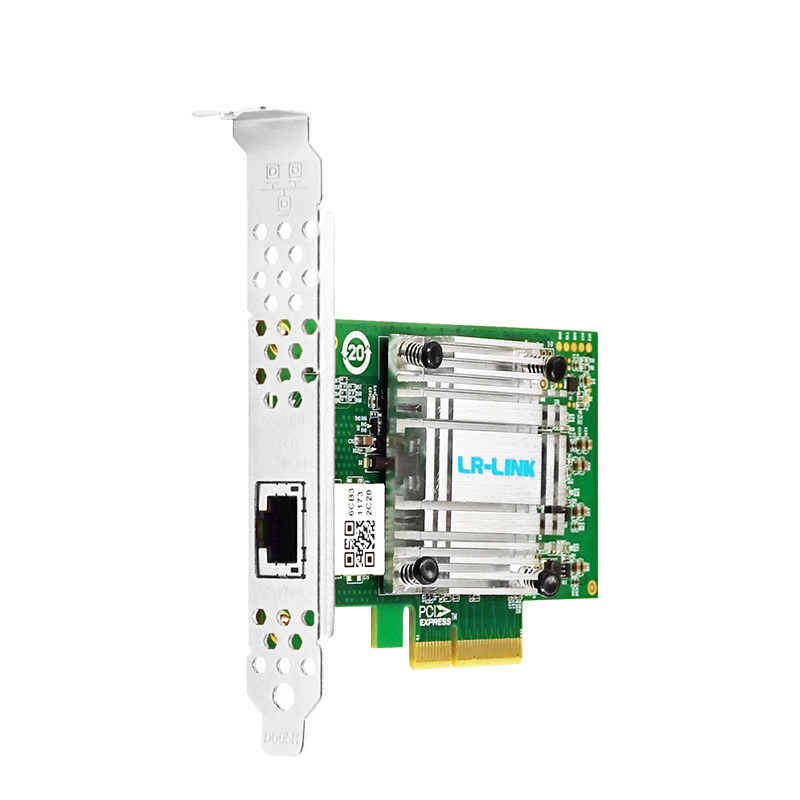

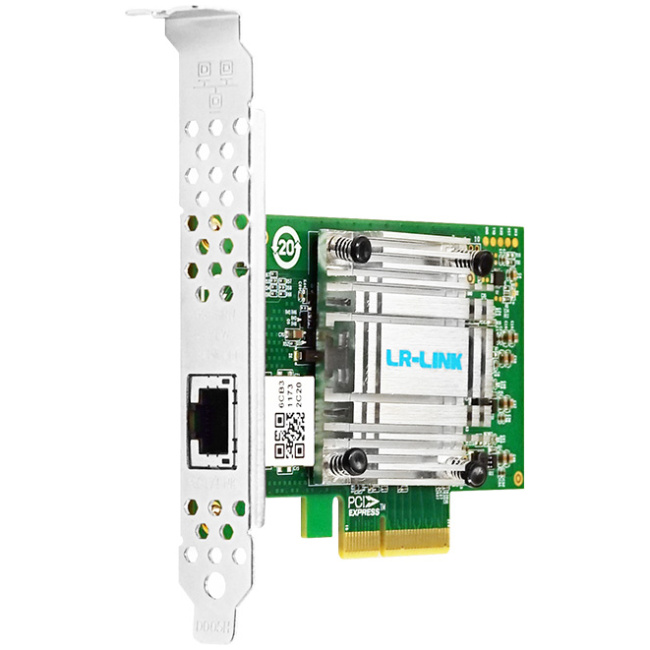

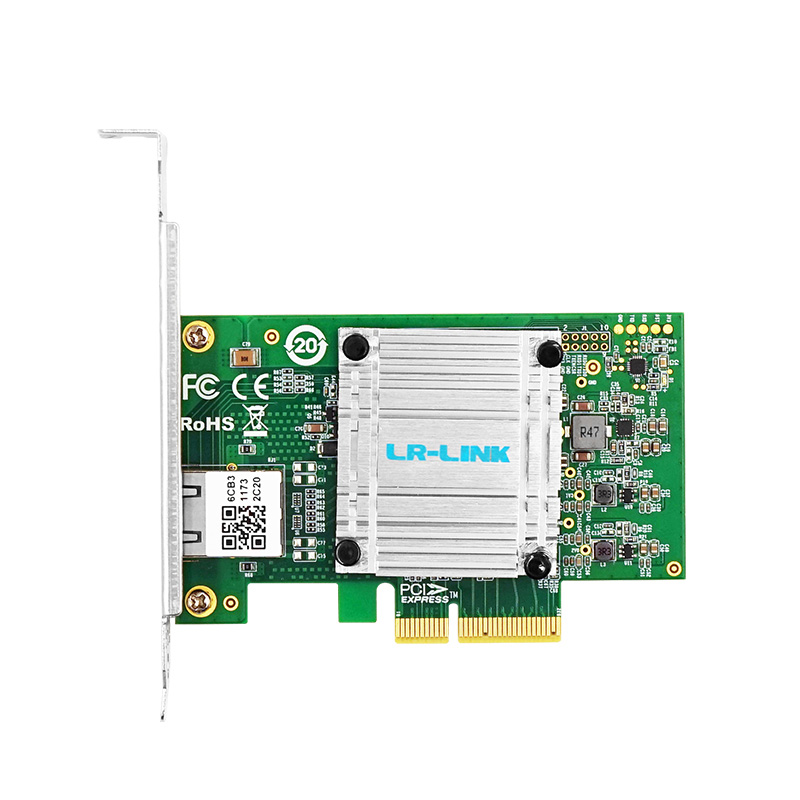

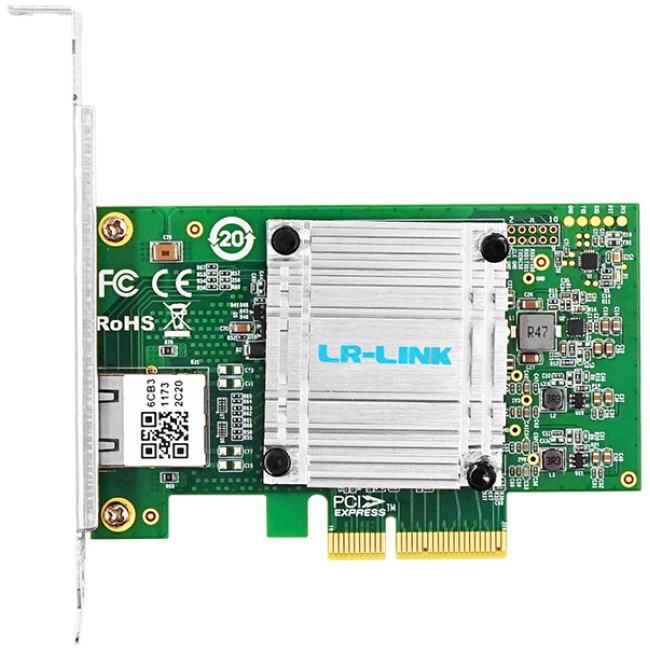

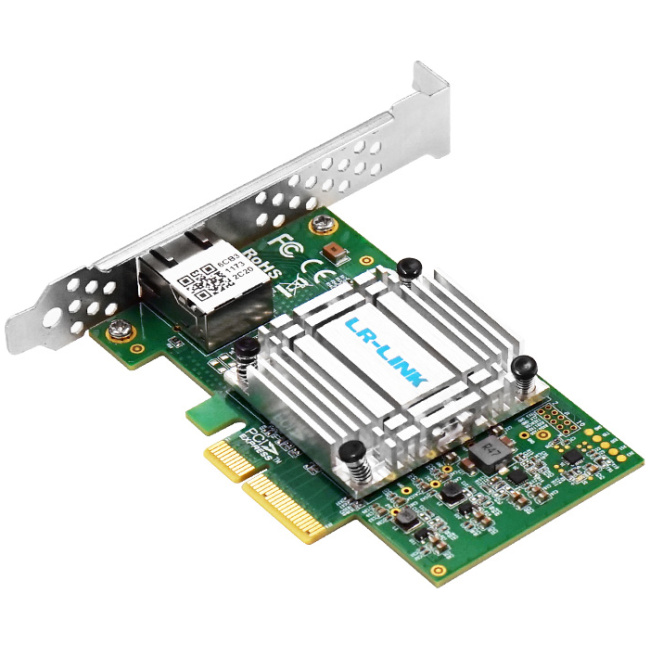

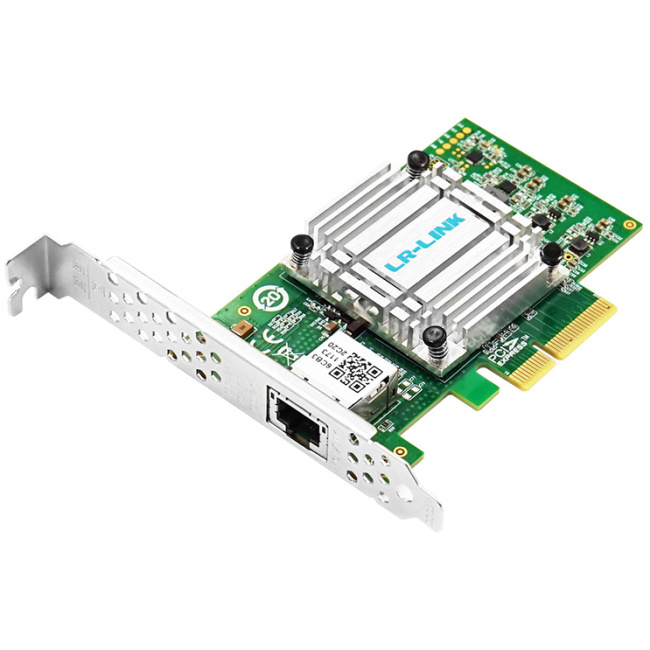

LR-Link LRES2051PT is a network card for PCI Express x4 slot (compatible with x8 and x16). It features 1 port of 10G Ethernet (RJ45) and is based on the Marvell AQC113 chipset. The utilized port allows you to conduct transmission using a regular Ethernet cable, rather than fiber optics. The device supports PXE, WoL, UEFI, Jumbo frames, MDI/MDI-X crossover, VLAN, and SR-IOV. The package includes both high and low-profile brackets.

• 1 10G Ethernet port

The network card is equipped with 1 port of 10G Ethernet supporting automatic speed negotiation (10 / 100 / 1000 / 2500 / 5000 / 10000 Mb/s). It's designed for use on a PCI Express x4 slot but is also compatible with x8 and x16. The package includes two brackets – low and high profile.

The device's design is based on the Marvell AQC113 chipset, widely used in various networking solutions.

• Advanced functions

The LRES2051PT supports PXE, WoL, UEFI, Jumbo frames, MDI/MDI-X crossover, VLAN, and SR-IOV. The card is compatible with many operating systems, including Windows, Windows Server, Ubuntu, RHEL/Centos, and many others.

The network card has been designed with servers in mind, but you can also use it in other solutions, including personal computers.

—

• Chipset Marvell AQC113
• Cable medium Copper
• Copper Cable Type
• CAT-6:50m（5G), 100m（2.5G), CAT-7:100m (10G)
• Bracket Height Low Profile & Full Height
• Min power consumption 1,2177 W
• Max power consumption 2,805 W
• Bus Type PCIe v4.0 (16 GT/s) x4, compatbile  x8 and x16
• Data rate per port 10 Mb/s /100 Mb/s/1 Gb/s /2,5 Gb/s / 5 Gb/s /10 Gb/s
• Connector 1 RJ45 10G Ethernet
• System support
  • Windows 10 /11
  • Windows Server 2022
  • RHEL/Centos7.3 /7.6 /7.9 /8.2 /8.3
  • Deepin 15.11 /20 /20.6
  • Ubuntu 16.04.3 /18.04.5
  • ZTE New Fulcrum 3.2.2 /5.0.5
  • Asianux Server v7.0
  • NeoKylin 7.6
  • Zhongke Fangde desktop operating system 4.0
  • Zhongke Fangde server operating system
  • Tongxin UOS 20
  • Emind OS
  • OpenKylin 0.7.5
  • iKuai router
• Protocol Support
  • IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
  • IEEE 802.3bz 2.5/5GBASE-T
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.1Q VLANs
  • IEEE 802.3x Full Duplex and flow contro
  • IEEE 802.3az – Energy Efficient Ethernet (EEE)

—
