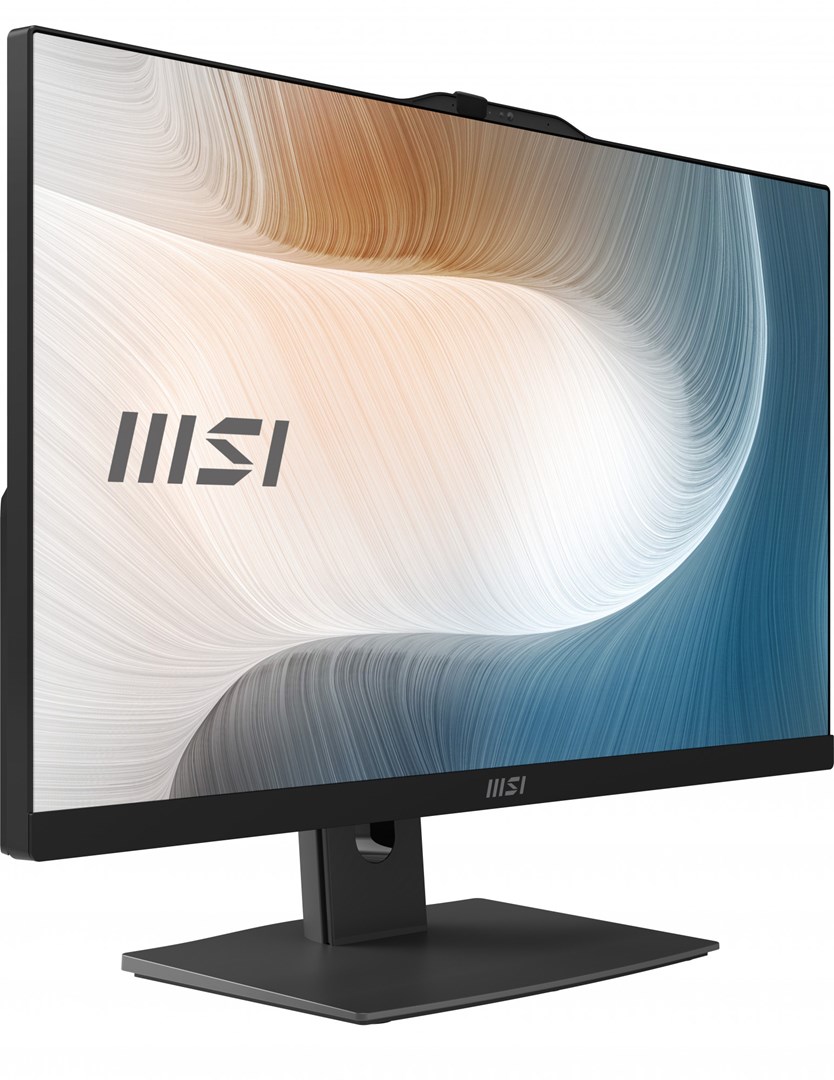

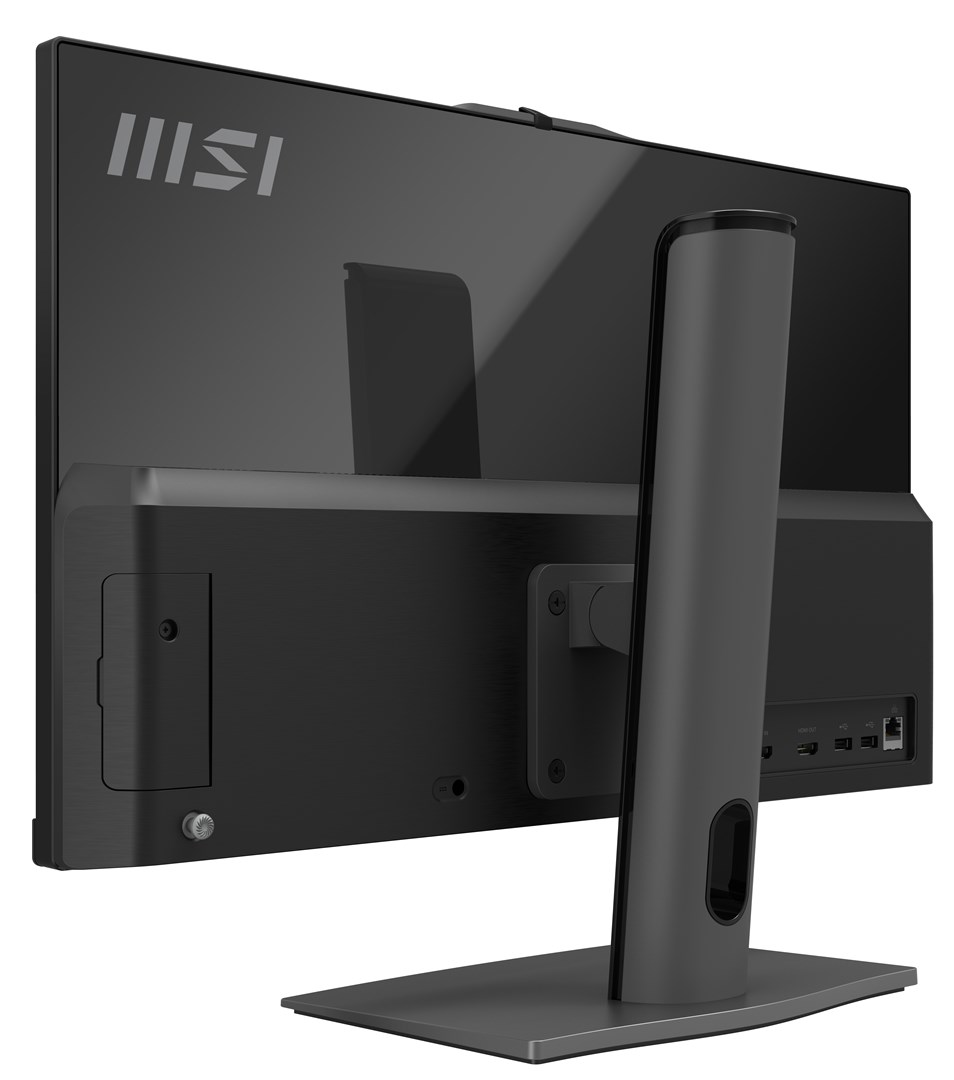

MSI AIO Modern AM242P 1M-2274EU Core 5 120U 23,8"IPS LED FHD Non-Touch AG 16GB SSD512 M.2 AX211 WiFi 6E W11Pro Black 3Y

Technical Specifications

Processor

Processor threads: 12

Processor cache type: Smart Cache

Processor model: 120U

Processor boost frequency: 5 GHz

Processor cores: 10

Processor cache: 12 MB

Processor family: Intel Core 5

Processor manufacturer: Intel

Performance-core base frequency: 1.4 GHz

Performance cores: 2

Graphics

Discrete graphics card model: Not available

On-board graphics card: Yes

On-board graphics card model: Intel® Graphics

Discrete graphics card: No

On-board graphics card family: Intel® Graphics

On-board GPU manufacturer: Intel

:

:

:

:

:

:

:

:

:

Memory

Internal memory type: DDR5-SDRAM

Maximum internal memory: 64 GB

Internal memory: 16 GB

Memory clock speed: 5600 MHz

Memory form factor: DIMM/SO-DIMM

Memory layout (slots x size): 1 x 16 GB

Memory slots: 2

Memory slots type: SO-DIMM

:

:

Design

Cable lock slot type: Kensington

Product colour: Black

Panel mounting interface: 75 x 75 mm

Cable lock slot: Yes

VESA mounting: Yes

:

:

:

:

:

Operational conditions

Operating temperature (T-T): 0 – 35 °C

Storage relative humidity (H-H): 0 – 90%

Storage temperature (T-T): -20 – 60 °C

Operating relative humidity (H-H): 0 – 85%

:

:

:

:

:

:

Weight & dimensions

Package height: 455 mm

Package depth: 222 mm

Package width: 652 mm

:

:

:

:

:

:

:

Network

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

Wi-Fi: Yes

WLAN controller manufacturer: Intel

Bluetooth version: 5.3

WLAN controller model: Intel Wi-Fi 6E AX211

:

:

Performance

Motherboard chipset: Intel SoC

Market positioning: Business

Product type: All-in-One PC

:

:

:

:

:

:

:

Display

Display diagonal: 60.5 cm (23.8")

Tilt angle range: -5 – 15°

HD type: Full HD

Display resolution: 1920 x 1080 pixels

Pixel pitch: 0.2745 x 0.2745 mm

Panel type: IPS

Display brightness: 250 cd/m²

Anti-glare screen: Yes

Tilt adjustment: Yes

Touchscreen: No

Software

Operating system installed: Windows 11 Pro

:

:

:

:

:

:

:

:

:

Audio

Audio chip: Realtek ALC256

RMS rated power: 5 W

Built-in speaker(s): Yes

Number of speakers: 2

:

:

:

:

:

:

Storage

Storage media: SSD

Total storage capacity: 512 GB

NVMe: Yes

SSD capacity: 512 GB

SSD form factor: M.2

Number of SSDs installed:

Number of SSDs installed: 1

Total SSDs capacity: 512 GB

:

:

:

:

:

:

:

:

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Combo headphone/mic port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Microphone in: Yes

HDMI ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

USB 2.0 ports quantity: 2

:

:

:

Camera

Built-in camera: Yes

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
