Ubiquiti UniFi Access Kit UA-SK

• UniFi Access Starter Kit contains everything you need to set up the next generation, state-of-the-art access control system for your business. Compatible with most Electric Bolts/Strikes and Magnetic Locks, the UniFi Access Starter Kit is easily installed with minimal effort and offers the convenience of the UniFi Access application, which allows you to easily manage users, visitors, schedules, and access policies. The UniFi Access Starter kit is powered by native PoE technology, PoE Switch is not included

Starter Kit Contents:

• 1x UniFi Access Hub
• 1x UniFi Access Reader Pro
• 1x UniFi Access Reader Lite
• 20x UniFi Access Cards

—

• Dimensions : 190 x 126 x 33 mm
• Weight : 457 g
• Enclosure Characteristics : Plastic Enclosure with Metal Mount Plate
• Mounting Options : DIN Rail

• Networking Interface : (4) 1 Gbps Ethernet
• Max. Power Consumption : 40W
• Power Method : 802.3bt PoE
• Input Terminals : REX – Request to Exit / REN – Request to Enter / REL – Remote Release / DPS – Door Position Sensor
• Dry Output Relay
• Lock : Rated 30VDC, up to 1A
• Aux : Rated 30VDC, up to 1A
• Powered Output Relay
• Lock : 12VDC, up to 1A
• Aux : 12VDC, up to 0.33A
• Line : 12VDC, up to 0.33A
• LEDs  : (1) System, (3) PoE Out, (4) Input / (2) Output Relays, (1) 12VDC Out
• Buttons :  Terminal Blocks, Reset
• Operating Temperature :  0 to 40° C
• Operating Humidity : 5 – 90% Noncondensing
• Certifications : CE, FCC, IC

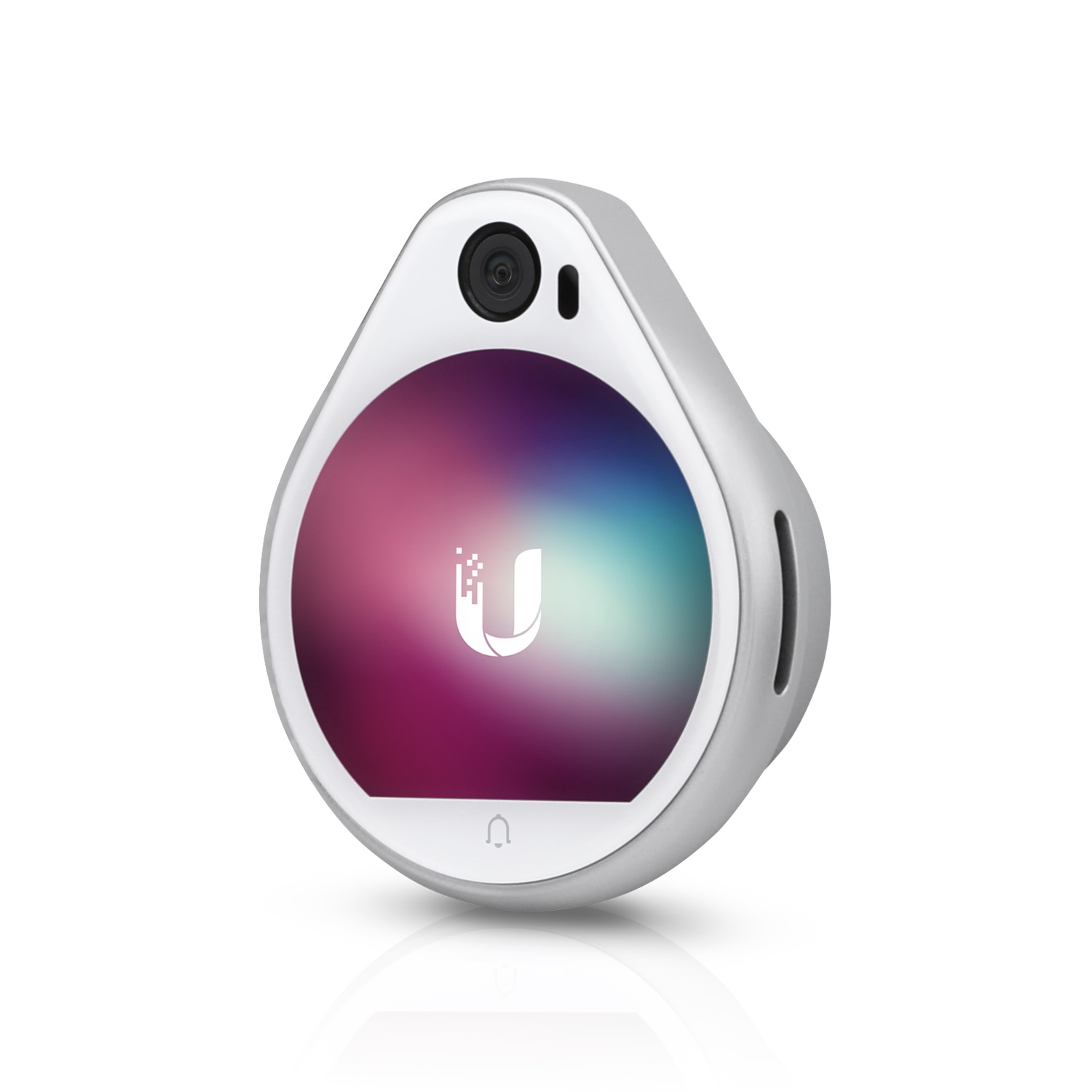

UA-PRO

Mechanical

• Dimensions : 73.40 x 62.28 x 26.55 mm
• Weight : 85 g
• Mounting Options : Wall-Mount or Alloy Clamp Holder
• The UA-Pro must be installed either indoors or under a roof eave outdoors

Hardware

• Networking Interface : 10/100 Mbps Ethernet
• Camera Viewing Angle : 147.5° ± 3°
• Max. Power Consumption : 8.3W
• Power Method : 802.3af PoE
• Button : (1) Reset
• IP Rating : IP54
• LEDs : Blue, White
• Connectivity : Ethernet, BLE 4.2
• Operating Temperature : -10 to 40° C
• Operating Humidity : 5 to 90% Noncondensing
• Certifications : CE, FCC, IC

• Read Range : <30 mm
• Standards : ISO 14443A, 14443B, 15693
• Technology : NFC Tag 1, 2, 3, 4, 5 / MIFARE Classic / MIFARE Plus
• MIFARE Ultralight / MIFARE DESFire EV1/EV2

UA-LITE

• Dimensions: 94.91 x 40.00 x 31.10 mm
• Weight : 65 g
• Mounting : Options Wall-Mount

• Networking Interface : 10/100 Mbps Ethernet
• Max. Power Consumption : 6W
• Power Method : 802.3af PoE
• IP Rating : IP54
• Button : (1) Reset
• LEDs : White/Blue
• Connectivity : Ethernet, BLE 4.1
• Operating Temperature : -40 to 40° C
• Operating Humidity : 5 to 90% Noncondensing
• Certifications : CE, FCC, IC

• Frequency : 13.56 MHz
• Read Range : <30 mm
• Standards : ISO 14443A, 14443B, 15693
• Technology : NFC Tag 1, 2, 3, 4, 5 / MIFARE Classic / MIFARE Plus / MIFARE Ultralight / MIFARE DESFire EV1/EV2

UA-CARD

• Dimensions : 85.6 x 53.98 x 0.84 mm
• Weight : 5 g

• Format : ISO 7810 ID-1

• Frequency : 13.56 MHz
• Technology : ISO/IEC 14443 Type A / MIFARE DESFire EV2 / UniFi Access Proprietary Security Protocol

—
