Ubiquiti UniFi Cloud Gateway MAX 5x 2.5GE, 512 GB NVMe SSD UCG-MAX

The UniFi Cloud Gateway Max is a powerful, compact multi-WAN gateway designed to act as the high-performance heart of a modern UniFi network. Featuring a massive jump in throughput and processing power, this device is specifically engineered for resellers looking to provide clients with a "single-box" solution that manages UniFi Network, Protect, Access, and Talk. With its integrated 512 GB NVMe SSD, it provides an immediate, high-speed storage foundation for UniFi Protect video surveillance right out of the box.

• 2.5 GbE Ecosystem: Equipped with five 2.5 GbE ports (1x WAN, 4x LAN) to support high-speed internet tiers and high-bandwidth internal networking.
• Integrated Storage: Includes a pre-installed 512 GB NVMe SSD for instant NVR capabilities; the storage is also user-replaceable for future scaling.
• Full UniFi Suite: Runs the entire UniFi application suite, managing over 30+ UniFi devices and 300+ clients.
• Advanced Security: Features an enterprise-grade firewall with IDS/IPS (1.5 Gbps routing), application-aware firewall rules, and signature-based threat detection.
• Compact Form Factor: Designed for desktop or shelf placement, featuring a 0.96" LCM status display for real-time monitoring.

—

• Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
• System Memory: 3 GB DDR4
• On-Board Storage: 512 GB NVMe SSD (Pre-installed / Replaceable)
• Management Interface: Ethernet, Bluetooth 5.1
• Networking Interfaces: (1) 2.5 GbE RJ45 WAN port / (4) 2.5 GbE RJ45 LAN ports
• IDS/IPS Throughput: 1.5 Gbps
• Power Method: USB type-C (5V DC/5A adapter included)
• Supported Voltage Range: 100–240V AC
• Max. Power Consumption: 16.1W
• Display: 0.96" OLED status display

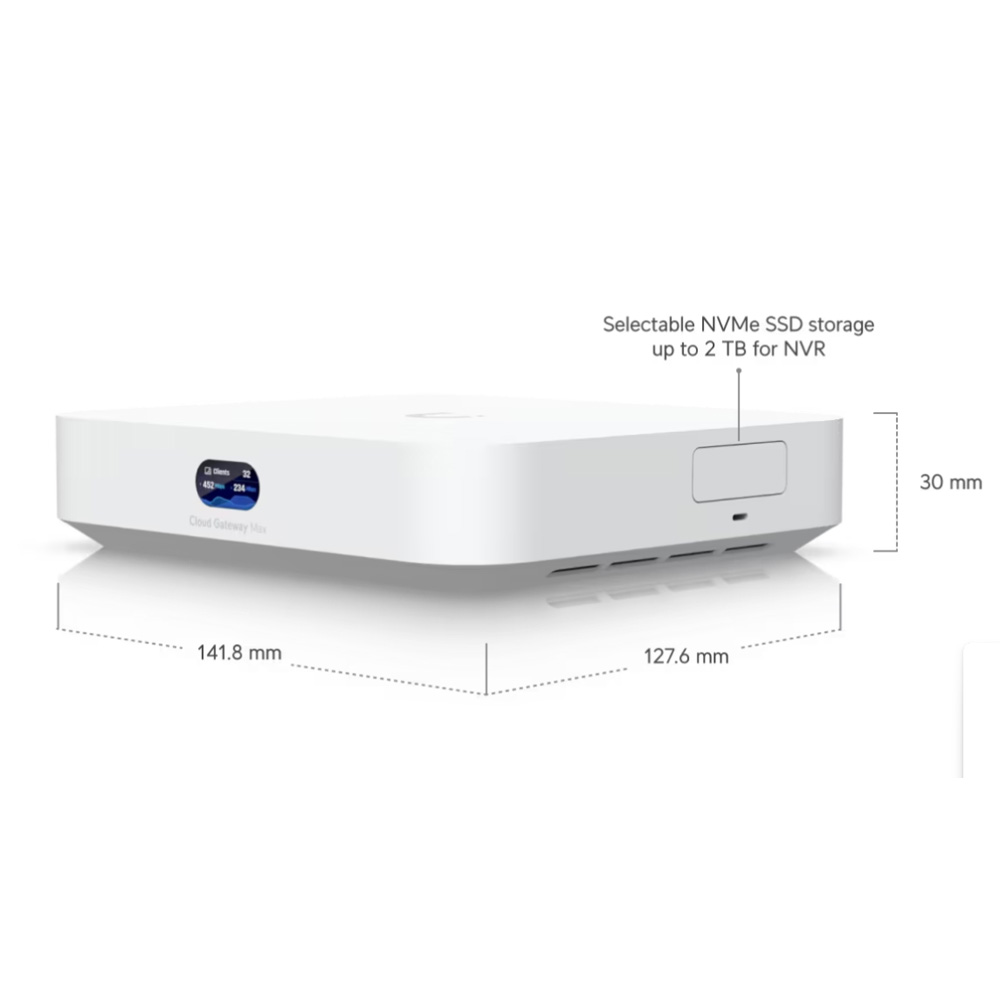

• Dimensions: 141.8 x 127.6 x 30 mm
• Weight: 520 g
• Operating Temperature: -10 to 40° C
• Certifications: CE, FCC, IC

—
