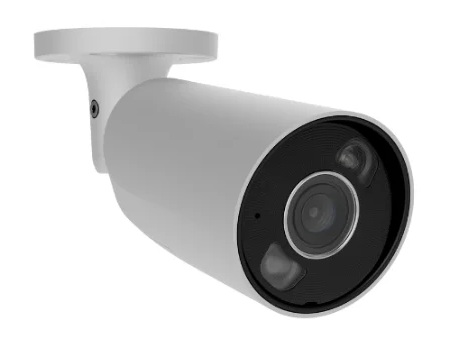

AJAX SURVEILLANCE IP 5MP 2.8mm HL Hybrid Illumination BulletCam

• AI-powered surveillance with hybrid illumination for color clarity
• Flawless integration into any environment
• Full-color visibility, even in the dark
• IR illumination range: up to 50 m
• White light illumination range: up to 50 m
• Tailored lens for any scene
• Balanced lighting in every frame
• Camera empowered by AI
• Precise video recording with built-in motion detection
• Complete awareness with a customizable video wall
• Smooth archive search
• Integrated system. Synchronized response.
• Siren activation upon detection
• Passwordless authentication is key
• Protect sensitive areas with privacy zones
• Rapid and encrypted data transfer
• Easy integration through ONVIF and RTSP

—

Camera

• Image sensor : 5 MP CMOS / 1/2.8" type
• Lens focal length : 2.8 mm
• Maximum aperture : f/1.6
• Lens iris type : fixed
• Lens focal type : fixed
• Field of view : horizontal: 110° / vertical: 58° / diagonal: 131°
• DORI distance : Detection: 65 m / Observation: 26 m / Recognition: 13 m / Identification: 6.5 m
• Maximum illumination distance : white LED: up to 50 m / IR LED: up to 50 m

Video

• Resolution : 5 MP (2880 × 1620) / 4 MP (2560 × 1440) / 3 MP (2304 × 1296) / 2 MP (1920 × 1080) / 0.6 MP (1024 × 576)
• Frame rate : up to 25 fps
• Image rotation : 0° / 180°
• Video codec : H.265 / H.264
• Dynamic range : 120 dB (True WDR)
• Storage : microSD / Ajax NVR

Audio

• Built-in microphone
• Audio codec : G711-ULAW / G711-ALAW / G726 / G722

Intelligent video analytics

• Motion detection
• AI object detection : People / Pets / Vehicles

Network

• Port : 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
• Protocol : HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / SNMP / RTSP / UDP / DHCP / DNS / DDNS
• Interoperability : ONVIF (Profile S/T*) (* Profile T is supported for basic streaming and configuration. Advanced features such as metadata, event handling, or edge recording may not be available)

Key features

• Video protocol : JetSparrow
• Visual verification of Ajax alarms
• Privacy

Sabotage protection

• mTLS
• Authentication
• Secure Boot
• OTA signature verification

Power supply

• PoE standard : 802.3at/af
• PoE power consumption : maximum: up to 7.3 W / average: up to 6.0 W
• Power supply unit : 12 V⎓ ± 20% / 1 А
• 12 V DC power consumption :maximum: up to 6.3 W / average: up to 5.1 W

Enclosure

• Dimensions : 198 × 76 × 76 mm
• Weight : 550 g
• Operating temperature range : from −30 °C to +60 °C
• Operating humidity : up to 90%
• Protection class : IP65, IK08

—
