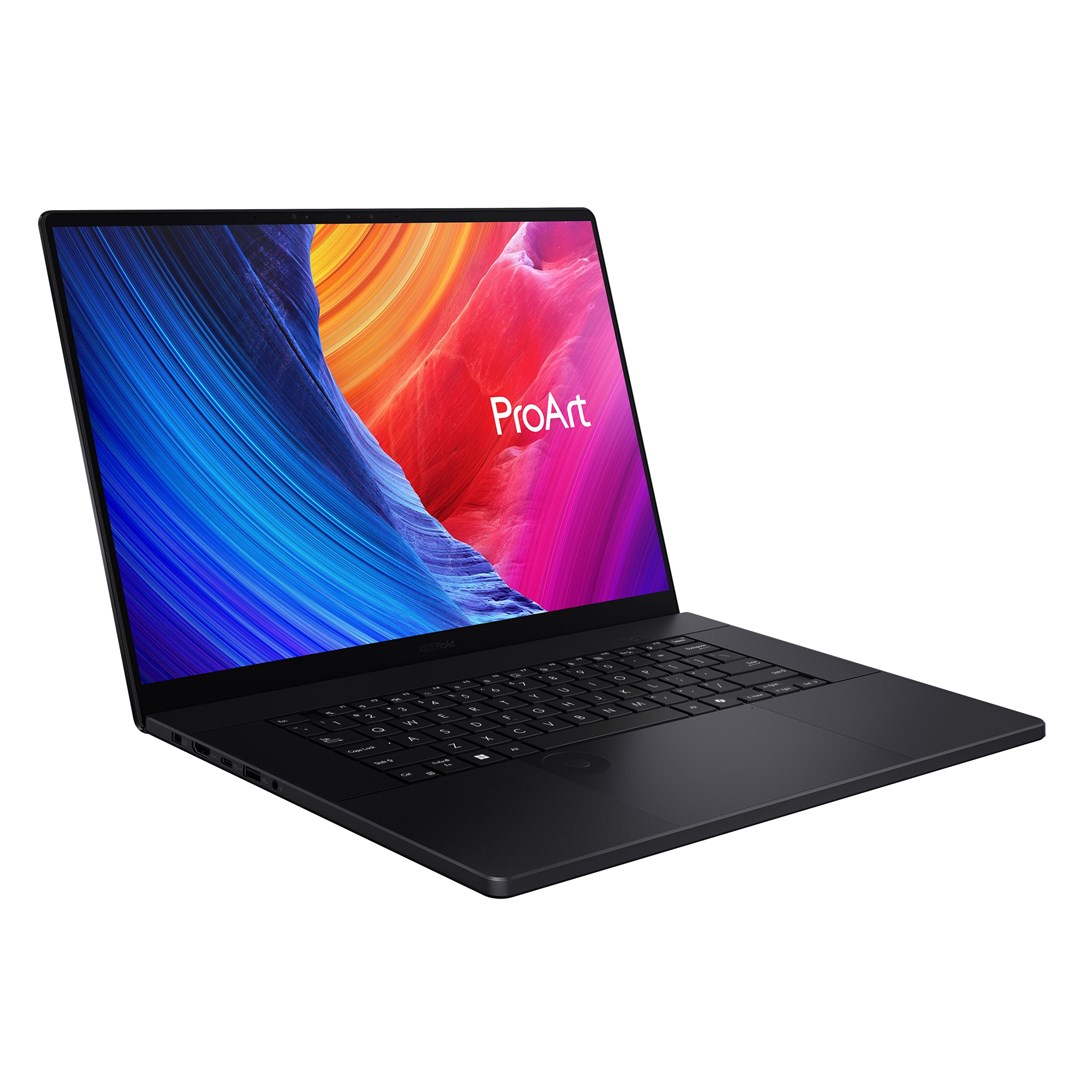

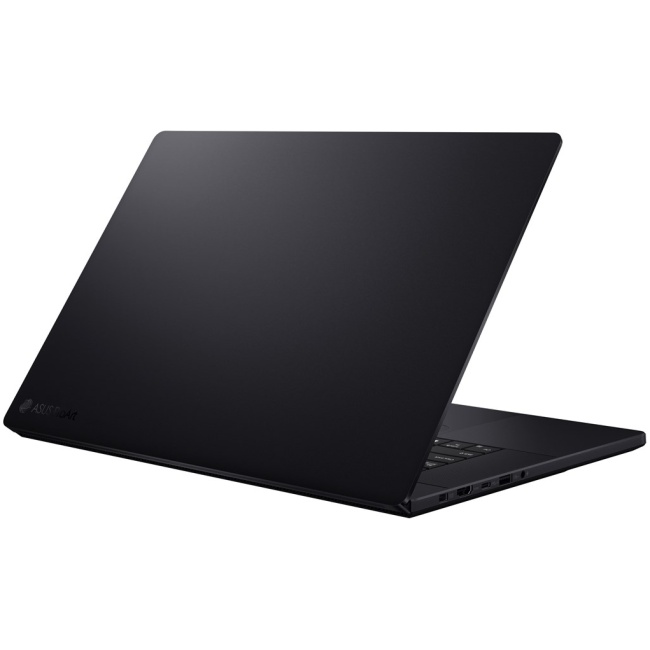

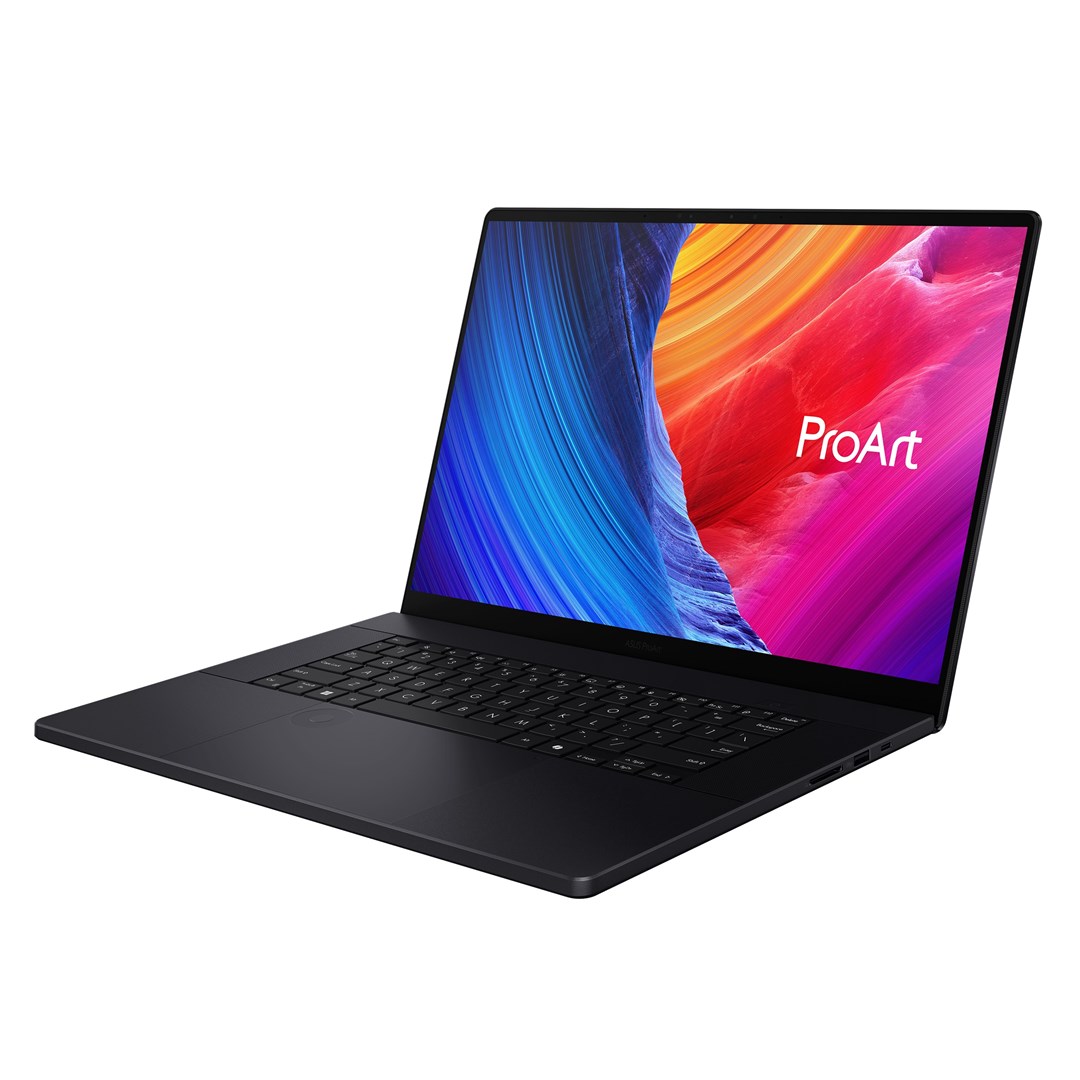

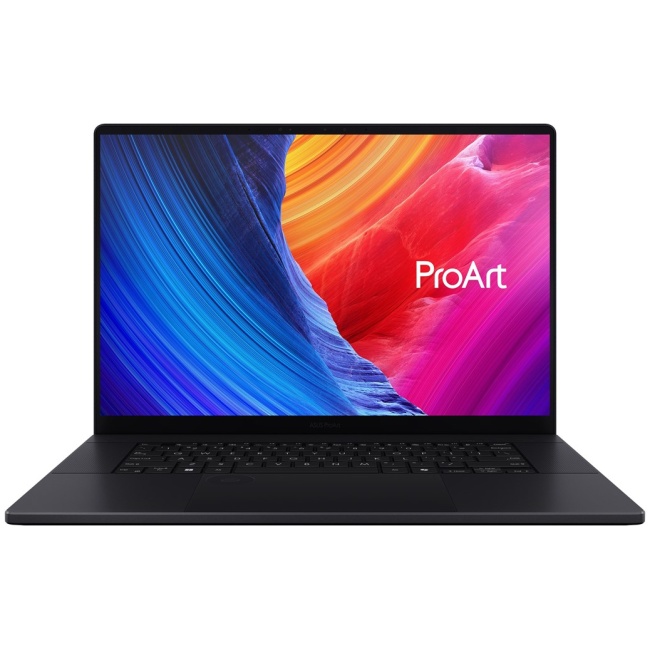

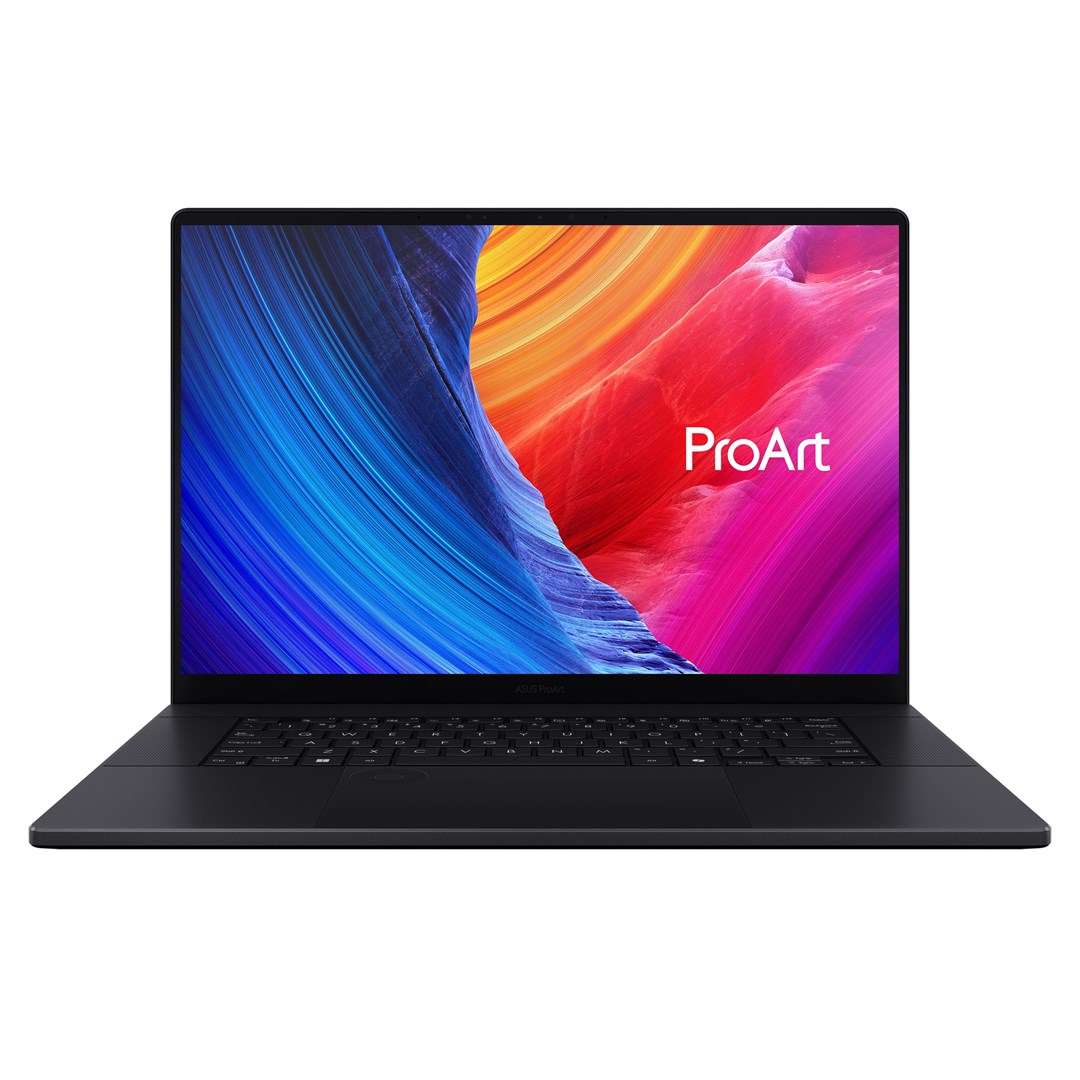

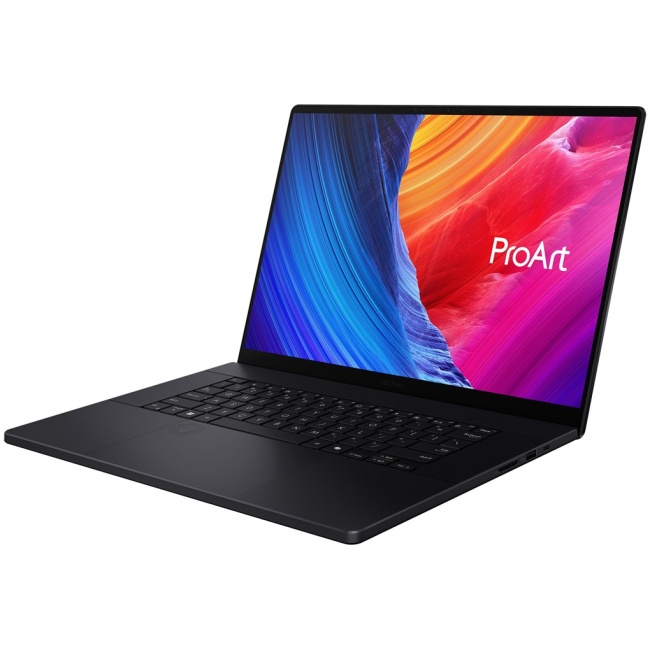

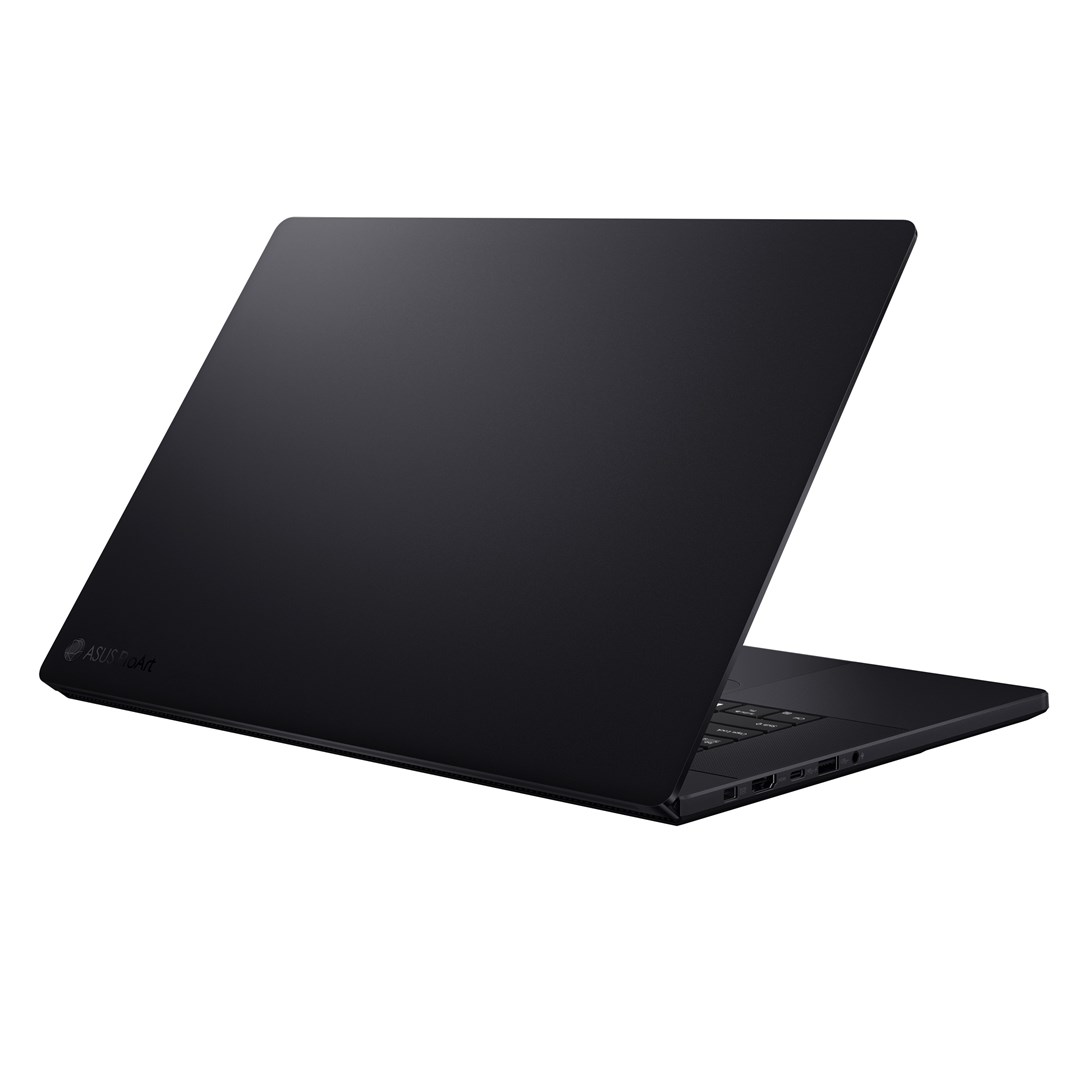

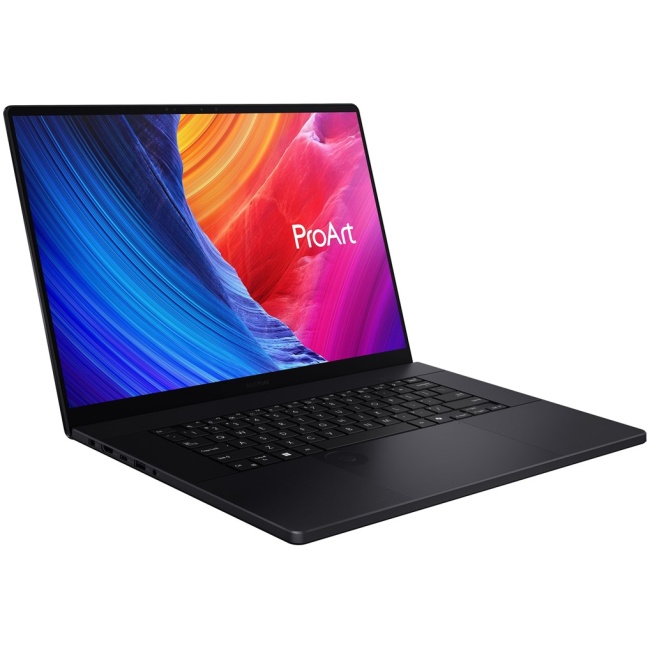

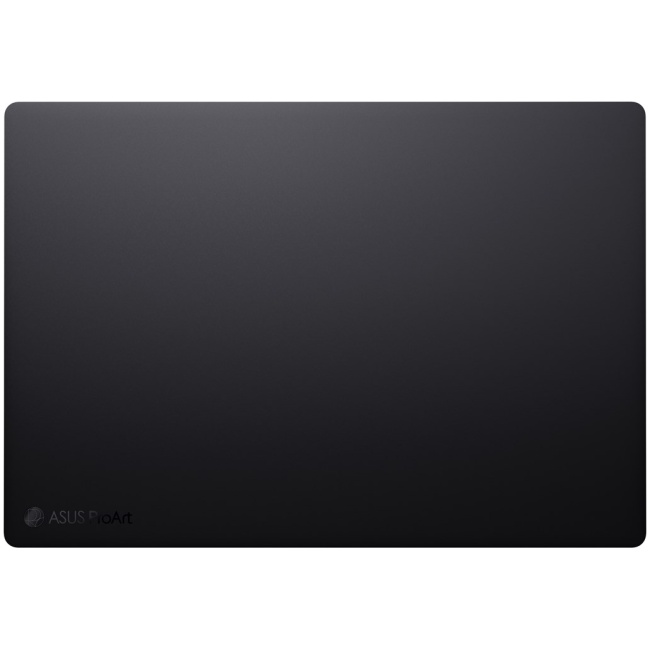

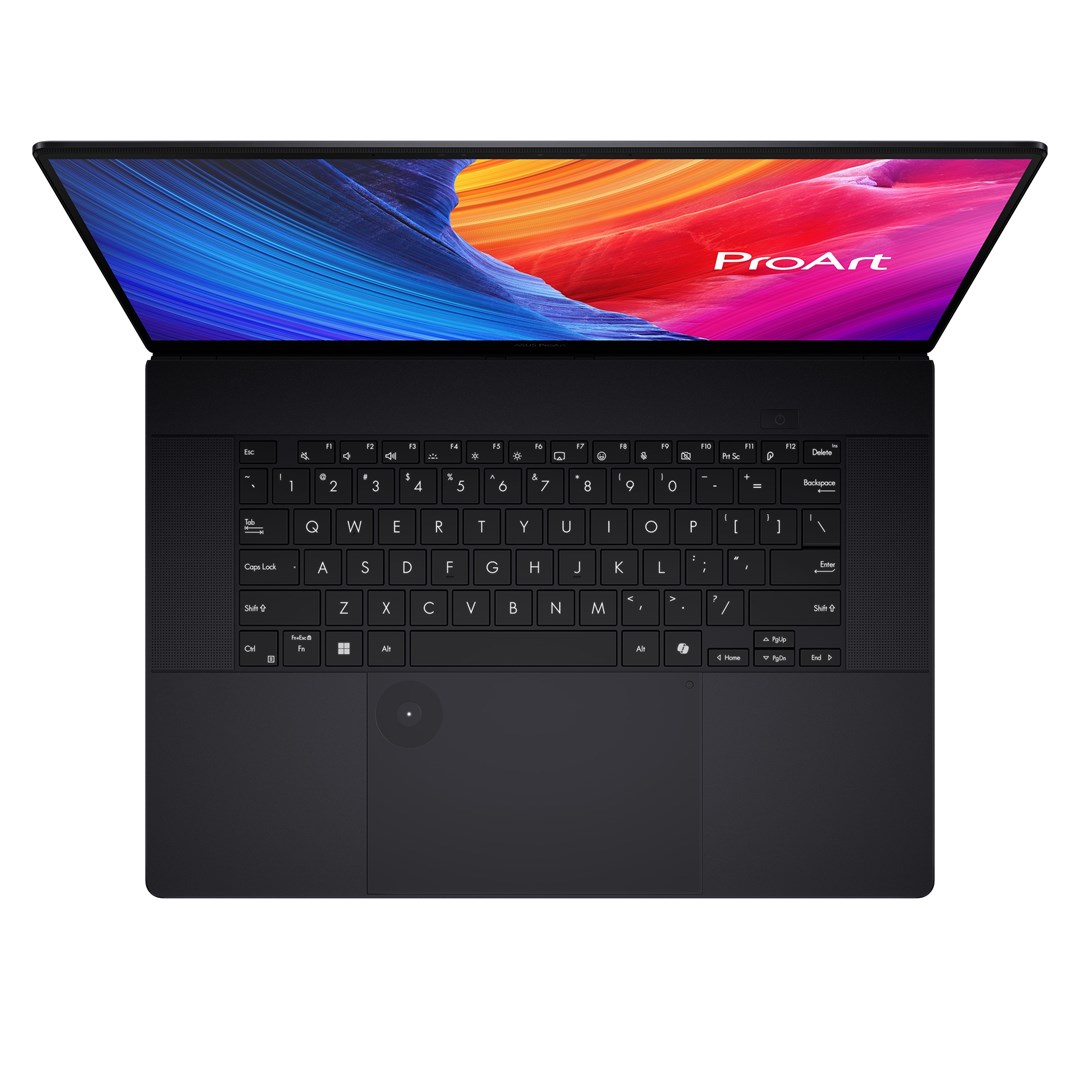

ASUS ProArt P16 H7606WP-SR229X Ryzen AI 9 HX 370 16.0" 3K OLED Touch 120Hz 500 nits AG 64GB LPDDR5X 2TB SSD GeForce RTX 5070 8GB Camera WLAN+BT FHD+IR 90Wh W11 Pro Nano Black

Technical Specifications

Processor

Processor family: AMD Ryzen AI 9 HX

Processor threads: 24

Processor manufacturer: AMD

Processor frequency: 2 GHz

Processor model: 370

Processor cores: 12

Processor boost frequency: 5.1 GHz

Processor cache type: L2 & L3

Processor generation: AMD Ryzen AI 300 Series

L3 cache: 24 MB

Graphics

Discrete graphics card model: NVIDIA GeForce RTX 5070

Discrete graphics card: Yes

On-board graphics card family: AMD Radeon

Discrete graphics card memory: 8 GB

On-board graphics card model: AMD Radeon 890M

On-board graphics card: Yes

On-board GPU manufacturer: AMD

Discrete GPU manufacturer: NVIDIA

Discrete graphics memory type: GDDR7

:

:

:

:

:

:

Memory

Maximum internal memory: 64 GB

Memory form factor: On-board

Internal memory: 64 GB

Internal memory type: LPDDR5x-SDRAM

:

:

:

:

:

:

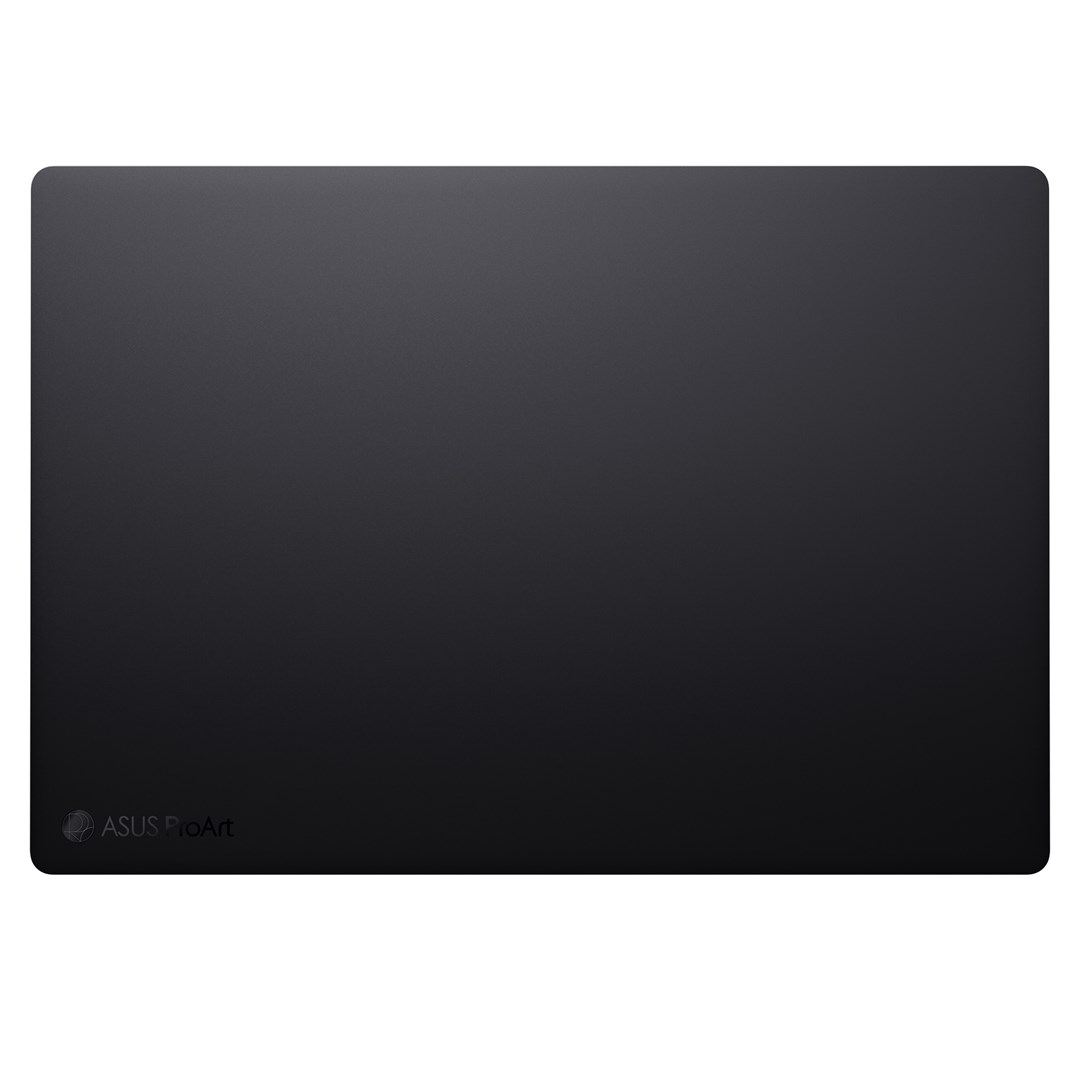

Design

Product colour: Black

Product type: Laptop

Colour name: Nano Black

:

:

:

:

:

:

:

Power

AC adapter output current: 10 A

AC adapter input voltage: 100 – 240 V

AC adapter power: 200 W

AC adapter frequency: 50 – 60 Hz

:

:

:

:

:

:

Security

Trusted Platform Module (TPM): Yes

Windows Hello: Yes

:

:

:

:

:

:

:

:

Weight & dimensions

Depth: 246.9 mm

Width: 354.9 mm

Weight: 1.85 kg

Height (rear): 1.73 cm

Height (front): 1.49 cm

:

:

:

:

:

Network

Bluetooth: Yes

Antenna type: 2×2

Wi-Fi standards: Wi-Fi 7 (802.11be)

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

:

:

:

:

:

Display

Display diagonal: 40.6 cm (16")

Screen to body ratio: 88%

Display resolution: 2880 x 1800 pixels

Display number of colours: 1.07 billion colours

Contrast ratio (typical): 1000000:1

Native aspect ratio: 16:10

Panel type: OLED

Display brightness: 500 cd/m²

Touchscreen: Yes

HD type: 3K

Software

Operating system architecture: 64-bit

Operating system installed: Windows 11 Pro

:

:

:

:

:

:

:

:

Audio

Built-in microphone: Yes

:

:

:

:

:

:

:

:

:

Certificates

Compliance certificates: REACH

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Storage

Total storage capacity: 2 TB

SSD form factor: M.2

Storage media: SSD

Total SSDs capacity: 2 TB

NVMe: Yes

SSD interface: PCI Express 4.0

:

:

:

:

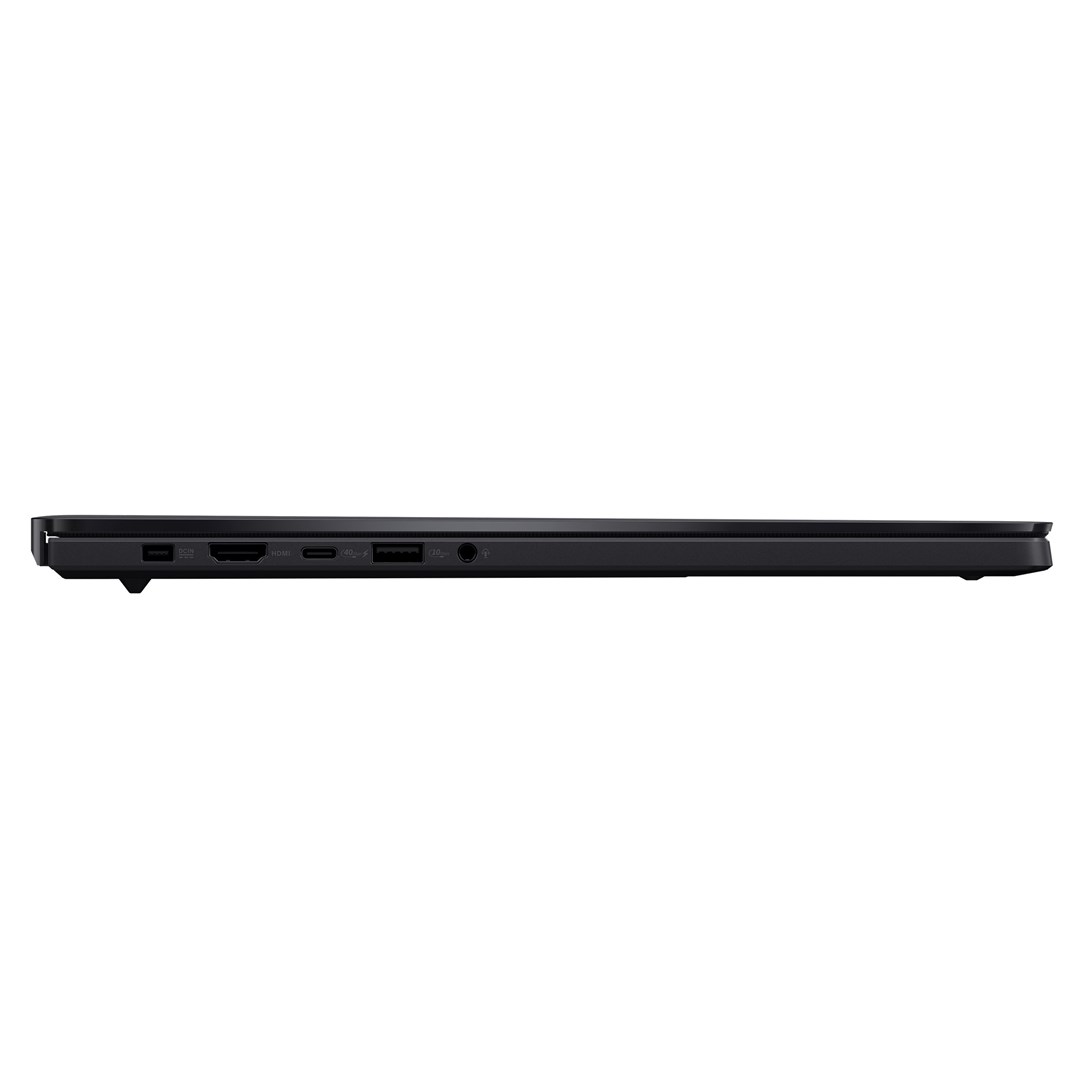

Ports & interfaces

HDMI version: 2.1 FRL

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Combo headphone/mic port: Yes

USB4 Gen 3×2 ports quantity: 1

:

:

:

:

Camera

Front camera: Yes

Infrared (IR) camera: Yes

Front camera HD type: Full HD

:

:

:

:

:

:

:

Battery

Battery technology: Lithium-Ion (Li-Ion)

Battery capacity: 90 Wh

Number of battery cells: 4

:

:

:

:

:

:

:

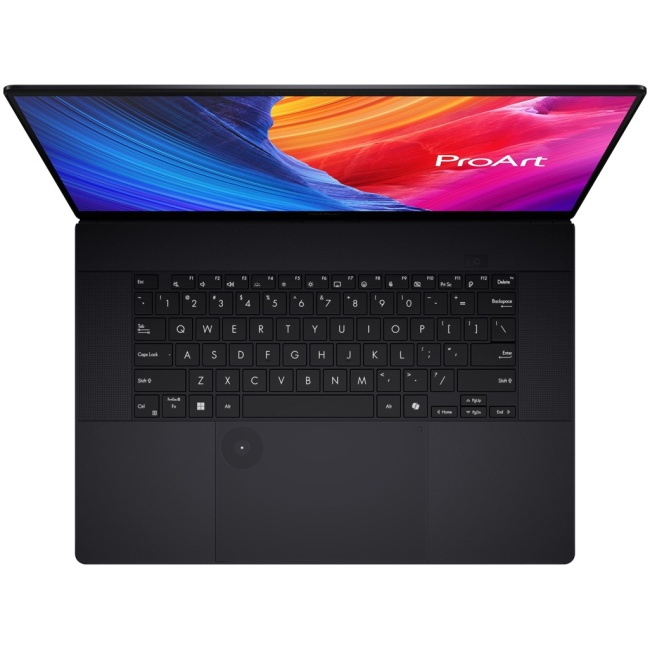

Keyboard

Pointing device: Touchpad

Keyboard backlit: Yes

:

:

:

:

:

:

:

:

Neural processor unit (NPU)

NPU performance up to: 50 TOPs

Neural processor unit (NPU): AMD Ryzen AI

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
