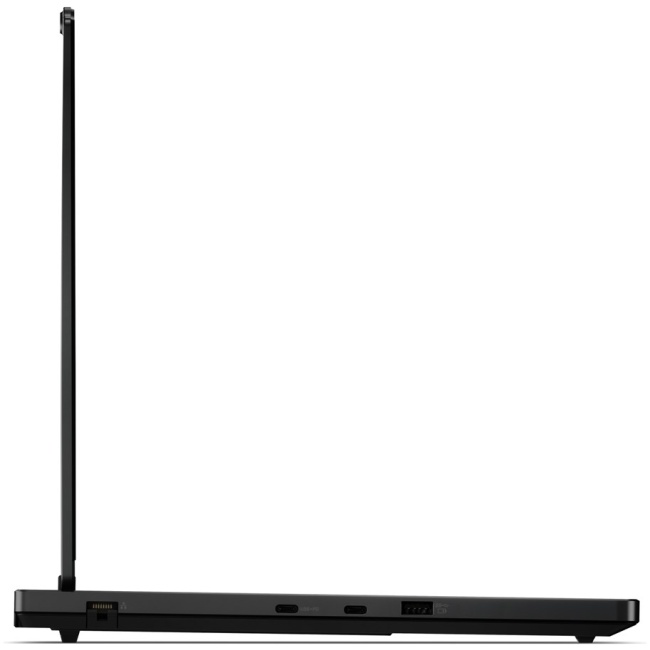

Lenovo Legion 5 15AHP10 Ryzen 7 260 15.1"WQXGA OLED 500nits 165Hz 16GB DDR5 5600 SSD1TB GeForce RTX 5050 8GB Cam 5Mpx 80Wh NoOS Eclipse Black

Technical Specifications

Processor

Processor model: 260

Processor boost frequency: 5.1 GHz

Processor cores: 8

Processor family: AMD Ryzen™ 7

Processor manufacturer: AMD

Processor frequency: 3.8 GHz

:

:

:

:

Graphics

Discrete graphics card memory: 8 GB

On-board graphics card model: AMD Radeon 780M

Discrete graphics card: Yes

On-board graphics card: Yes

Discrete graphics card model: NVIDIA® GeForce RTX™ 5050

On-board graphics card family: AMD Radeon

On-board GPU manufacturer: AMD

Discrete graphics memory type: GDDR7

:

:

:

:

:

:

:

Memory

Memory clock speed: 5600 MHz

Maximum internal memory: 64 GB

Internal memory: 16 GB

Memory form factor: SO-DIMM

Internal memory type: DDR5-SDRAM

Memory slots: 2x SO-DIMM

:

:

:

:

Design

Product colour: Black

Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Product type: Laptop

Colour name: Eclipse Black

:

:

:

:

:

:

Power

USB Type-C charging port: Yes

AC adapter power: 245 W

USB Power Delivery (USB PD): Yes

:

:

:

:

:

:

:

Security

Trusted Platform Module (TPM): Yes

Trusted Platform Module (TPM) version: 2.0

Fingerprint reader: No

:

:

:

:

:

:

:

Weight & dimensions

Width: 344.9 mm

Depth: 255.3 mm

Weight: 1.9 kg

Height (front): 2 cm

Height (rear): 2.15 cm

:

:

:

:

:

Network

Antenna type: 2×2

Ethernet LAN data rates: 100

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Ethernet LAN: Yes

Wi-Fi standards: Wi-Fi 7 (802.11be)

Bluetooth: Yes

WWAN: Not installed

Bluetooth version: 5.4

Mobile network connection: No

:

Performance

Motherboard chipset: AMD SoC

:

:

:

:

:

:

:

:

:

Packaging content

AC adapter included: Yes

:

:

:

:

:

:

:

:

:

Display

Display resolution: 2560 x 1600 pixels

LED backlight: Yes

Native aspect ratio: 16:10

Display diagonal: 38.4 cm (15.1")

HD type: WQXGA

High Dynamic Range (HDR) supported: Yes

Display brightness: 500 cd/m²

Touchscreen: No

Colour gamut: 100%

Panel type: OLED

Software

Operating system installed: No

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Audio

Built-in microphone: Yes

Audio chip: Realtek ALC3287

Number of built-in speakers: 2

Speaker power: 2 W

Number of microphones: 2

:

:

:

:

:

Storage

Total storage capacity: 1 TB

Storage media: SSD

Optical drive type: No

Card reader integrated: No

NVMe: Yes

SSD capacity: 1 TB

Number of SSDs installed: 1

Total SSDs capacity: 1 TB

SSD interface: PCI Express 4.0

SSD form factor: M.2

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI version: 2.1

Combo headphone/mic port: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB4 Gen 3×2 ports quantity: 1

USB Sleep-and-Charge: Yes

:

:

Camera

Front camera resolution (numeric): 5 MP

:

:

:

:

:

:

:

:

:

Battery

Battery capacity: 80 Wh

:

:

:

:

:

:

:

:

:

Keyboard

Pointing device: Touchpad

Numeric keypad: Yes

Keyboard backlit: Yes

Keyboard backlit colour: White

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
