Citronic P44800 2.1 4ohm Amplifier 2x400W + 800W Sub 172.248UK

2.1 power amplifier with 2 channels for mid-top cabinets and a single high power sub output with integral active crossover. Designed as a cost effective and efficient solution for bi-amplified sound systems where subs and top cabinets are run together from this single amplifier.

• Stereo full range output
• Mono summed sub output (can be full range)
• Active crossover with variable frequency

—

• Power rms @ 4 Ohms : 400 + 400 + 800W (sub)
• Power rms @ 8 Ohms : 250 + 250 + 500W (sub)
• Input impedance (balanced/unbalanced) : 40k Ohms / 20k Ohms

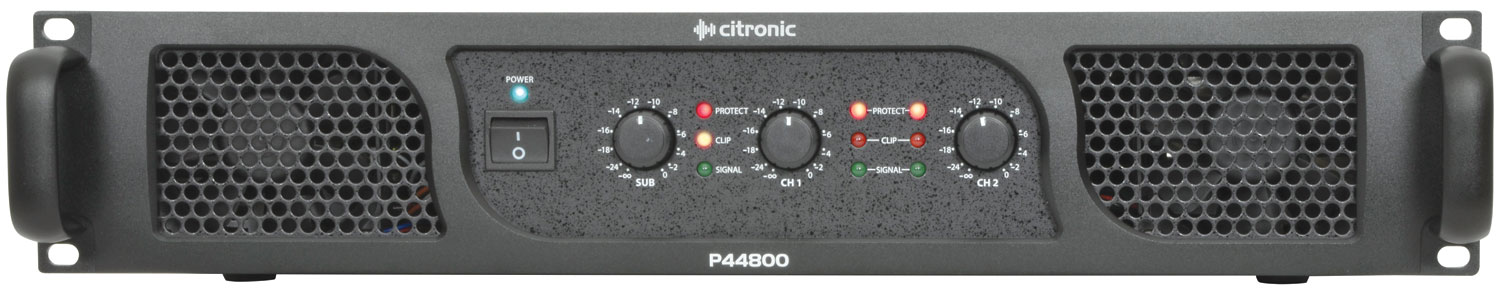

• Controls : 3 x channel level + crossover frequency

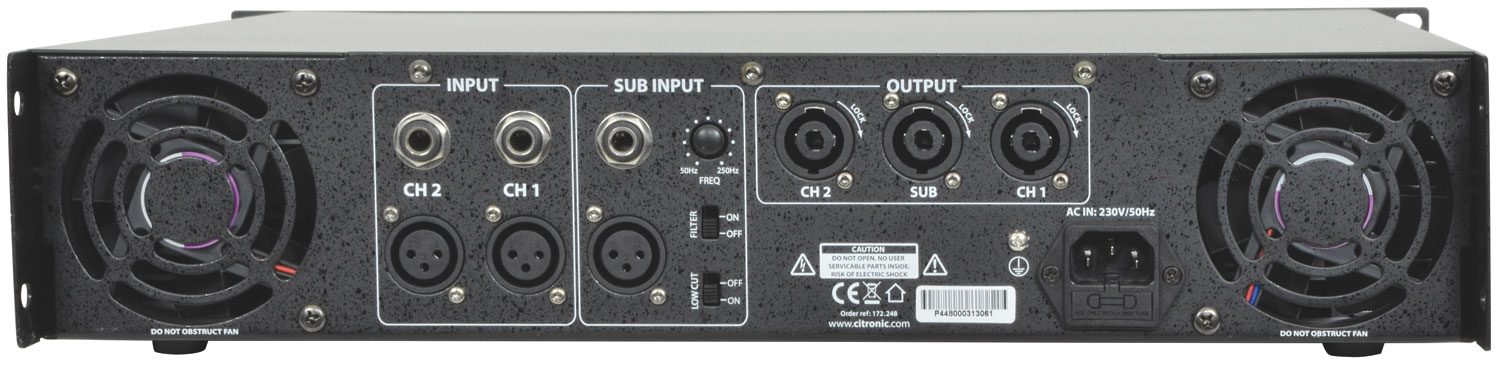

• Connections : 3 x XLRF, 3 x jack, 3 x SPK
• Cut-off frequency : 50 – 250Hz (12dB/oct)
• Damping factor : >250 (20-400Hz @ 8 Ohms)
• Slew rate : 6.5V/us
• Frequency response : 10Hz – 50kHz (-2dB)
• THD +N : 0.04%
• Signal to noise ratio : 86dB
• Low-cut filter : 30Hz fixed (12dB/oct)
• Fuse rating : F12A
• Power supply : 240Vac, 50Hz (IEC)
• Dimensions : 483 x 439 x 88mm
• Weight : 21kg

—
