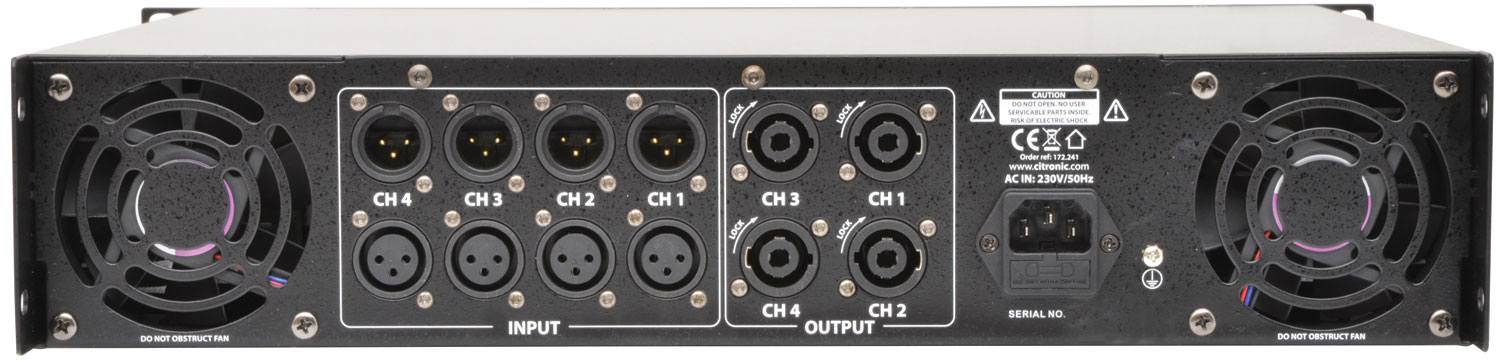

Citronic QP1600 4x400W@2ohms Quad Power Amplifier 172.241UK

Quad power amplifier with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.

• Fully balanced signal path
• Stable down to 2 Ohms
• 2U rack-mountable

—

• Speaker : output s4 x SPK connectors
• Power supply 230Vac, 50Hz (IEC)
• Input : line 4 x XLRF balanced
• Output : line 4 x XLRM (parallel from inputs)
• Input impedance 20k Ohms
• Frequency response 5Hz – 50kHz
• THD 0.05%
• Slew rate 40V/usec
• S/N ratio 103dB
• Controls 4 x channel gain
• Circuit protection Short-circuit, DC, overload, soft-start
• Dimensions 483 x 439 x 88mm
• Fuse rating F8A
• Power rms @ 8 Ohms 4 x 200W
• Power rms @ 4 Ohms 4 x 300W
• Power rms @ 2 Ohms 4 x 400W
• Weight 22kg

—
