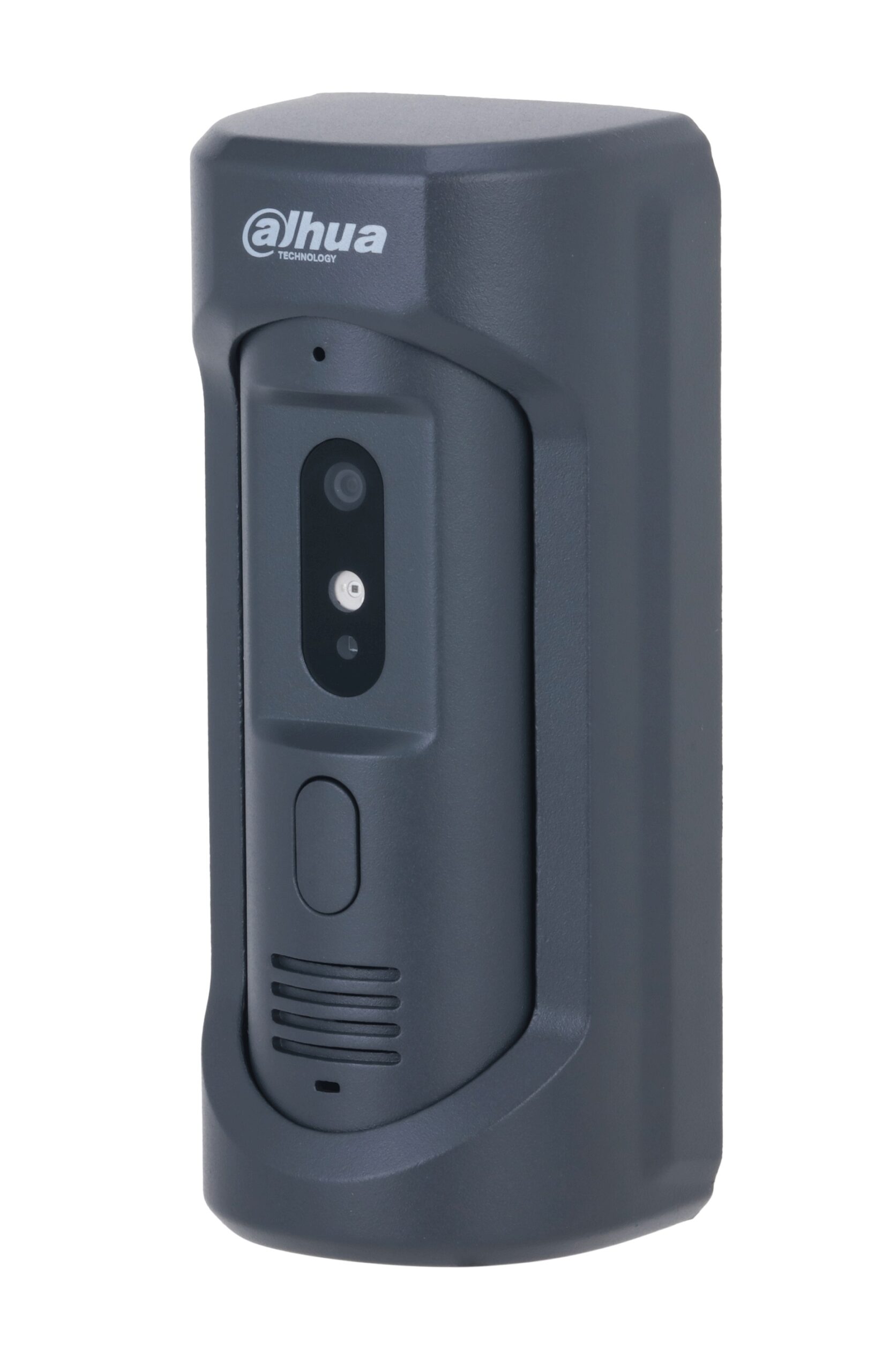

Dahua VD IP Doorphone Villa Camera VTO2101E-P-S2

• HD CMOS camera
• Zinc alloy panel, IP65 and IK10 rated
• ICR night vision and voice prompt
• Video and audio messaging
• TCP/IP, and SIP
• Surface mounted

—

System

• Main Processor : Embedded Processor
• Button Type : Mechanical
• Interoperability : ONVIF; CGI
• Network Protocol : RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF

Basic

• Camera : 1/2.8" 2-MP CMOS HD Camera
• Field of View : H: 80°; V: 40°; D: 90°
• WDR : 120 dB
• Noise Reduction : 3D NR; 2D NR
• Video Compression : H.264; H.265
• Video Resolution : Main stream: 720p, WVGA, D1, and CIF; / Sub stream: 1080p, WVGA, D1, QVGA, and CIF
• Video Frame Rate
• PAL: 25 fps : NTSC: 30 fps
• Video Bit Rate : 768 kbps–8 Mbps
• Light Compensation : Auto IR
• Day/Night : Auto(ICR)/Color/B/W; Color/B/W
• Audio Compression : G.711a; G.711u; PCM
• Audio Input : 1
• Audio Output : Built-in speaker
• Audio Mode : Two-way audio
• Audio Enhancement : Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction
• Audio Bit Rate : 16 kHz, 16 bit

Function

• Communication Mode : Full digital
• Unlock Mode : Remote
• Leave Videos : Yes (SD card inserted in VTH is needed)
• Web Configuration : Yes

Performance

Casing : Zinc alloy

Port

• RS-485 : 1
• Alarm Input : 1
• Exit Button : 1
• Lock Control : 1
• Network Port : 1 × RJ-45 10/100 Mbps Ethernet port

Alarm

• Tamper Alarm : Yes

General

• Appearance color : Grey
• Power Supply : 12 VDC, 1 A; / Standard PoE
• Power Adapter  : Optional
• Installation : Surface Mount
• Certifications : CE; FCC
• Accessory : Included: Alarm power ribbon cable, rain cover
• Product Dimensions : 163.0 mm × 73.0 mm × 55.0 mm
• Protection : IP65 IK10
• Operating Temperature : –40 °C to +60 °C
• Operating Humidity : 10%–90% (RH), non-condensing
• Operating Altitude : 0 m–3,000 m
• Power Consumption : ≤ 2.5 W (standby), ≤ 5 W (working)
• Gross Weight : 0.8 kg
• Net Weight : 0.3 kg

—
