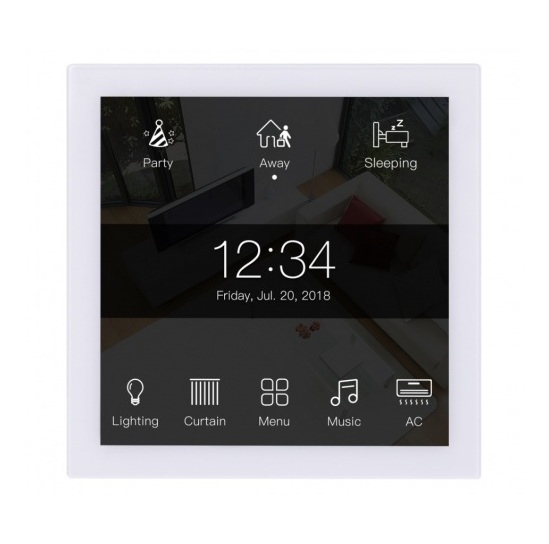

HDL GRANITE Panel White with 4” Touch Display, Built In Temperature, Humidity & Proximity Sensor

• 4-inch LCD screen and Aluminum plate
• Control lighting, curtain, scene, air conditioning, floor heating, music and fresh air
• Built-in temperature sensor, humidity sensor and proximity sensor

Powered by HDL-M/PCI2PE.1

—

• Built-in temperature and humidity sensor, proximity sensor
• Adjustable LCD backlight
• LCD screen automatically wakes up
• 3 scene quick control buttons, 4 function shortcut buttons, and 1 main menu button are available in the main interface
• Standby display interface: displays date and time, and supports periodic switching between 2 backup pages.
• Dedicated pages for lights, curtains, decorations, AC / FCU, underfloor heating, music and fresh air controls
• Up to 20 control buttons can be set on the lighting page. Control types: Switch, dimmer and RGB.
• Curtain control: Up to 8 curtains are supported. Support open / close, stop, percentage adjustment
• Scene control: up to 20 scenes supported
• AC / FCU control: supports switching, temperature control, fan speed control, mode switching up to 3 AC / FCU
• Underfloor heating control: supports switching, temperature control, floor heating control switching up to 8
• Underfloor heating modes: Normal, Day, Night, Outdoor, Timer
• Music playback: Supports 1 music player

—
