Or use our installment options below. Available only for orders over €200.

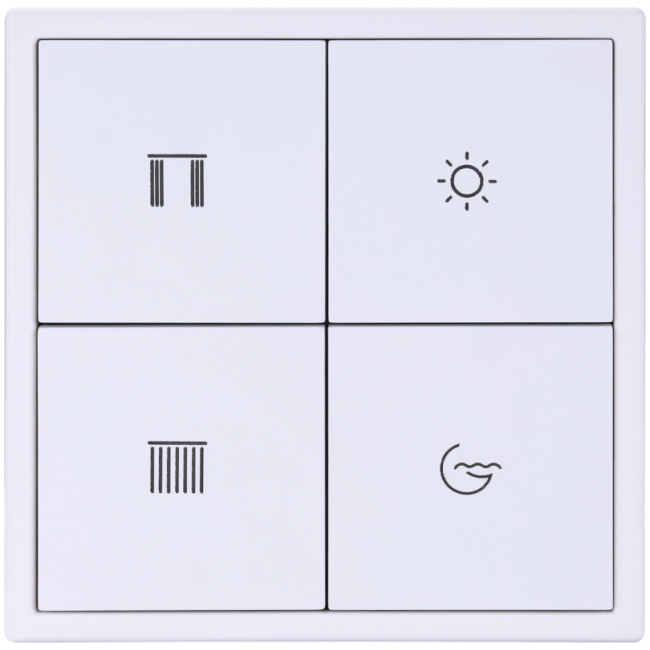

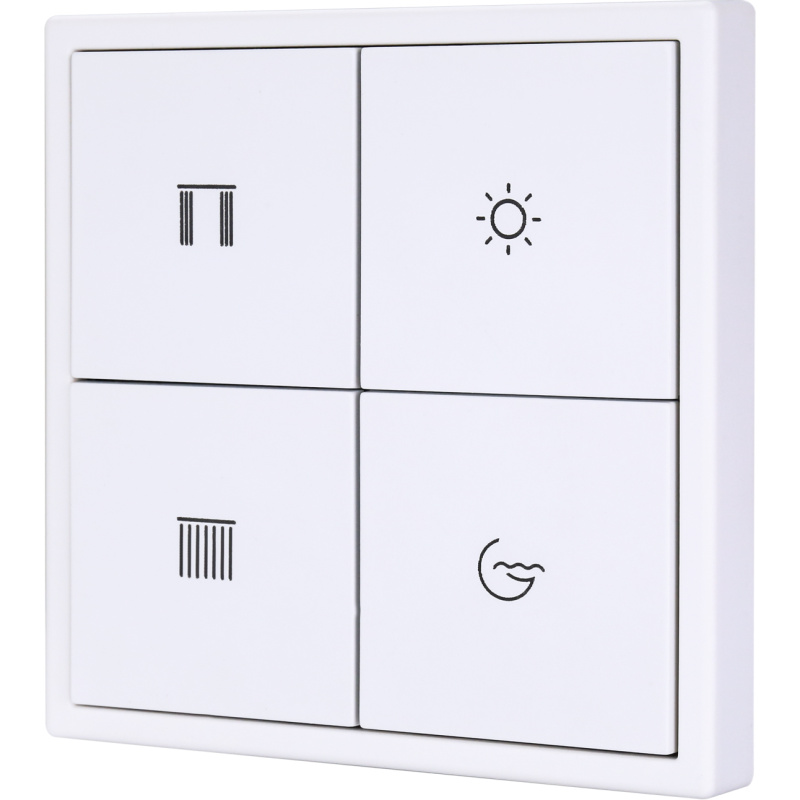

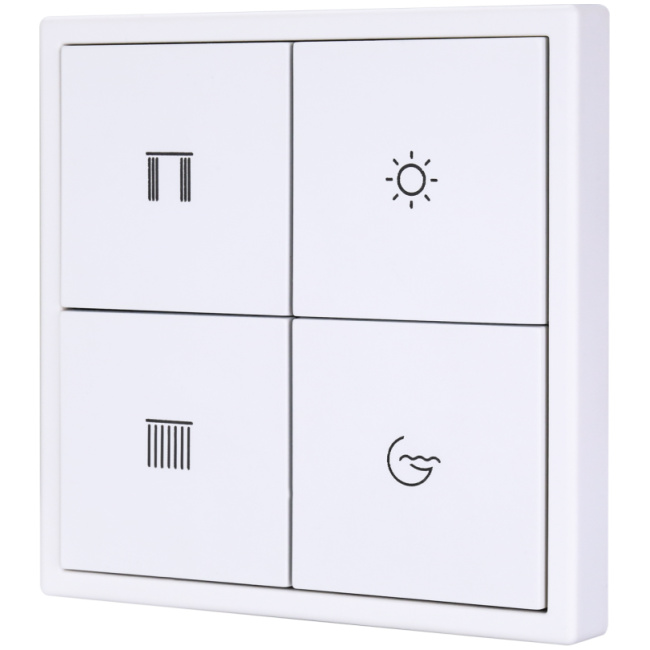

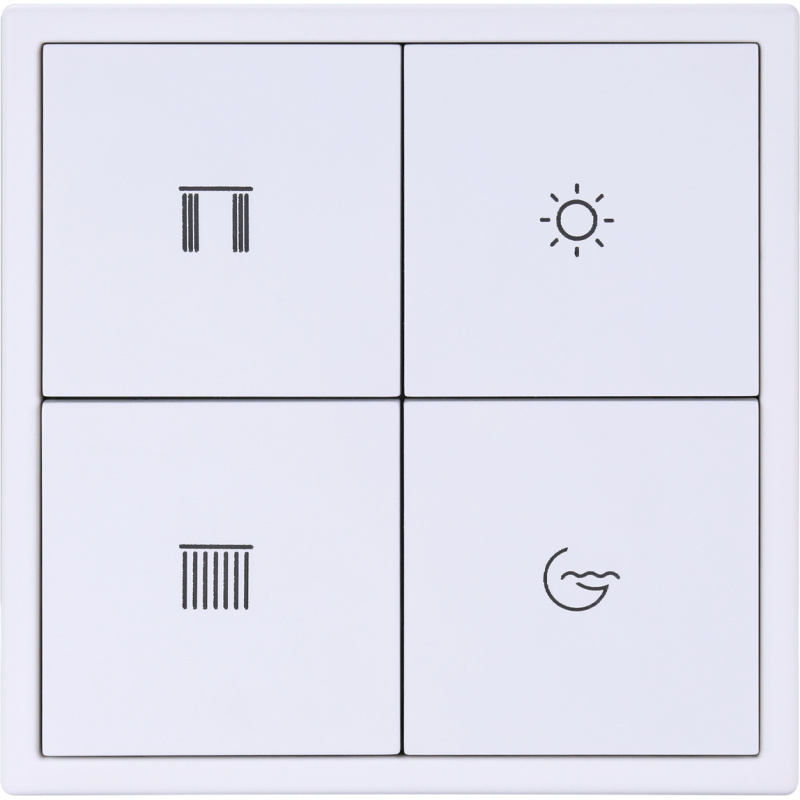

- Tile Series 4 button smart panel 2.1 is suitable for control lighting, curtain and scene
- Built-in temperature sensor and proximity sensor, with LED backlight, customizable icon
- Frame and power supply is NOT included
what is needed :
- Power supply : MPFPIT-1P-KT.18 (Order Code : 29016)
- Base Frame : (Order Code : 29017)
—
Technical Data
- Rated voltage : 30V DC
- Rated current : 8 Buttons：30mA/30V DC
- Communication protocol : KNX
- Cable diameterof Busproterminal : 0.6-0.8mm
- Workingtemperature : -5℃~45℃
- Working relative humidity : ≤90%RH, non-condensed
- Storage temperature : -20℃~60℃
- Storage relative humidity : ≤93%
- Dimensions : (W X H X D) 86×86×10.5(mm)
—
