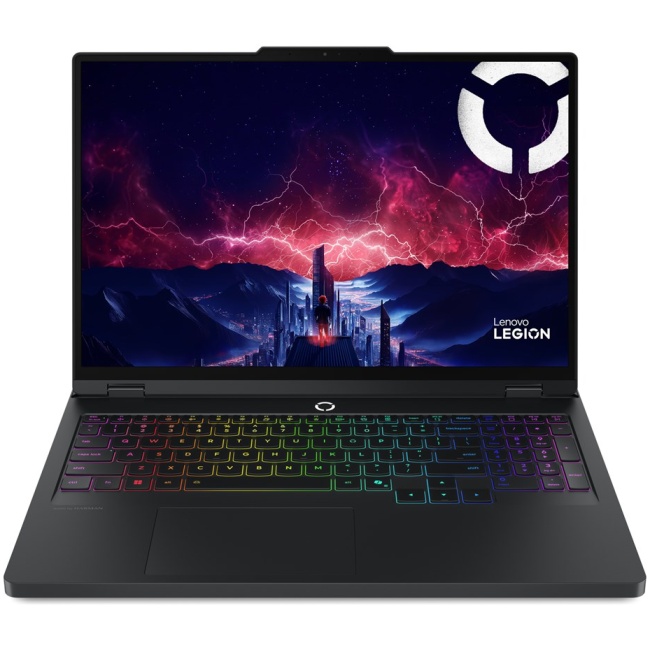

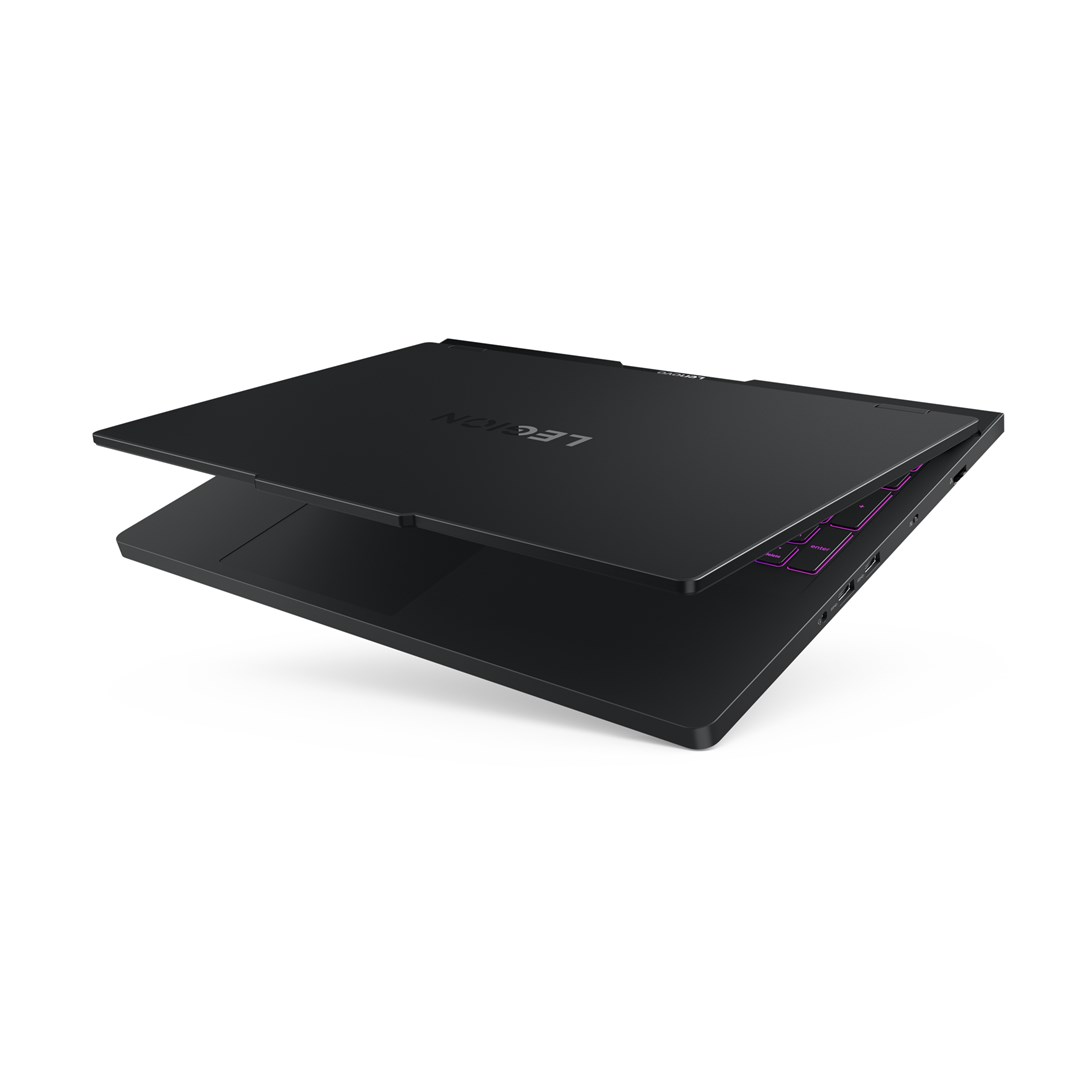

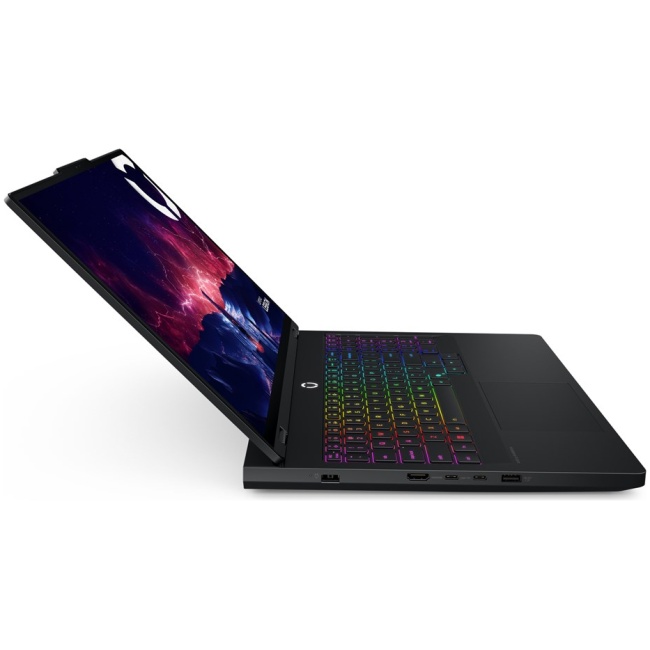

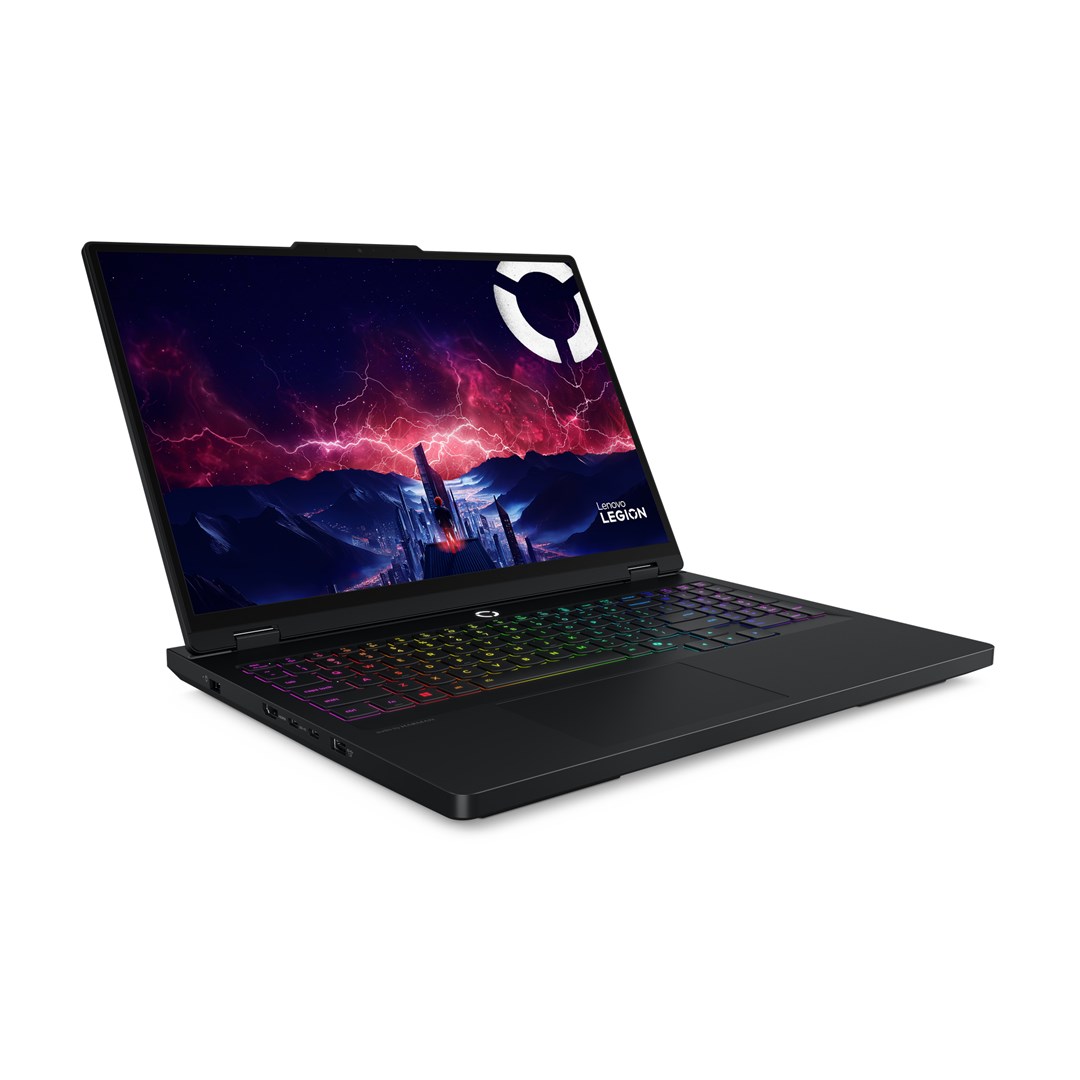

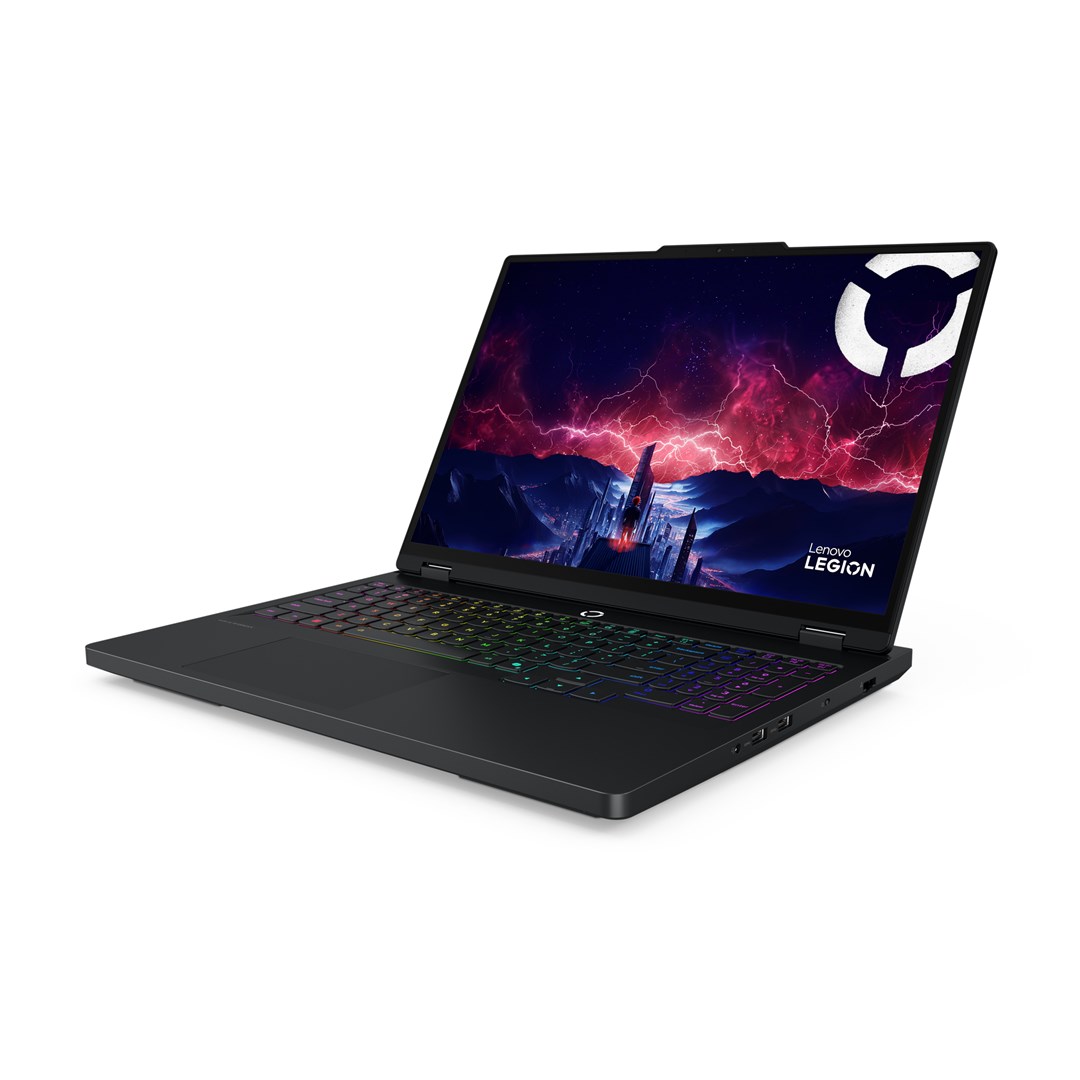

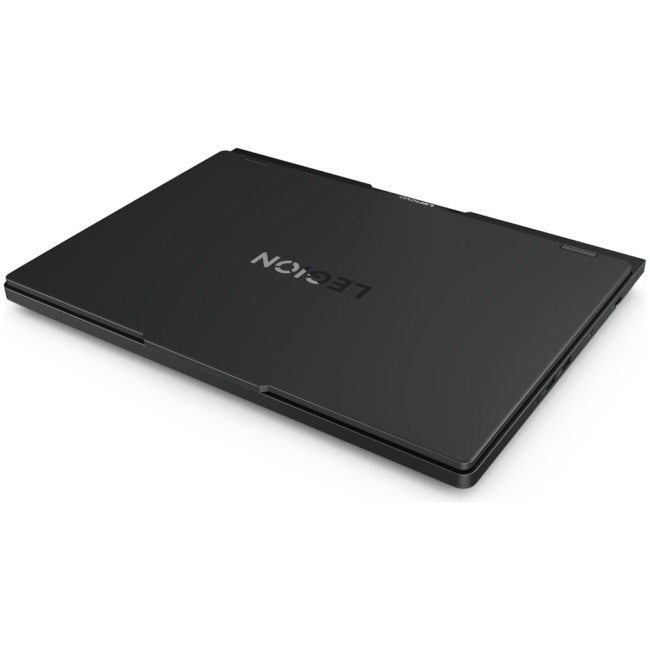

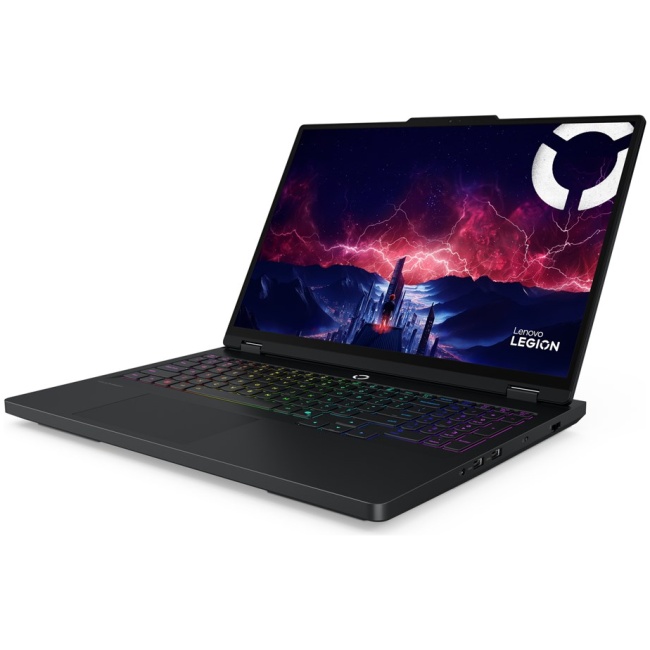

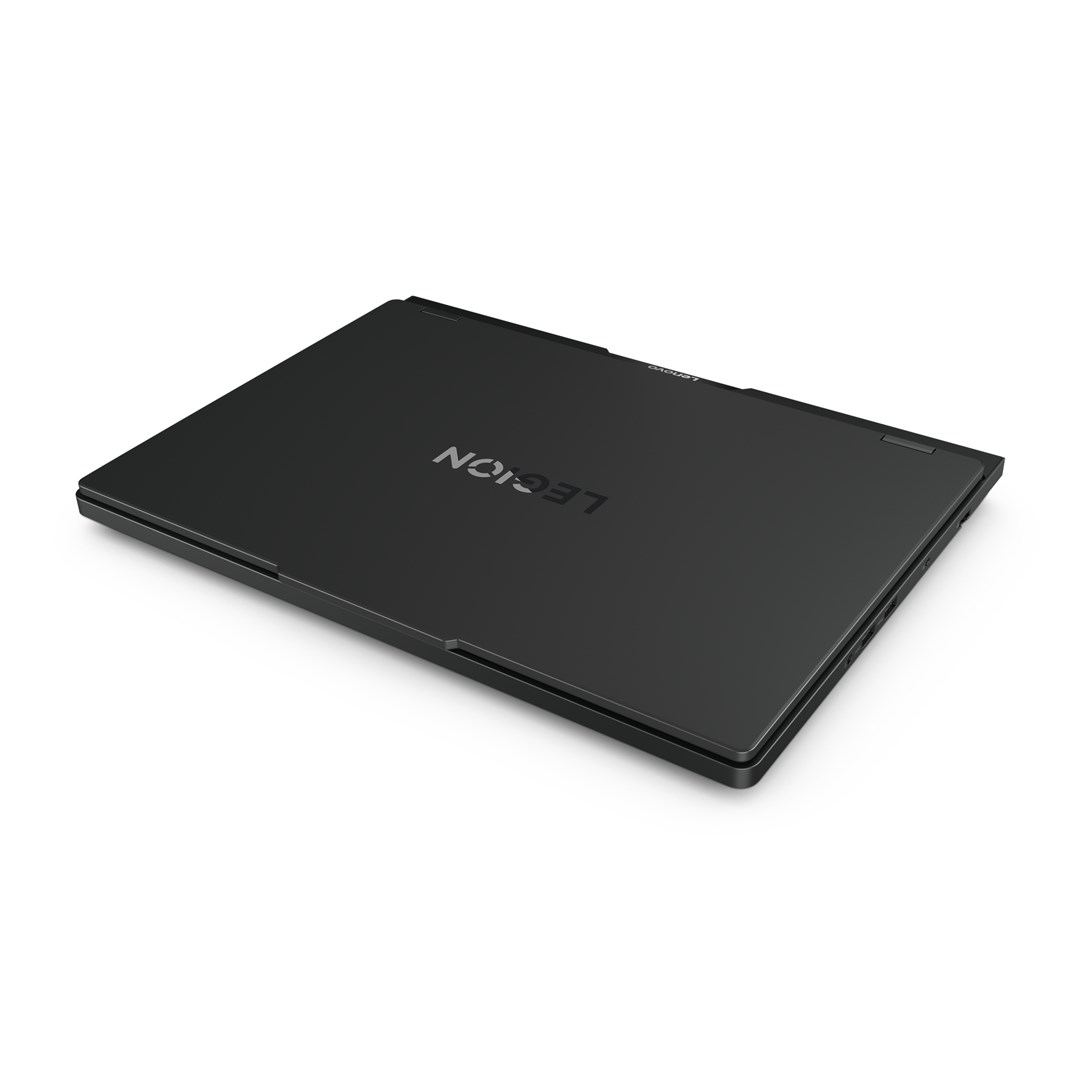

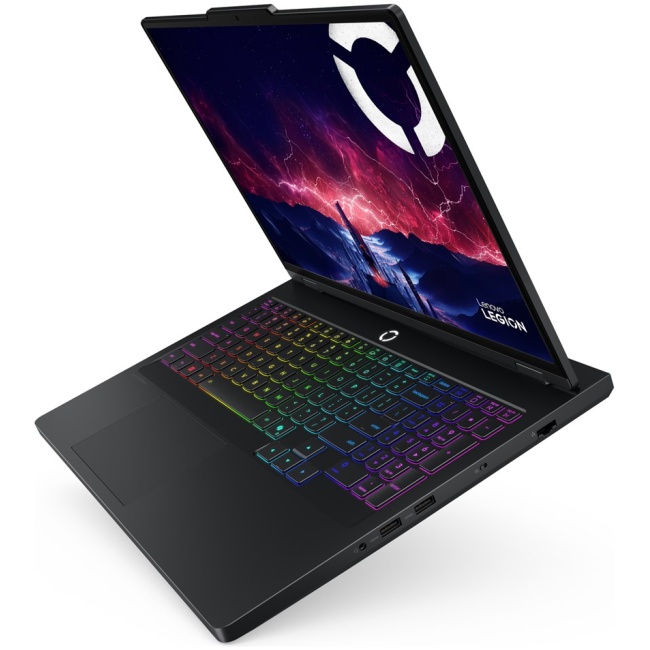

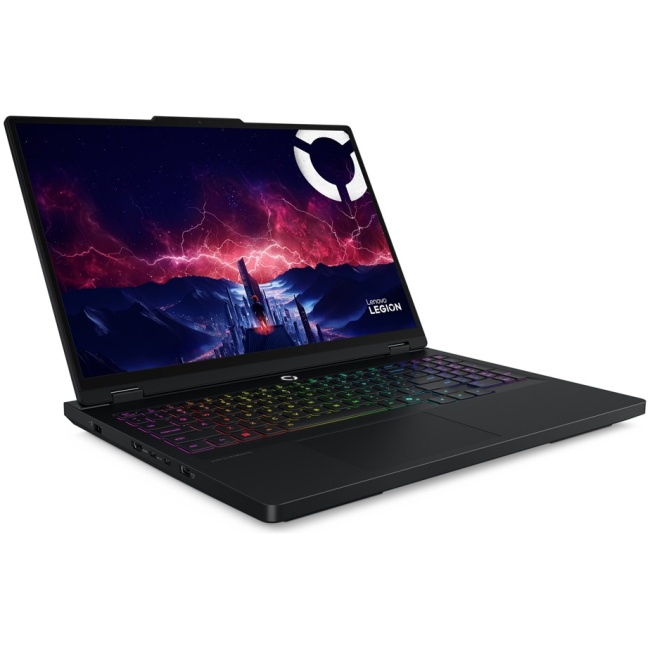

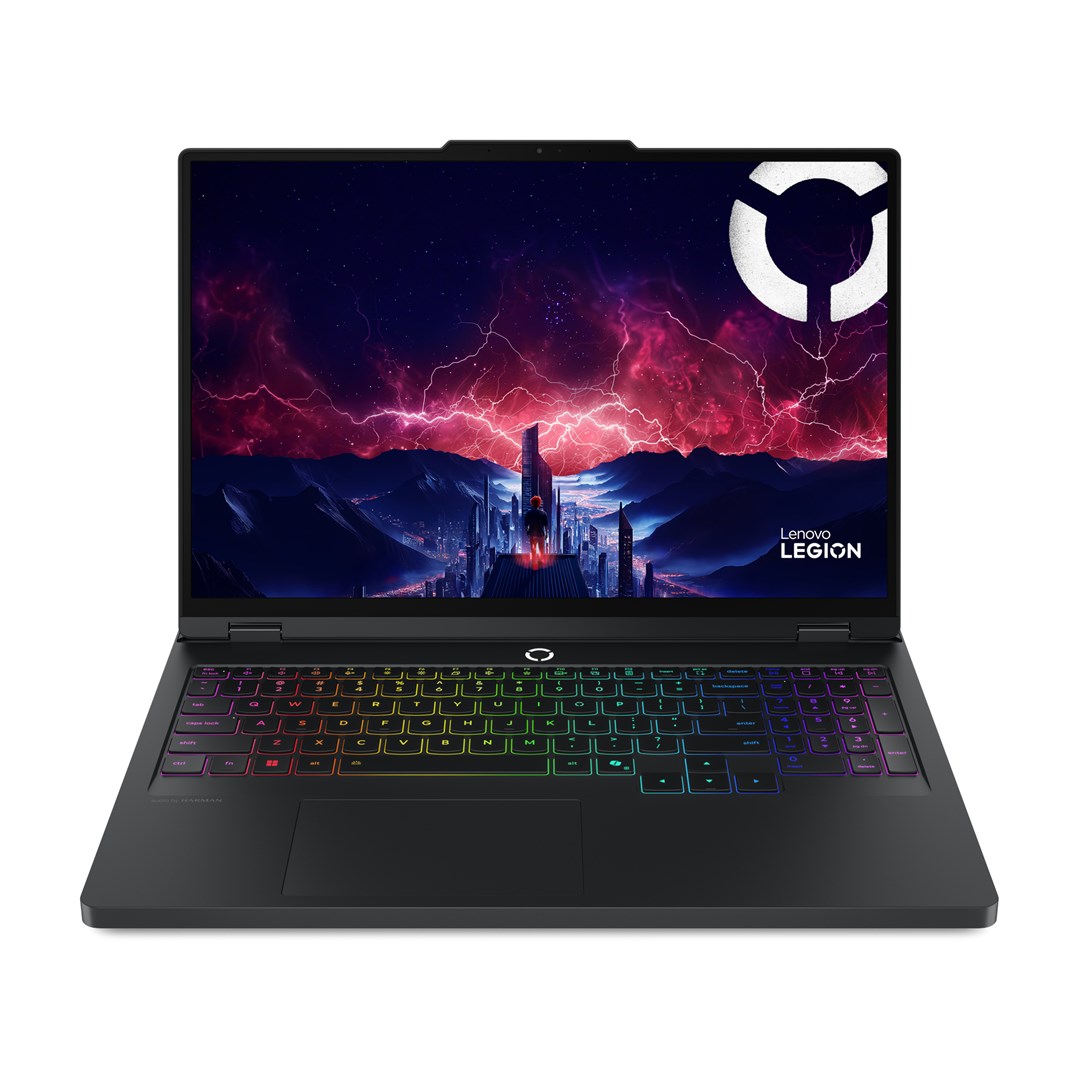

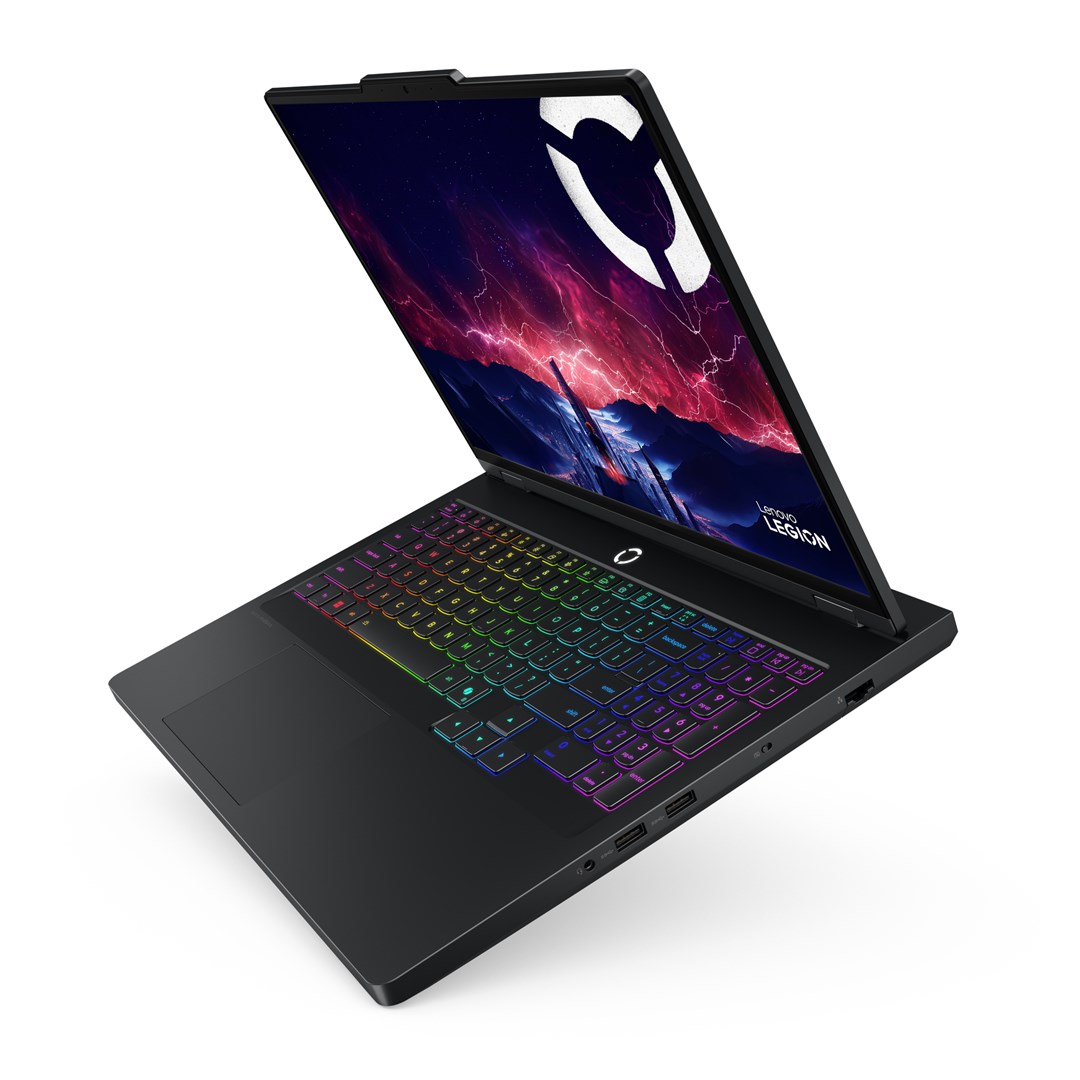

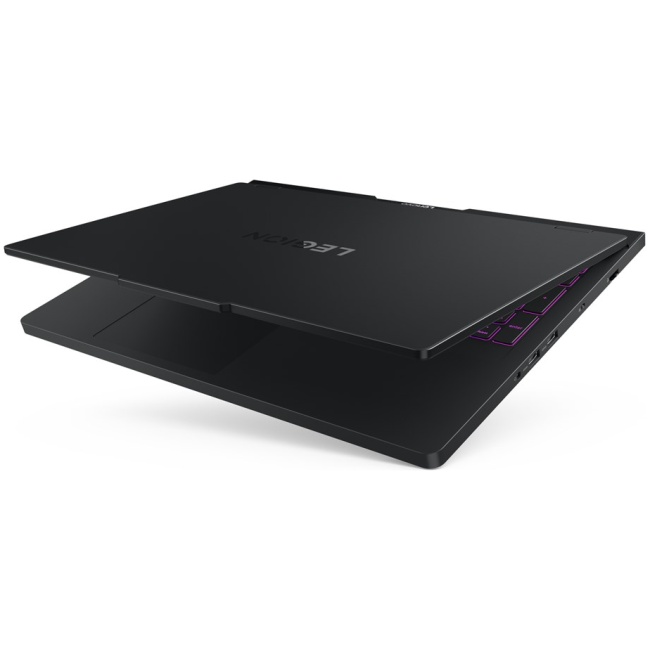

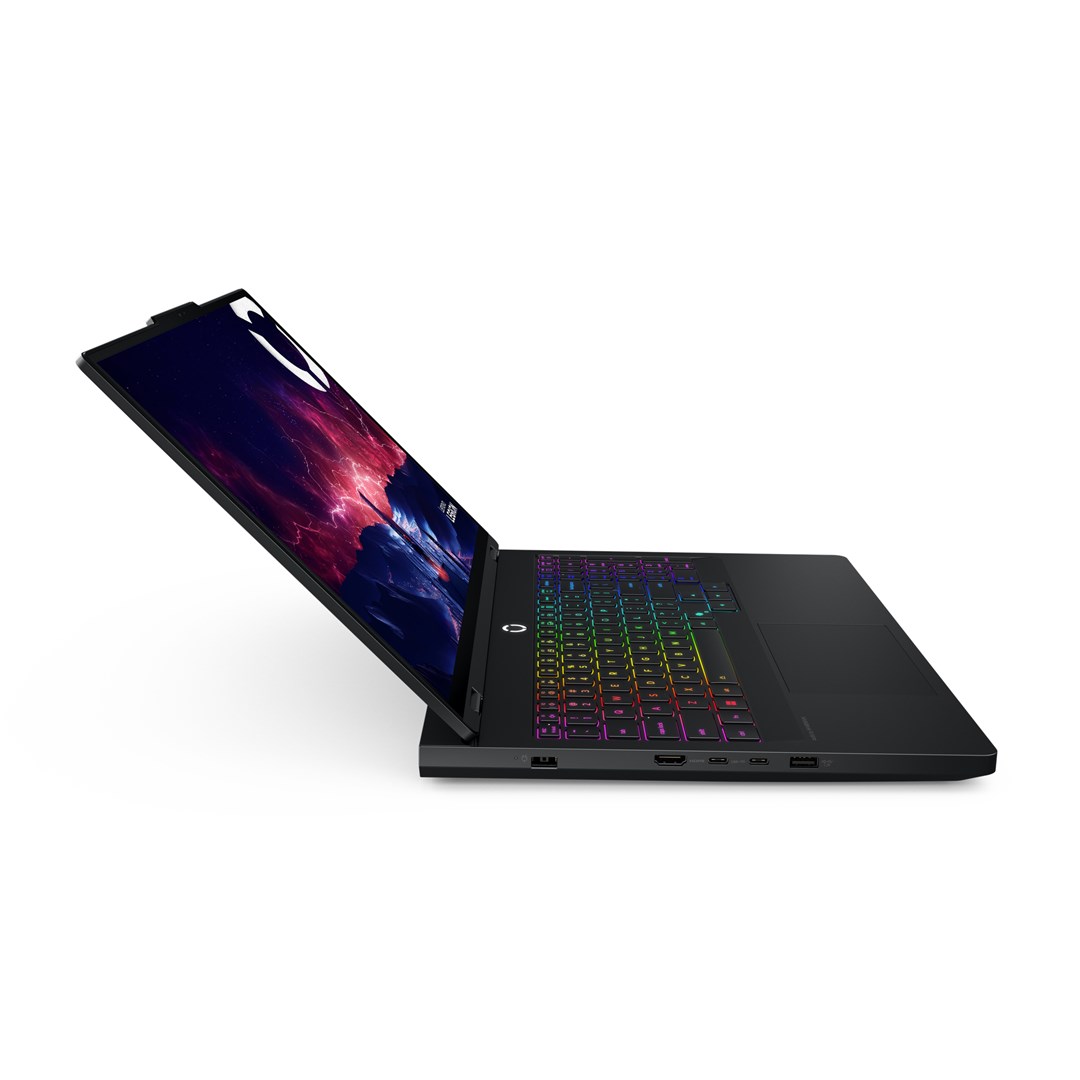

Lenovo Legion Pro 5 16AFR10 AMD Ryzen™ 9 9955HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Wi-Fi 7 (802.11be) Black

Technical Specifications

Processor

Processor boost frequency: 5.4 GHz

Processor family: AMD Ryzen™ 9

Processor model: 9955HX

Processor cores: 16

Processor manufacturer: AMD

Processor frequency: 2.5 GHz

:

:

:

:

Graphics

On-board graphics card family: AMD Radeon

Discrete graphics card: Yes

Discrete graphics memory type: GDDR7

On-board GPU manufacturer: AMD

Discrete graphics card model: NVIDIA GeForce RTX 5070

On-board graphics card: Yes

On-board graphics card model: AMD Radeon 610M

Discrete graphics card memory: 8 GB

:

:

:

:

:

:

:

Memory

Memory slots: 2x SO-DIMM

Memory layout (slots x size): 2 x 16 GB

Maximum internal memory: 32 GB

Internal memory: 32 GB

Memory clock speed: 5600 MHz

Memory form factor: SO-DIMM

Internal memory type: DDR5-SDRAM

:

:

:

Design

Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Product type: Laptop

Colour name: Eclipse Black

Product colour: Black

:

:

:

:

:

:

Power

AC adapter power: 245 W

USB Power Delivery (USB PD): Yes

USB Type-C charging port: Yes

:

:

:

:

:

:

:

Security

Trusted Platform Module (TPM) version: 2.0

Fingerprint reader: No

Trusted Platform Module (TPM): Yes

:

:

:

:

:

:

:

Weight & dimensions

Height (rear): 2.6 cm

Height (front): 2.17 cm

Depth: 268.1 mm

Width: 364.4 mm

Weight: 2.3 kg

:

:

:

:

:

Network

Bluetooth version: 5.4

Ethernet LAN: Yes

Mobile network connection: No

WWAN: Not installed

Bluetooth: Yes

Ethernet LAN data rates: 100

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Antenna type: 2×2

Wi-Fi standards: Wi-Fi 7 (802.11be)

:

Performance

Motherboard chipset: AMD SoC

:

:

:

:

:

:

:

:

:

Packaging content

AC adapter included: Yes

:

:

:

:

:

:

:

:

:

Display

Display brightness: 500 cd/m²

Touchscreen: No

High Dynamic Range (HDR) supported: Yes

Colour gamut: 100%

Panel type: OLED

Maximum refresh rate: 165 Hz

High Dynamic Range (HDR) technology: DisplayHDR True Black 1000

RGB colour space: DCI-P3

Native aspect ratio: 16:10

Display diagonal: 40.6 cm (16")

Software

Operating system installed: N

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Audio

Speaker power: 2 W

Number of built-in speakers: 2

Number of microphones: 2

Audio chip: Realtek ALC3306

Built-in microphone: Yes

:

:

:

:

:

Storage

SSD capacity: 1 TB

SSD form factor: M.2

Number of SSDs installed: 1

Total SSDs capacity: 1 TB

NVMe: Yes

SSD interface: PCI Express 4.0

Optical drive type: No

Storage media: SSD

Card reader integrated: No

Total storage capacity: 1 TB

Ports & interfaces

USB Sleep-and-Charge: Yes

HDMI version: 2.1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

Combo headphone/mic port: Yes

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

:

:

Camera

Front camera resolution (numeric): 5 MP

:

:

:

:

:

:

:

:

:

Battery

Battery capacity: 80 Wh

:

:

:

:

:

:

:

:

:

Keyboard

Keyboard backlit: Yes

Numeric keypad: Yes

Keyboard backlit colour: RGB

Keyboard backlit zone: 24-zone RGB

Pointing device: Touchpad

:

:

:

:

:

Safety warning

Hazard pictogram(s): GHS07: Harmful

Warnings: The device may become hot during operation; use caution to avoid burns.

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
