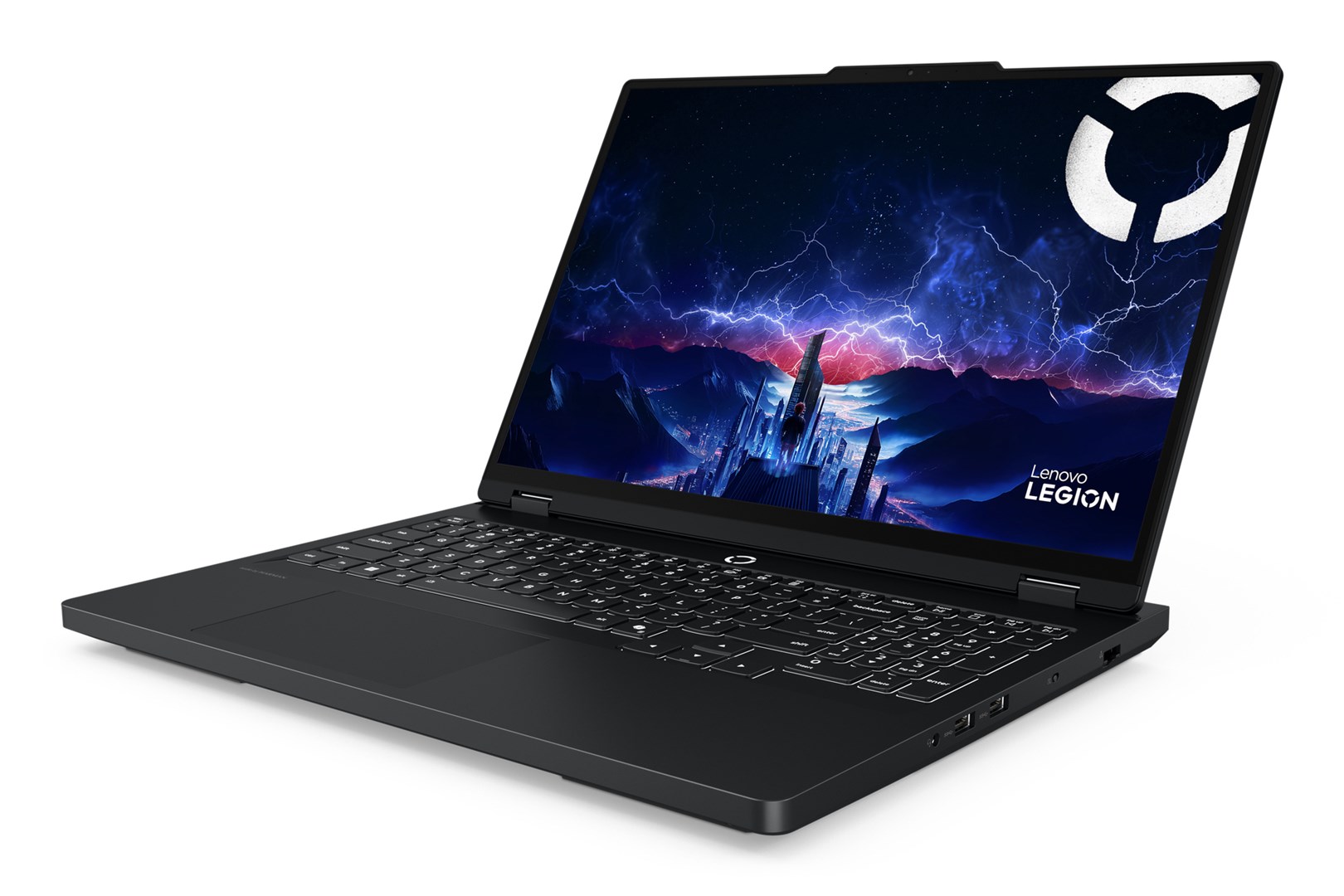

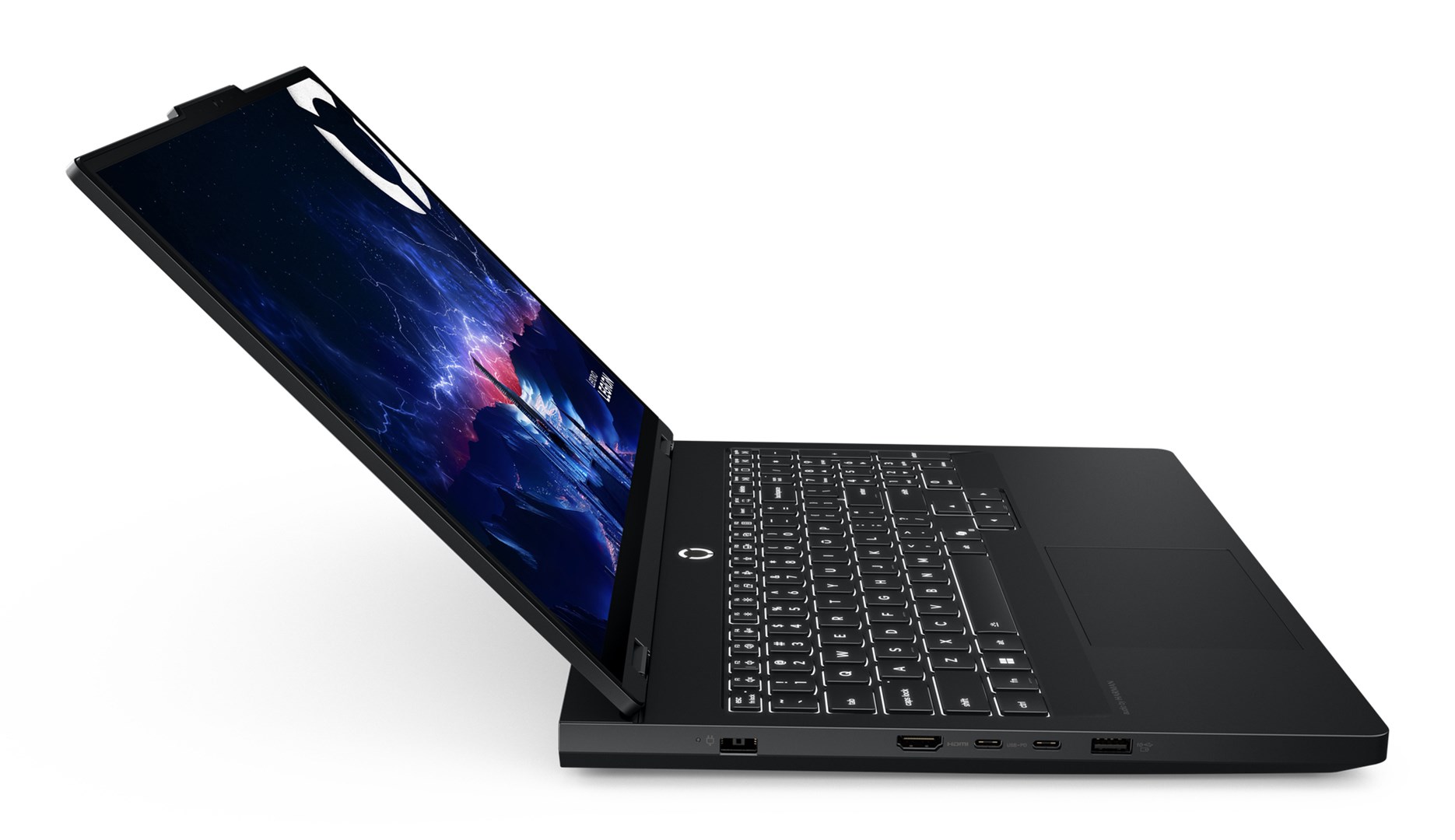

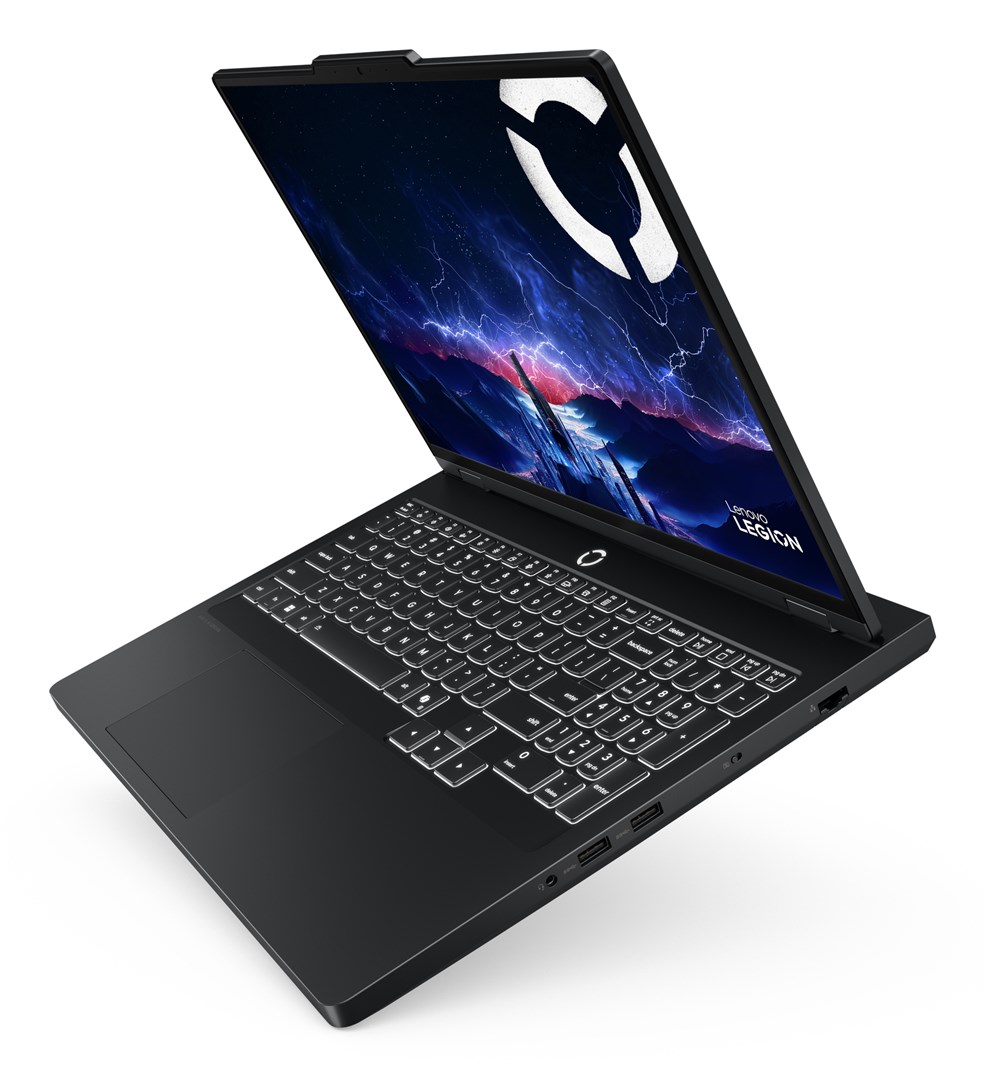

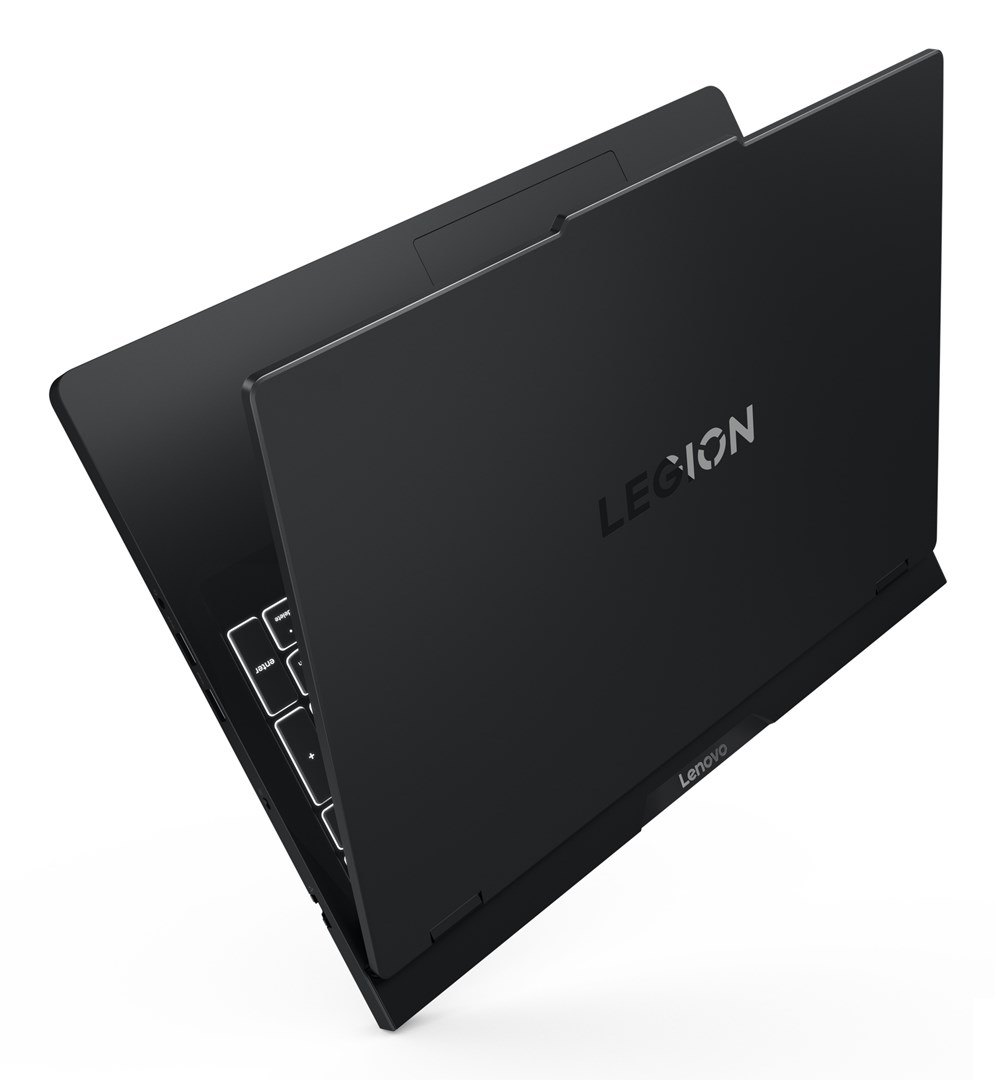

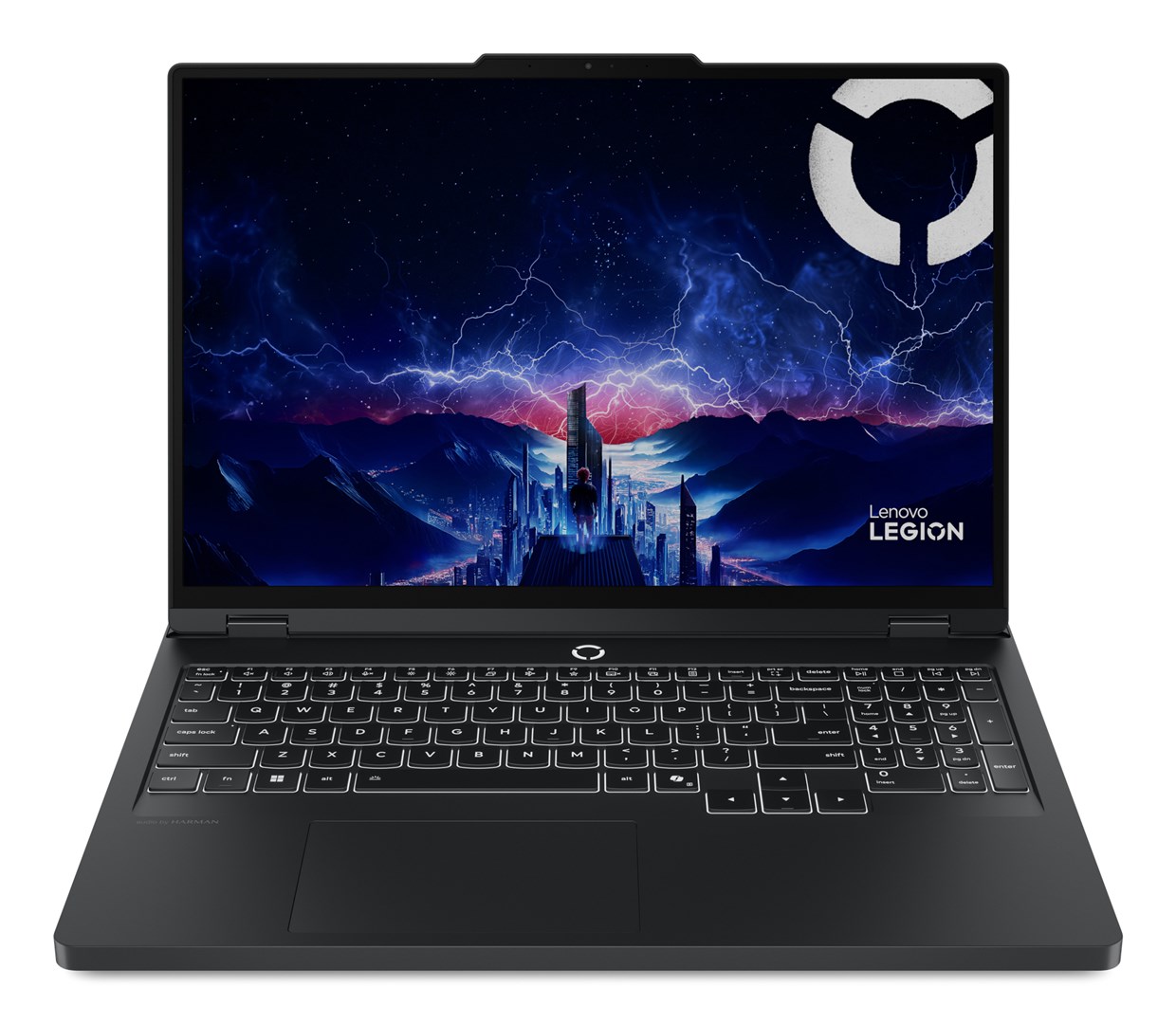

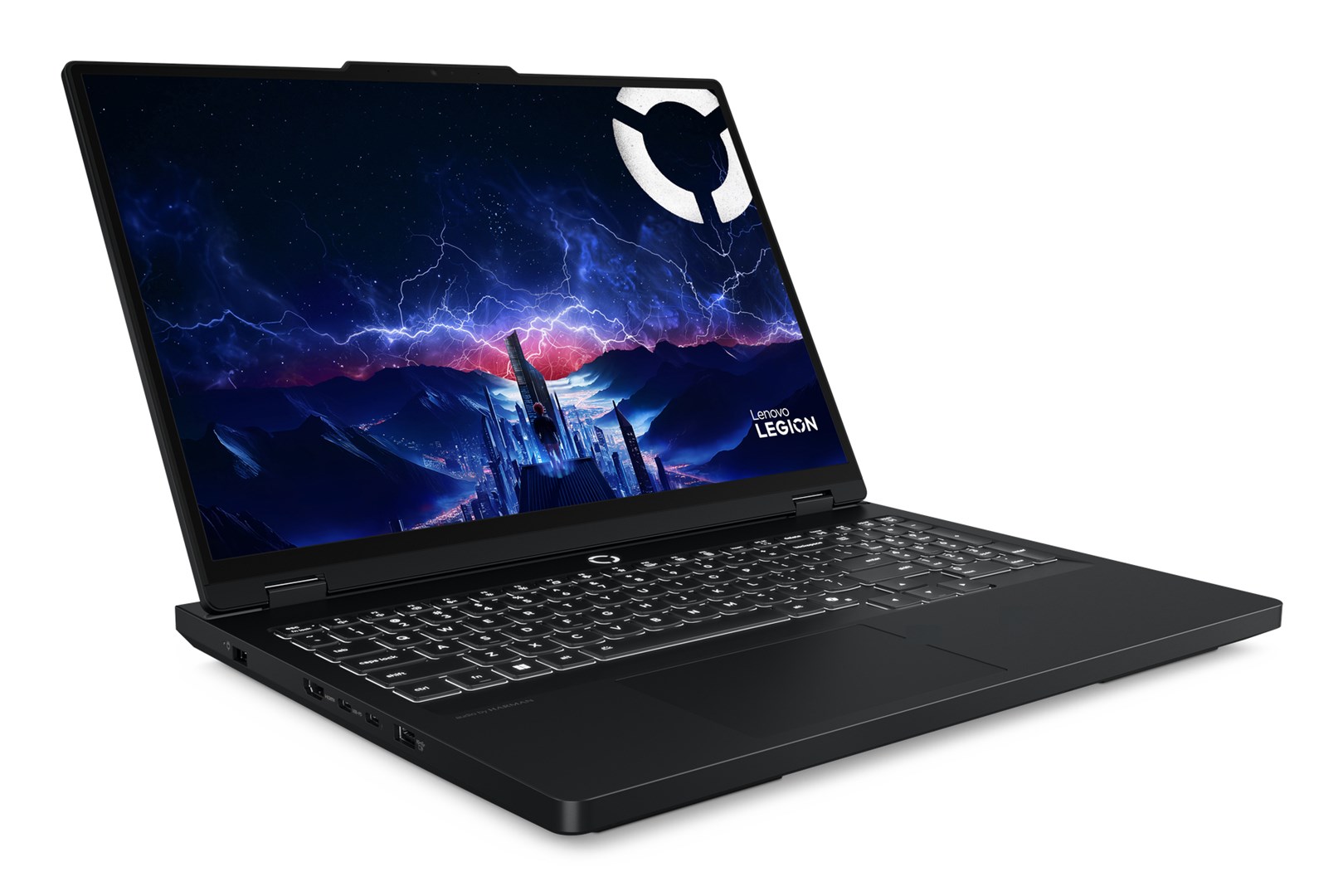

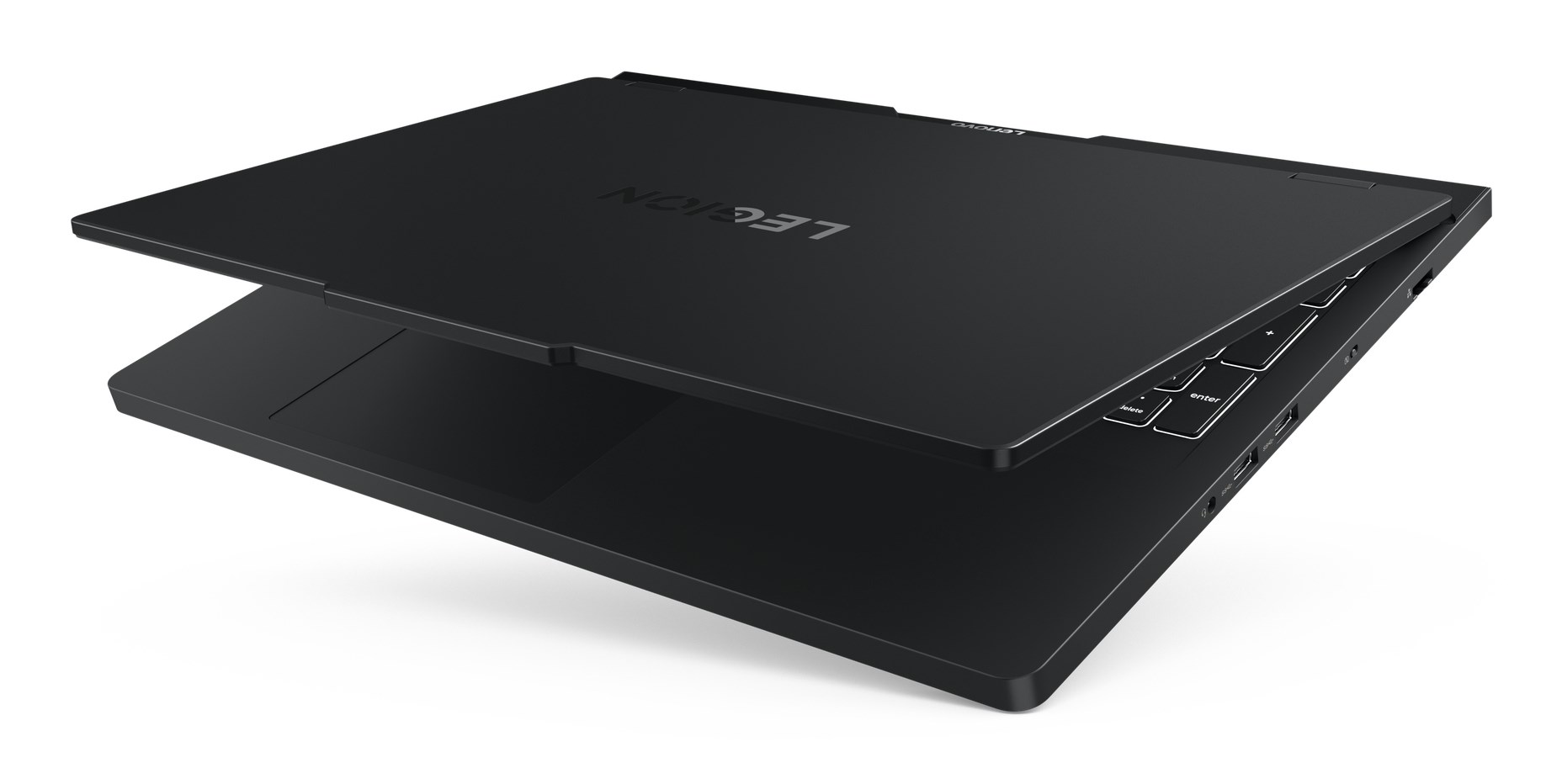

Lenovo Legion Pro 5 16IAX10 Intel Core Ultra 7 255HX Laptop 40,6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Wi-Fi 7 (802.11be) Windows 11 Home Black

Technical Specifications

Processor

Processor cores: 20

Processor model: 255HX

Processor family: Intel Core Ultra 7

Processor cache: 30 MB

Processor manufacturer: Intel

Processor threads: 20

Processor boost frequency: 5.2 GHz

Processor base power: 55 W

Efficient-core base frequency: 1.8 GHz

Performance cores: 8

Graphics

Discrete graphics card model: NVIDIA GeForce RTX 5070

On-board graphics card: Yes

On-board graphics card model: Intel® Graphics

Discrete graphics card memory: 8 GB

On-board graphics card family: Intel® Graphics

Discrete graphics card: Yes

Discrete GPU manufacturer: NVIDIA

Discrete graphics memory type: GDDR7

On-board GPU manufacturer: Intel

:

:

:

:

:

:

Memory

Maximum internal memory: 32 GB

Memory clock speed: 5600 MHz

Internal memory: 32 GB

Memory form factor: SO-DIMM

Internal memory type: DDR5-SDRAM

Memory layout (slots x size): 2 x 16 GB

Memory slots: 2x SO-DIMM

:

:

:

Design

Product colour: Black

Colour name: Eclipse Black

Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Product type: Laptop

:

:

:

:

:

:

Power

AC adapter input voltage: 100 – 240 V

USB Type-C charging port: Yes

AC adapter power: 245 W

USB Power Delivery (USB PD): Yes

AC adapter frequency: 50/60 Hz

:

:

:

:

:

Security

Trusted Platform Module (TPM): Yes

Fingerprint reader: No

Trusted Platform Module (TPM) version: 2.0

:

:

:

:

:

:

:

Operational conditions

Operating temperature (T-T): 5 – 35 °C

Storage relative humidity (H-H): 5 – 95%

Storage temperature (T-T): 5 – 43 °C

Operating relative humidity (H-H): 8 – 95%

:

:

:

:

:

:

Weight & dimensions

Weight: 2.43 kg

Width: 364.4 mm

Depth: 268.1 mm

Height (front): 2.17 cm

Height (rear): 2.6 cm

:

:

:

:

:

Network

Antenna type: 2×2

Ethernet LAN data rates: 1000 Mbit/s

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi standards: Wi-Fi 7 (802.11be)

Ethernet LAN: Yes

Mobile network connection: No

WWAN: Not installed

Bluetooth version: 5.4

:

Performance

Motherboard chipset: Intel HM870

:

:

:

:

:

:

:

:

:

Packaging content

AC adapter included: Yes

:

:

:

:

:

:

:

:

:

Display

Display diagonal: 40.6 cm (16")

Native aspect ratio: 16:10

Display resolution: 2560 x 1600 pixels

HD type: WQXGA

LED backlight: Yes

Display surface:

Display surface: Gloss

Display brightness: 500 cd/m²

High Dynamic Range (HDR) technology: Dolby Vision

Maximum refresh rate: 165 Hz

RGB colour space: DCI-P3

Touchscreen: No

Colour gamut: 100%

High Dynamic Range (HDR) supported: Yes

Panel type: OLED

:

Software

Operating system installed: Windows 11 Home

Operating system architecture: 64-bit

:

:

:

:

:

:

:

:

Audio

Built-in microphone: Yes

Audio chip: Realtek ALC3306

Number of microphones: 2

Number of built-in speakers: 2

Speaker power: 2 W

:

:

:

:

:

Storage

Card reader integrated: No

Optical drive type: No

Total storage capacity: 1 TB

Storage media: SSD

SSD capacity: 1 TB

SSD interface: PCI Express 4.0

Number of SSDs installed: 1

NVMe: Yes

Total SSDs capacity: 1 TB

SSD form factor: M.2

Ports & interfaces

Combo headphone/mic port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB Sleep-and-Charge: Yes

Thunderbolt 4 ports quantity: 1

:

Camera

Front camera resolution (numeric): 5 MP

:

:

:

:

:

:

:

:

:

Battery

Battery capacity: 80 Wh

:

:

:

:

:

:

:

:

:

Keyboard

Numeric keypad: Yes

Pointing device: Touchpad

Keyboard backlit colour: RGB

Keyboard backlit: Yes

:

:

:

:

:

:

Safety warning

Warnings: The device may become hot during operation; use caution to avoid burns.

Hazard pictogram(s): GHS07: Harmful

:

:

:

:

:

:

:

:

Neural processor unit (NPU)

GPU performance up to: 8 TOPs

NPU performance up to: 13 TOPs

AI software frameworks supported by NPU: DirectML

Windows Studio effects support: Yes

Sparsity support: Yes

Neural processor unit (NPU): Intel AI Boost

Total processor performance up to: 33 TOPs

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
