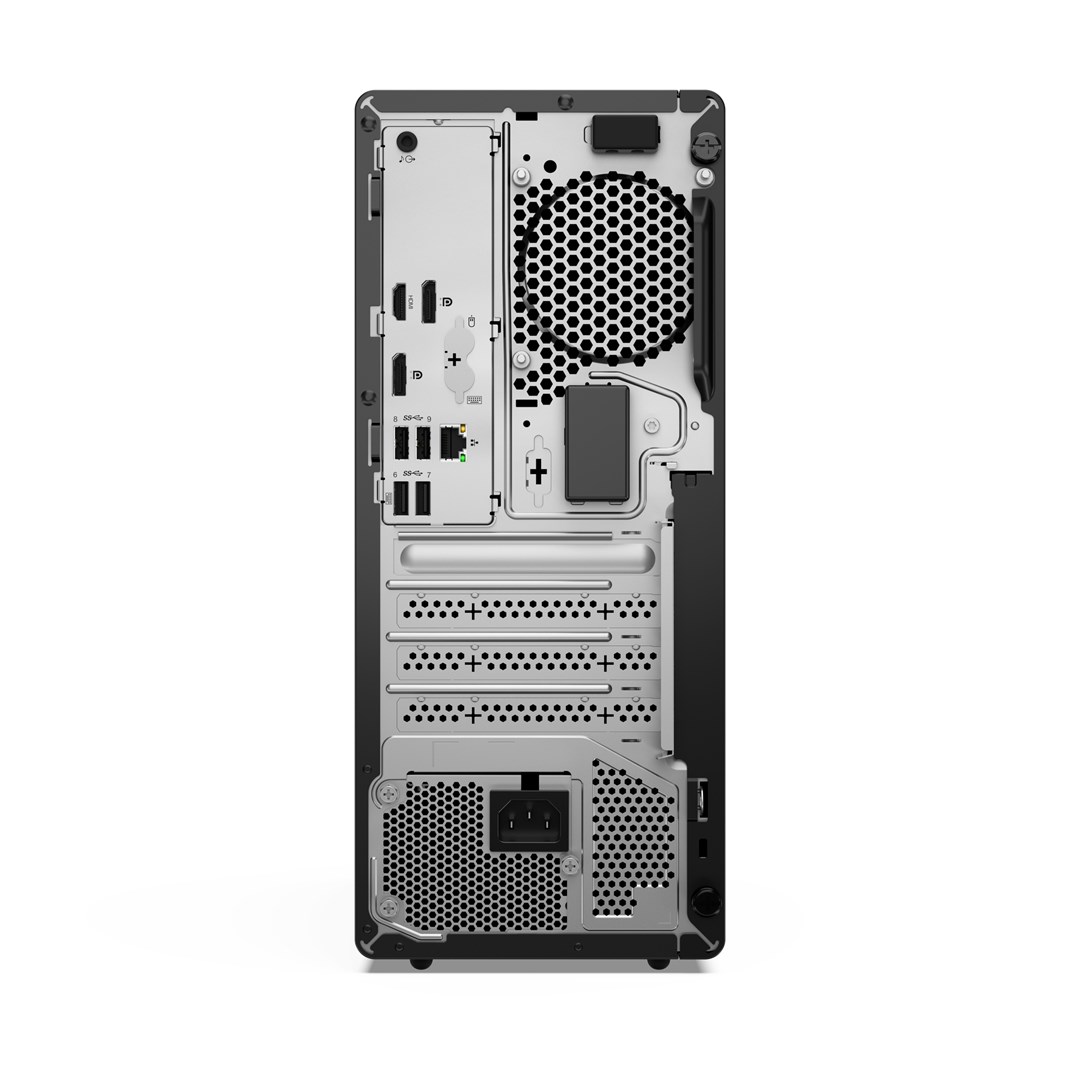

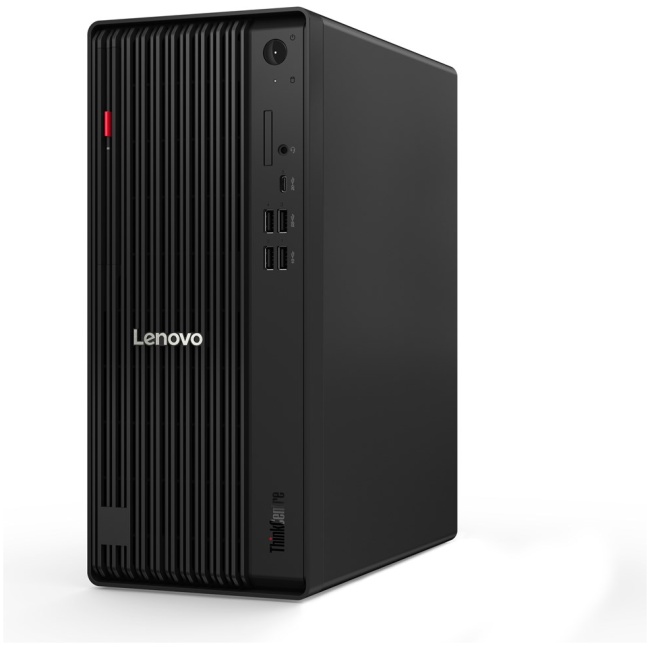

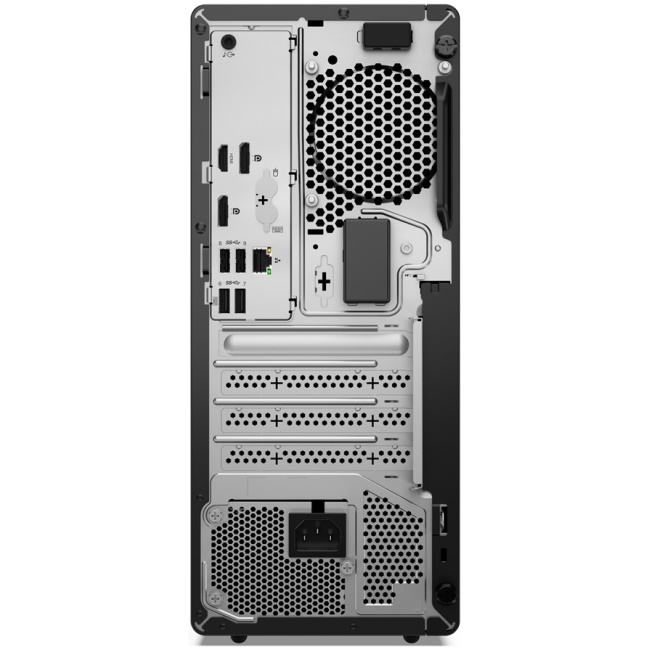

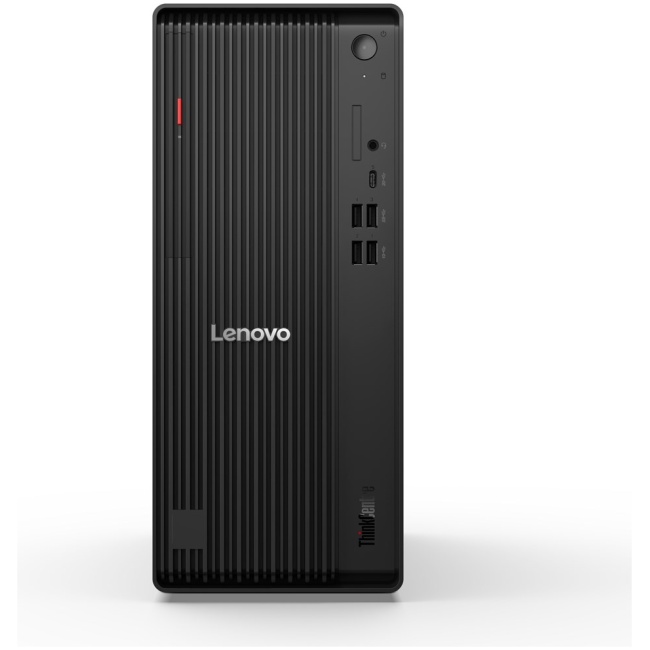

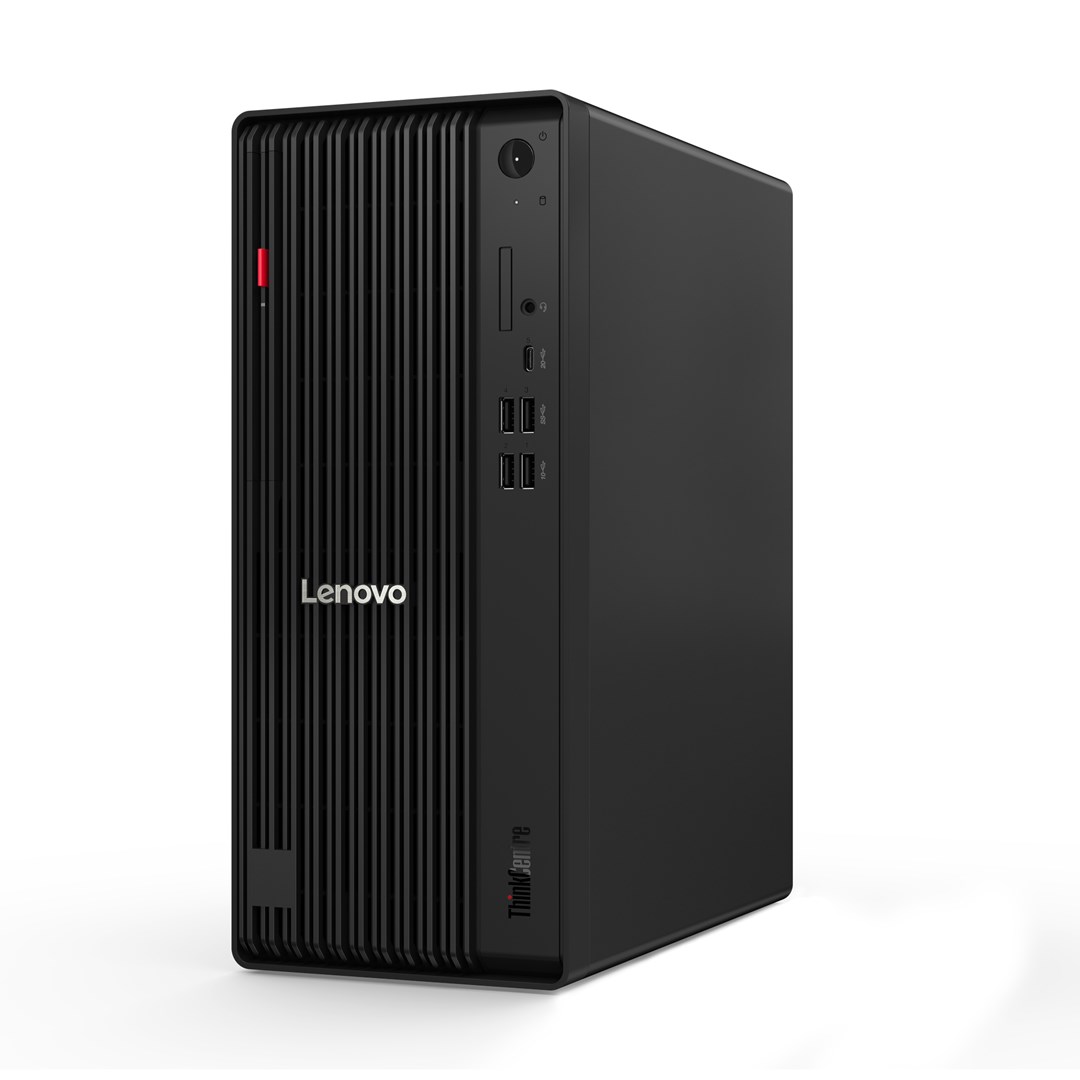

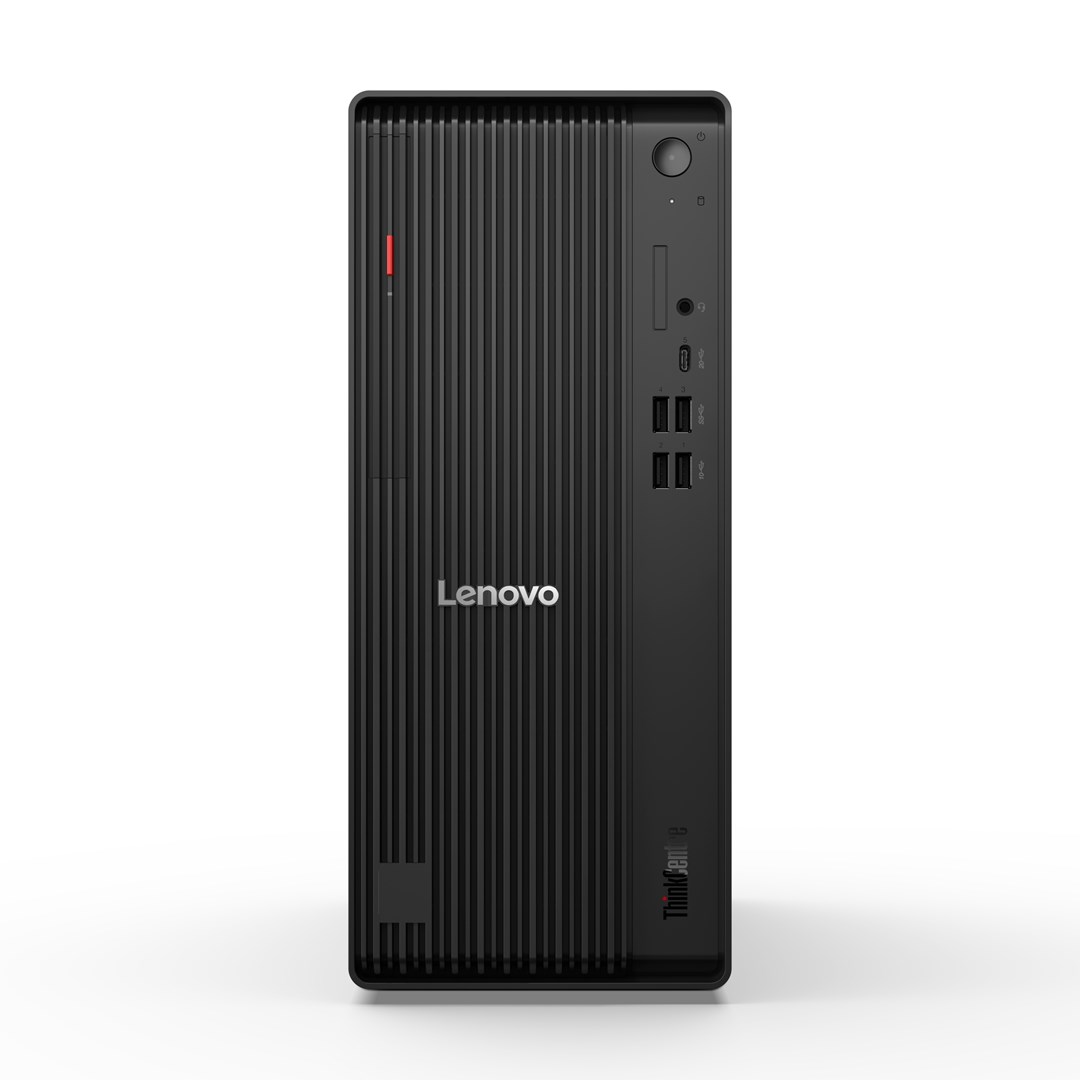

Lenovo ThinkCentre M70t Gen 6 Intel Core Ultra 5 235 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Tower PC Black

Technical Specifications

Processor

Processor family: Intel Core Ultra 5

Processor cache: 24 MB

Processor boost frequency: 5 GHz

Processor threads: 14

Processor cores: 14

Processor model: 235

Processor cache type: Smart Cache

Processor manufacturer: Intel

Efficient-core base frequency: 2.9 GHz

Processor generation: Intel Core Ultra (Series 2)

Graphics

Discrete graphics card model: Not available

On-board graphics card model: Intel® Graphics

On-board graphics card: Yes

Discrete graphics card: No

On-board graphics card family: Intel® Graphics

On-board GPU manufacturer: Intel

:

:

:

:

:

:

:

:

:

Memory

Non-ECC: Yes

Maximum internal memory: 128 GB

Internal memory: 16 GB

Memory clock speed: 5600 MHz

Internal memory type: DDR5-SDRAM

Memory channels: Dual-channel

Memory layout (slots x size): 1 x 16 GB

Buffered memory type: Unregistered (unbuffered)

Memory slots: 4x DIMM

:

Design

Cable lock slot: Yes

Product colour: Black

Cable lock slot type: Kensington

Volume: 13.6 L

Chassis type: Tower

Placement supported: Vertical

:

:

:

:

Power

Power supply input voltage: 100 – 240 V

Power supply input frequency: 50 – 60 Hz

Power supply: 260 W

:

:

:

:

:

:

:

Operational conditions

Operating relative humidity (H-H): 20 – 80%

Operating temperature (T-T): 5 – 35 °C

Operating altitude: 0 – 3048 m

Storage temperature (T-T): -40 – 60 °C

Storage relative humidity (H-H): 10 – 90%

Non-operating altitude: 0 – 12192 m

:

:

:

:

Weight & dimensions

Package height: 530 mm

Package width: 245 mm

Weight: 5.7 kg

Package depth: 395 mm

Package weight: 7.5 kg

Height: 346 mm

Depth: 296 mm

Width: 145 mm

:

:

Network

Bluetooth: Yes

Antenna type: 2×2

Ethernet LAN data rates: 100 Mbit/s

Bluetooth version: 5.3

WLAN controller model: Intel Wi-Fi 6E AX211

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

WLAN controller manufacturer: Intel

Wi-Fi: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Performance

Motherboard chipset: Intel® Q870

Audio chip: Realtek ALC623-CG

Trusted Platform Module (TPM): Yes

Password protection type: BIOS

Password protection: Yes

Built-in speaker(s): Yes

Number of speakers: 1

Product type: PC

:

:

Packaging content

Mouse included: Yes

Keyboard included: Yes

Mouse connectivity: Wired

Keyboard connectivity: Wired

:

:

:

:

:

:

Display

Display included: No

:

:

:

:

:

:

:

:

:

Software

Operating system language: Polish

Operating system installed: Windows 11 Pro

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Certificates

Compliance certificates: RoHS

:

:

:

:

:

:

:

:

:

Storage

Optical drive type: DVD±RW

Total storage capacity: 512 GB

NVMe: Yes

SSD form factor: M.2

Number of SSDs installed: 1

SSD capacity: 512 GB

SSD interface: PCI Express 4.0

Total SSDs capacity: 512 GB

Number of storage drives installed: 1

Compatible memory cards: SDXC

Ports & interfaces

DisplayPorts quantity: 2

Ethernet LAN (RJ-45) ports: 1

Combo headphone/mic port: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6

DisplayPort version: 1.4a

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Line-out: Yes

HDMI ports quantity: 1

Sustainability

Sustainability certificates: ENERGY STAR

:

:

:

:

:

:

:

:

:

Neural processor unit (NPU)

AI software frameworks supported by NPU: DirectML

Windows Studio effects support: Yes

Sparsity support: Yes

NPU performance up to: 13 TOPs

Neural processor unit (NPU): Intel AI Boost

GPU performance up to: 6 TOPs

Total processor performance up to: 27 TOPs

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
