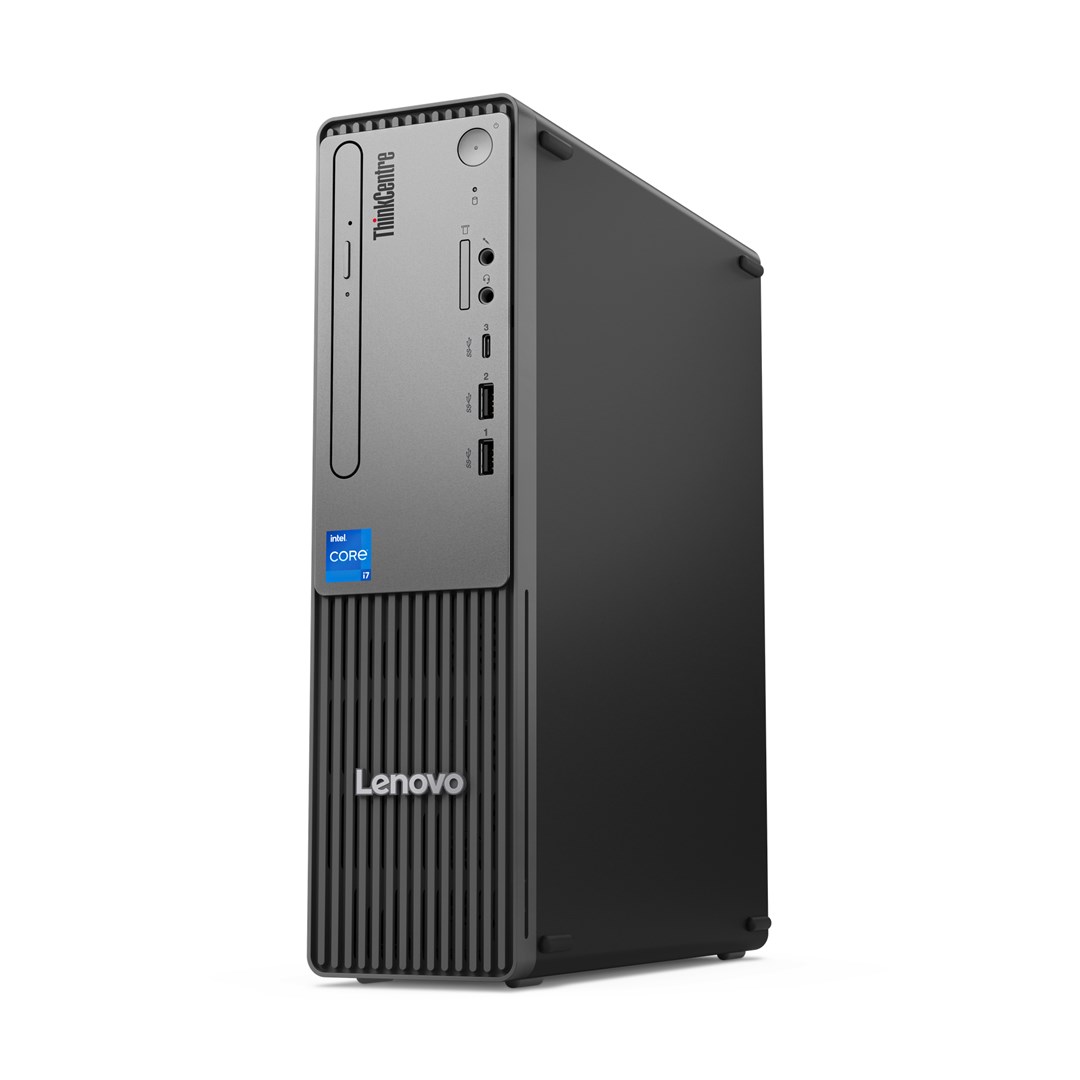

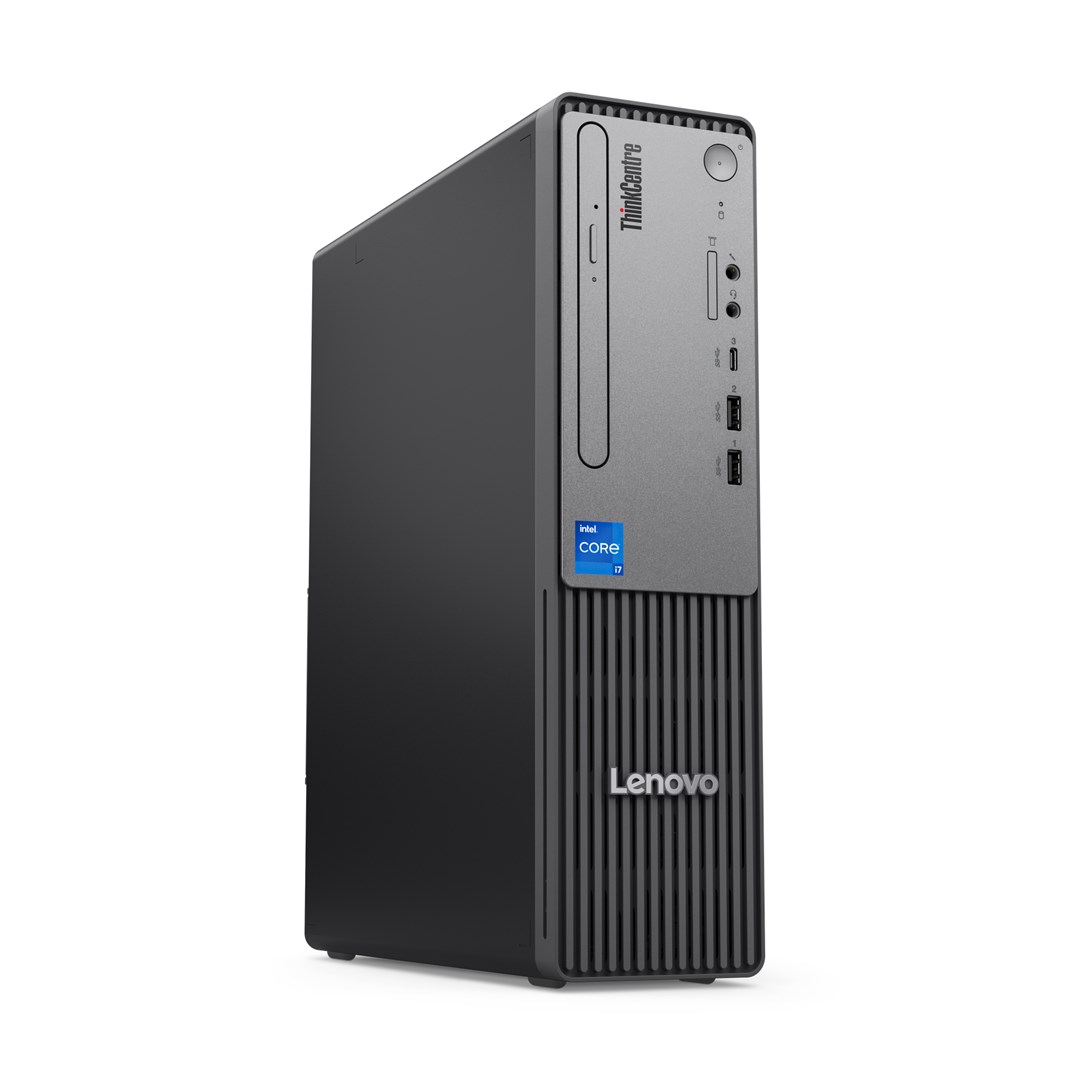

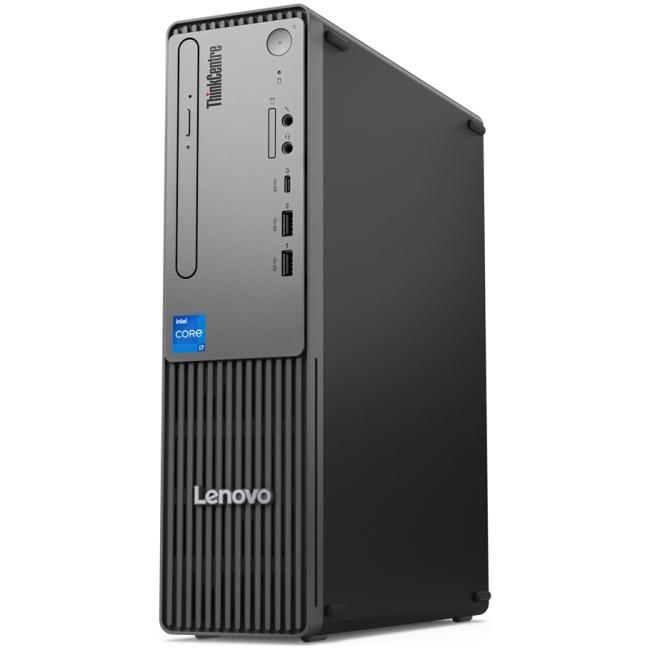

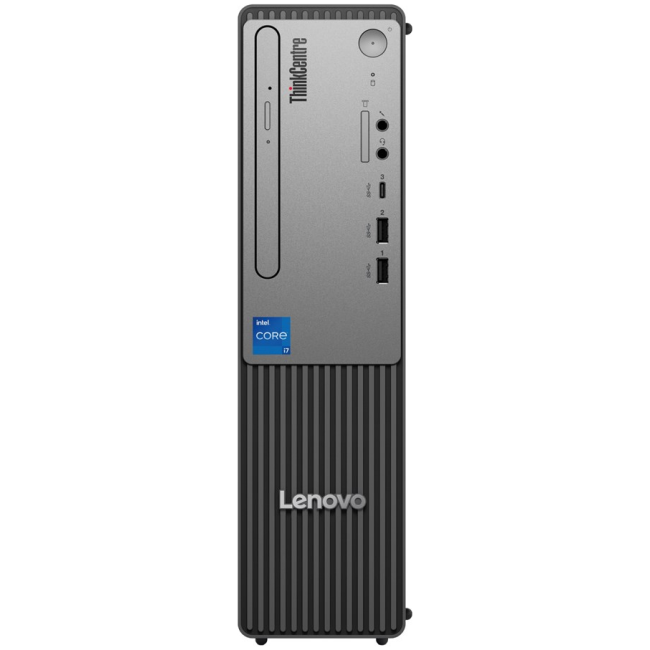

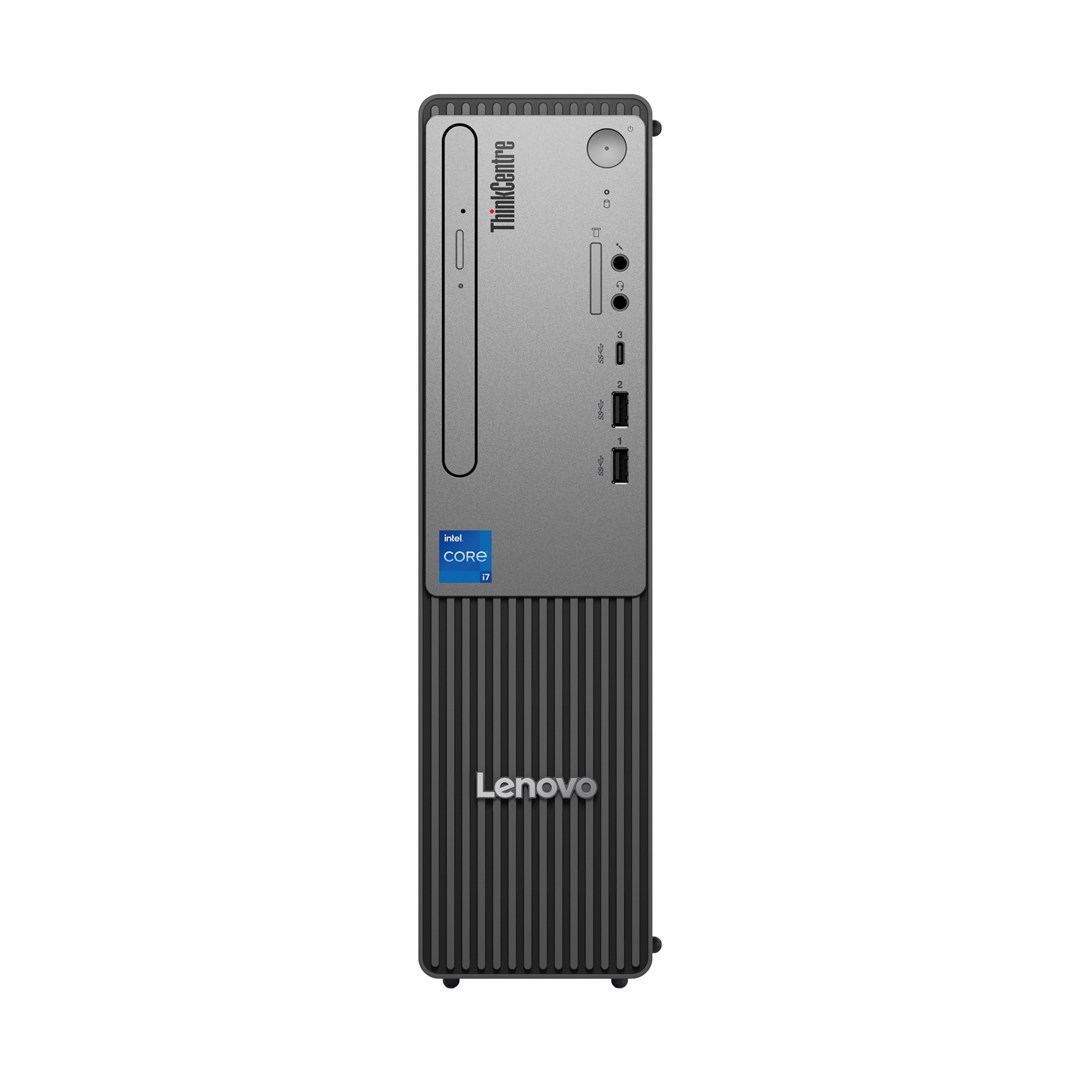

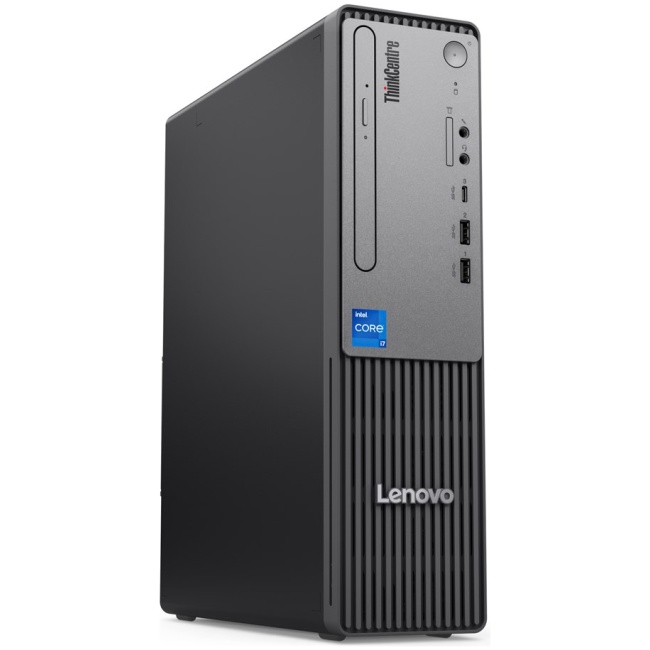

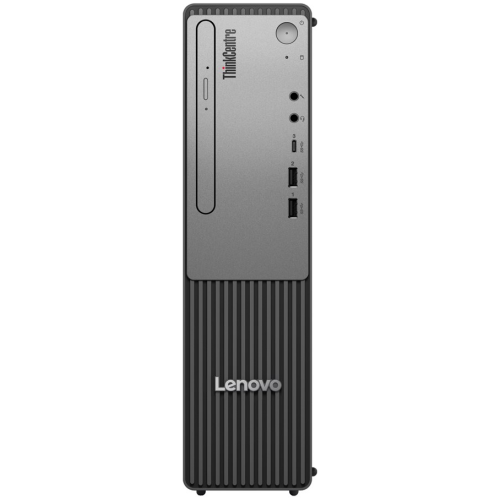

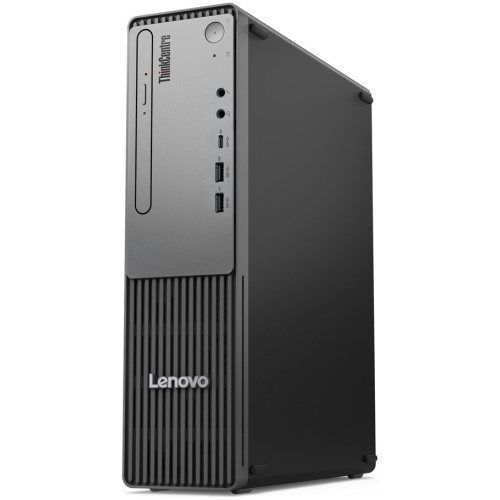

Lenovo ThinkCentre neo 50s Gen 5 Intel® Core™ i3 i3-14100 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black, Grey

Technical Specifications

Processor

Processor family: Intel® Core™ i3

Processor cache: 12 MB

Processor cache type: Smart Cache

Processor boost frequency: 4.7 GHz

Processor threads: 8

Processor model: i3-14100

Processor cores: 4

Number of processors installed: 1

Maximum turbo power: 110 W

Processor generation: Intel® Core™ i3 (14th gen)

Graphics

Discrete graphics card model: Not available

On-board graphics card model: Intel UHD Graphics 730

On-board graphics card family: Intel® UHD Graphics

Discrete graphics card: No

On-board graphics card: Yes

On-board GPU manufacturer: Intel

:

:

:

:

:

:

:

:

:

Memory

Internal memory: 16 GB

Internal memory type: DDR5-SDRAM

Maximum internal memory: 64 GB

Memory clock speed: 5600 MHz

Memory channels: Dual-channel

Memory slots: 2x DIMM

Memory layout (slots x size): 1 x 16 GB

:

:

:

Design

Product colour: Black

Cable lock slot: Yes

Cable lock slot type: Kensington

Volume: 8.2 L

Placement supported: Horizontal/Vertical

Chassis type: SFF

Colour name: Chassis: Black, Bezel: Grey

:

:

:

Power

Power supply input voltage: 100 – 240 V

Power supply: 180 W

Power supply input frequency: 50/60 Hz

:

:

:

:

:

:

:

Operational conditions

Operating temperature (T-T): 5 – 35 °C

Operating altitude: 0 – 3048 m

Operating relative humidity (H-H): 20 – 80%

Storage temperature (T-T): -40 – 60 °C

Storage relative humidity (H-H): 10 – 90%

Non-operating altitude: 0 – 12192 m

:

:

:

:

Weight & dimensions

Package width: 195 mm

Package depth: 395 mm

Package height: 530 mm

Weight: 4.2 kg

Package weight: 6.29 kg

Height: 339.5 mm

Depth: 291.4 mm

Width: 92.5 mm

:

:

Network

Antenna type: 2×2

Bluetooth: Yes

Ethernet LAN data rates: 100 Mbit/s

LAN controller: Realtek RTL8111K

Wi-Fi: Yes

Cabling technology: 10/100/1000Base-T(X)

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi standards: Wi-Fi 6 (802.11ax)

Bluetooth version: 5.3

Ethernet LAN: Yes

Performance

Trusted Platform Module (TPM): Yes

Motherboard chipset: Intel B760

Audio chip: Realtek ALC623-CG

Audio system: High Definition Audio

Number of speakers: 1

Password protection type: Power on

Product type: PC

Trusted Platform Module (TPM) version: 2.0

Password protection: Yes

:

Packaging content

Mouse included: Yes

Keyboard included: Yes

Keyboard connectivity: Wired

Mouse connectivity: Wired

:

:

:

:

:

:

Display

Display included: No

:

:

:

:

:

:

:

:

:

Software

Operating system architecture: 64-bit

Operating system language: English

Operating system installed: Windows 11 Pro

:

:

:

:

:

:

:

:

:

:

:

:

:

Storage

Optical drive type: DVD±RW

Total storage capacity: 512 GB

SSD interface: PCI Express 4.0

SSD form factor: M.2

Number of storage drives installed: 1

Storage media: SSD

NVMe: Yes

Number of SSDs installed: 1

SSD capacity: 512 GB

Total SSDs capacity: 512 GB

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 2.0 ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

DisplayPorts quantity: 1

Combo headphone/mic port: Yes

DisplayPort version: 1.4

Headphone outputs: 1

Line-out: Yes

VGA (D-Sub) ports quantity: 1

Microphone in: Yes

Sustainability

Sustainability certificates: TCO

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
