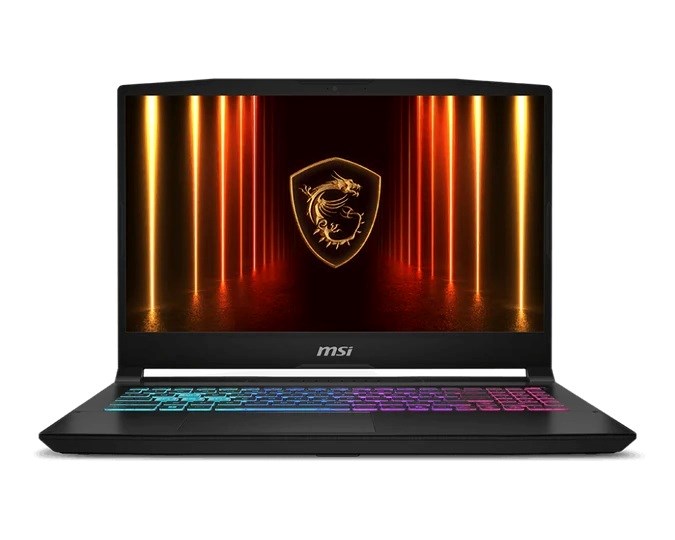

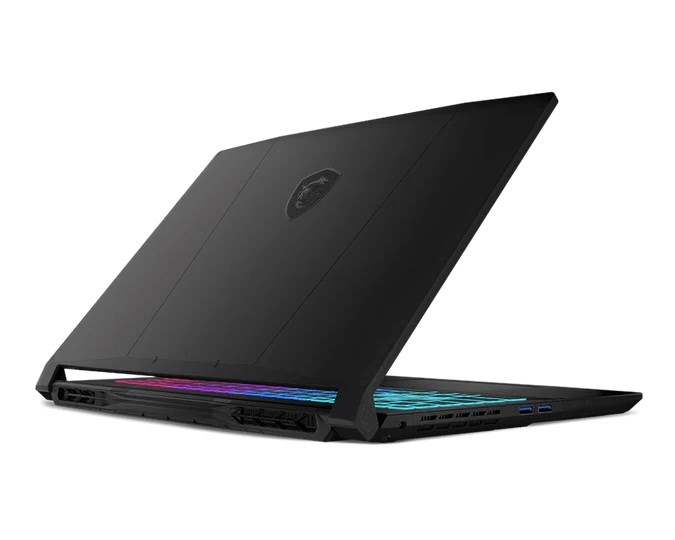

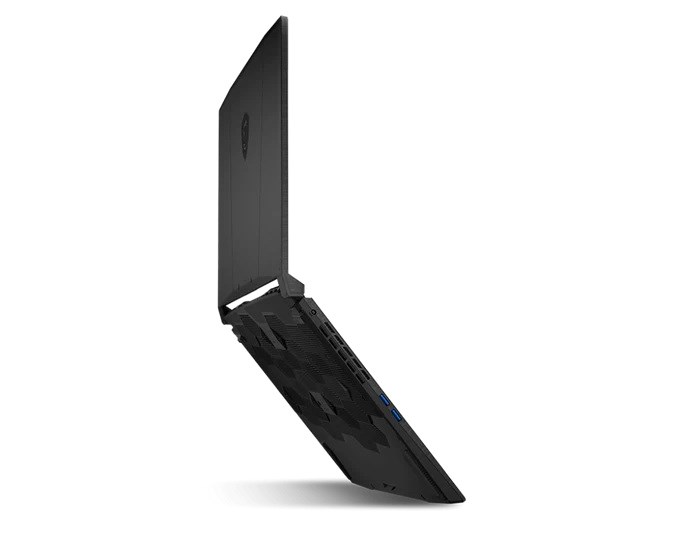

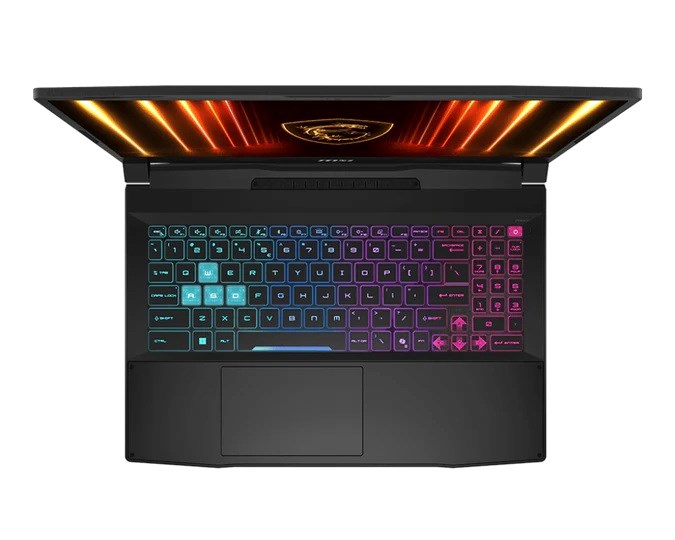

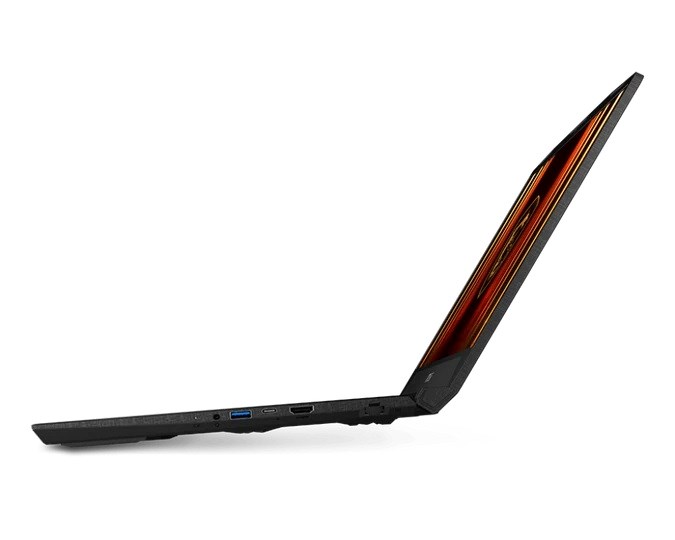

MSI Katana 15 HX B14WFK-494XPL i5-14450HX 15.6" FHD 144Hz IPS-Level 16GB DDR5 SSD512 GeForce RTX 5060 8GB NoOS 2Y

Technical Specifications

Processor

Processor threads: 16

Processor cores: 10

Processor family: Intel® Core™ i5

Processor boost frequency: 4.8 GHz

Processor manufacturer: Intel

Processor cache: 20 MB

Processor cache type: Smart Cache

Efficient cores: 4

Processor base power: 55 W

Performance cores: 6

Graphics

Discrete graphics card memory: 8 GB

Discrete graphics card model: NVIDIA GeForce RTX 5060

Discrete graphics card: Yes

Discrete graphics memory type: GDDR7

Discrete GPU manufacturer: NVIDIA

:

:

:

:

:

:

:

:

:

:

Memory

Memory clock speed: 5600 MHz

Internal memory: 16 GB

Maximum internal memory: 96 GB

Internal memory type: DDR5-SDRAM

Memory slots: 2x SO-DIMM

Memory layout (slots x size): 2 x 8 GB

:

:

:

:

Design

Product colour: Black

Product type: Laptop

Original brand name: MSI

:

:

:

:

:

:

:

Power

DC-in jack: Yes

AC adapter power: 240 W

USB Power Delivery (USB PD): Yes

:

:

:

:

:

:

:

Security

Trusted Platform Module (TPM): Yes

Trusted Platform Module (TPM) version: 2.0

:

:

:

:

:

:

:

:

Weight & dimensions

Weight: 2.4 kg

Height: 25.5 mm

Depth: 262 mm

Width: 359 mm

:

:

:

:

:

:

Network

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi standards: Wi-Fi 6E (802.11ax)

Bluetooth: Yes

Ethernet LAN: Yes

WLAN controller manufacturer: Intel

Bluetooth version: 5.3

WLAN controller model: Intel Wi-Fi 6E AX211

:

:

:

Packaging content

AC adapter included: Yes

:

:

:

:

:

:

:

:

:

Display

Display resolution: 1920 x 1080 pixels

HD type: Full HD

Display diagonal: 39.6 cm (15.6")

Native aspect ratio: 16:9

Anti-glare screen: Yes

Maximum refresh rate: 144 Hz

:

:

:

:

Software

Operating system installed: No

:

:

:

:

:

:

:

:

:

Audio

Number of built-in speakers: 2

Speaker power: 2 W

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Storage

Optical drive type: No

Total storage capacity: 512 GB

Storage media: SSD

Total SSDs capacity: 512 GB

Number of SSDs installed: 1

SSD interface: PCI Express 4.0

NVMe: Yes

SSD capacity: 512 GB

SSD form factor: M.2

:

Ports & interfaces

HDMI version: 2.1

Combo headphone/mic port: Yes

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

:

:

:

:

Camera

Front camera: Yes

Video capturing speed: 30 fps

Front camera resolution: 1280 x 720 pixels

Front camera HD type: HD

:

:

:

:

:

:

Battery

Battery capacity: 75 Wh

Number of battery cells: 4

:

:

:

:

:

:

:

:

Keyboard

Copilot key: Yes

Numeric keypad: Yes

Pointing device: Touchpad

Keyboard backlit: Yes

Keyboard backlit colour: RGB

Keyboard backlit zone: 4-zone RGB

:

:

:

:

Other features

Warranty period: 2 year(s)

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
