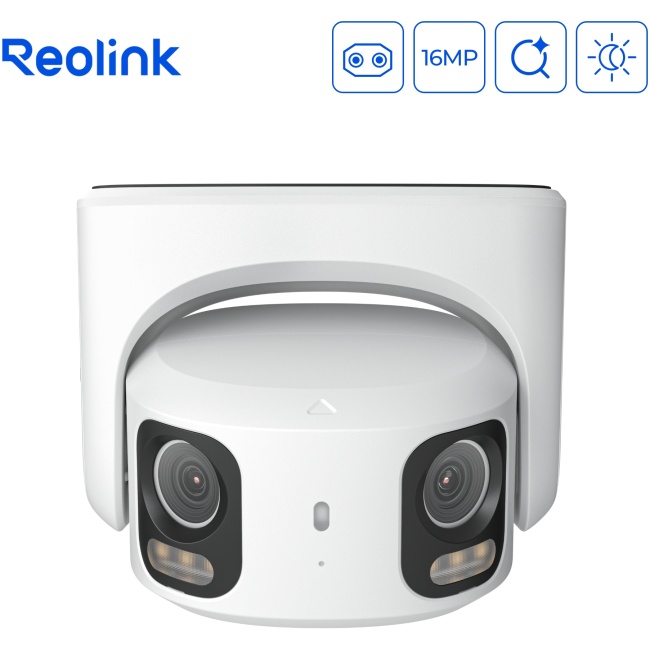

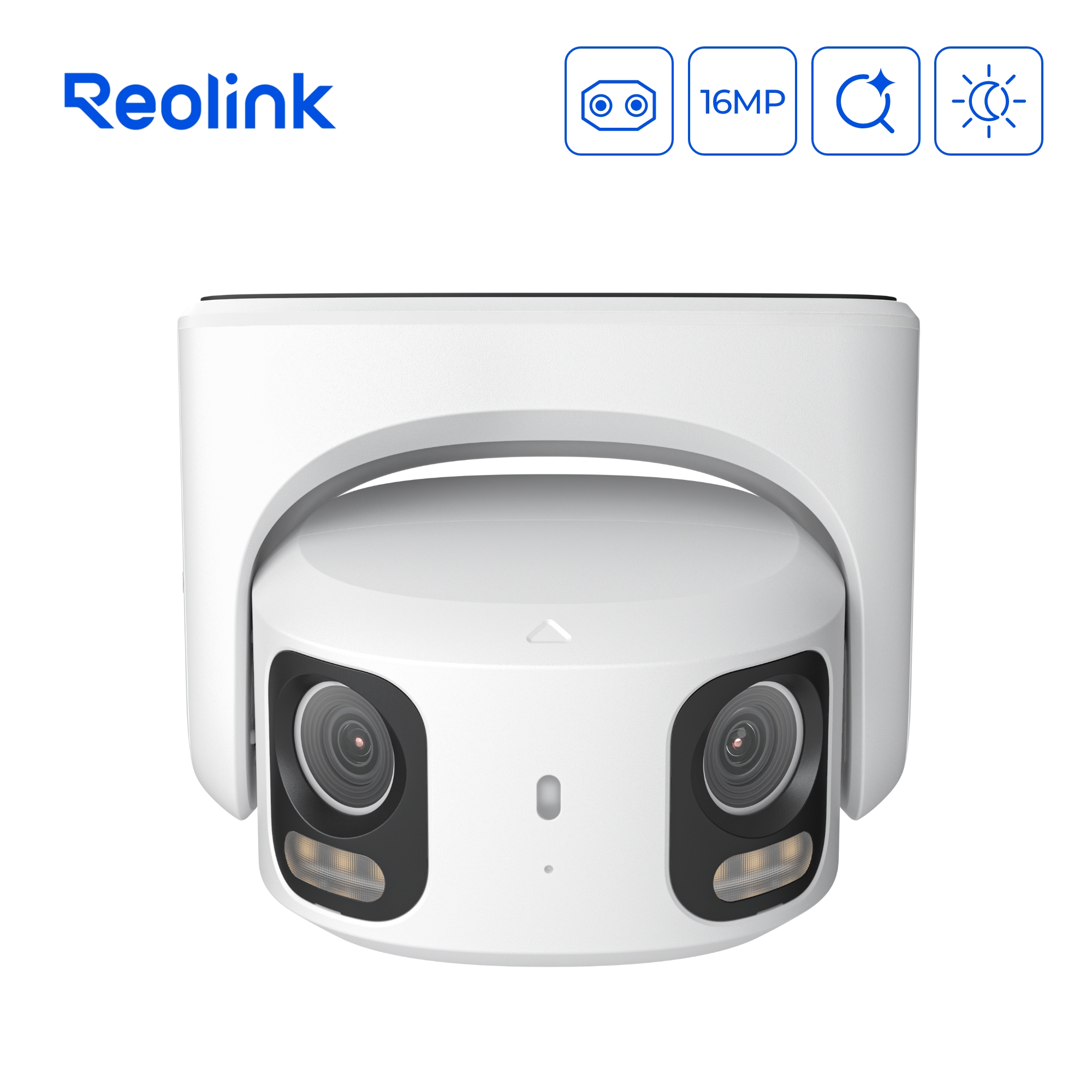

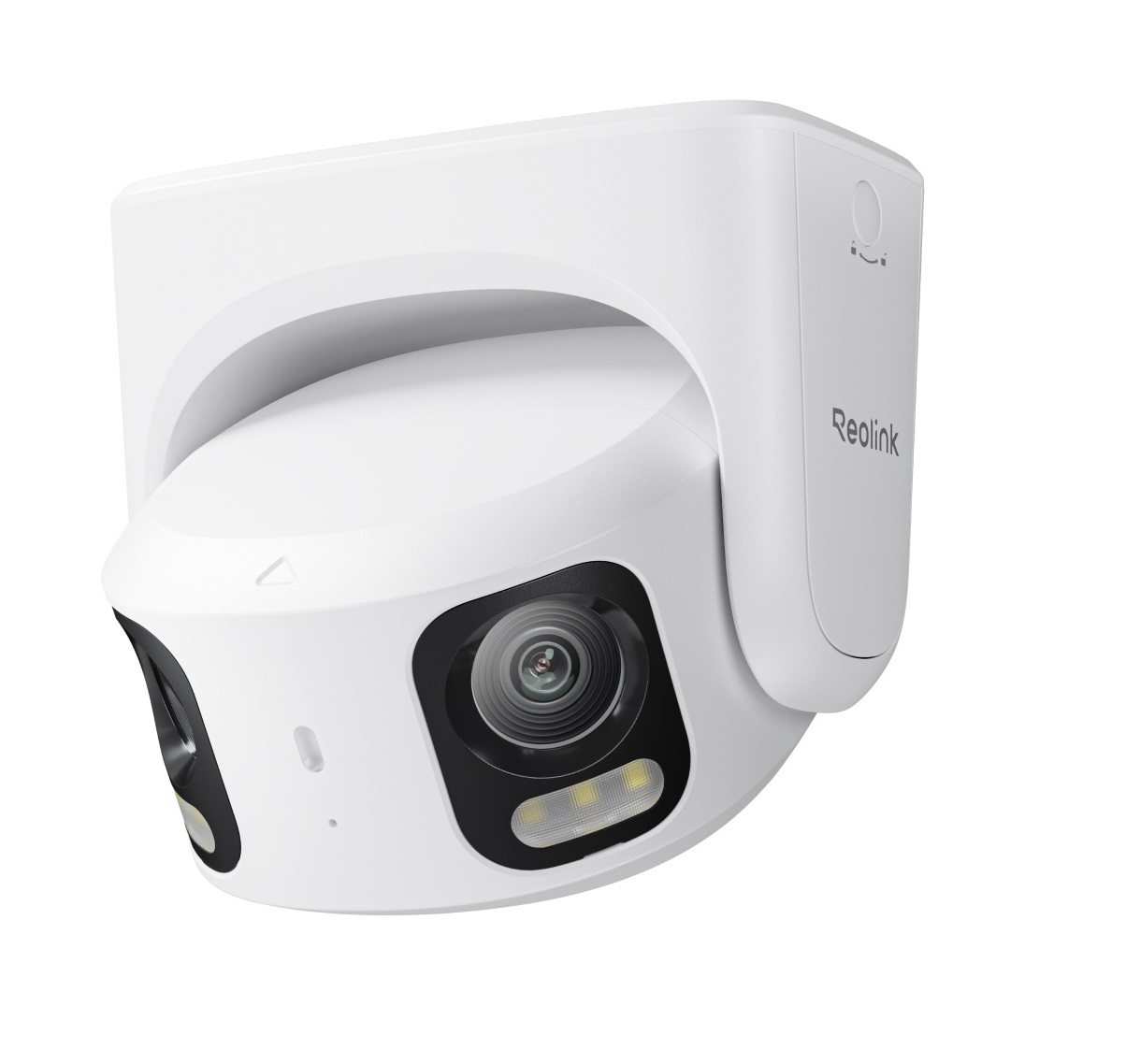

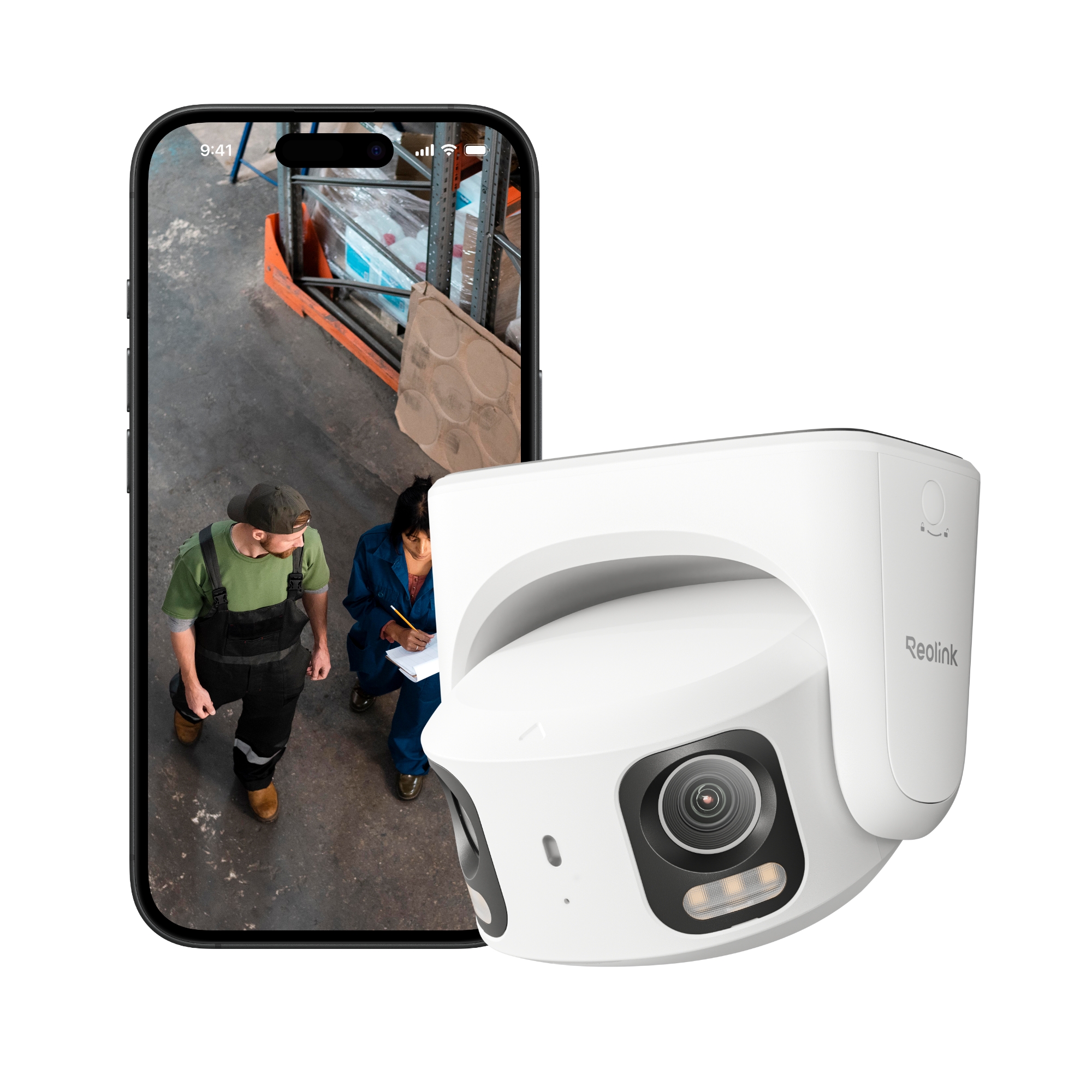

Reolink PRO IP POE Dual Illumination 16.0MP Dome 2.8mm Dual Camera SED RP-PCT16MD

• 16MP Ultra HD
• AI Video Search
• Color Night Vision
• 30m IR Distance
• Two-Way Audio
• Person/Vehicle/Animal Detection
• Dual-Lens 180° Panorama
• Motion Track

Panorama View

• The dual-lens camera uses advanced dual-image stitching algorithm to seamlessly stitch two views into a single 180° panoramic image with no blind spots. It ensures consistent brightness and color across the entire image for a natural viewing experience. With one unit covering what typically requires two, it reduces installation time and costs.

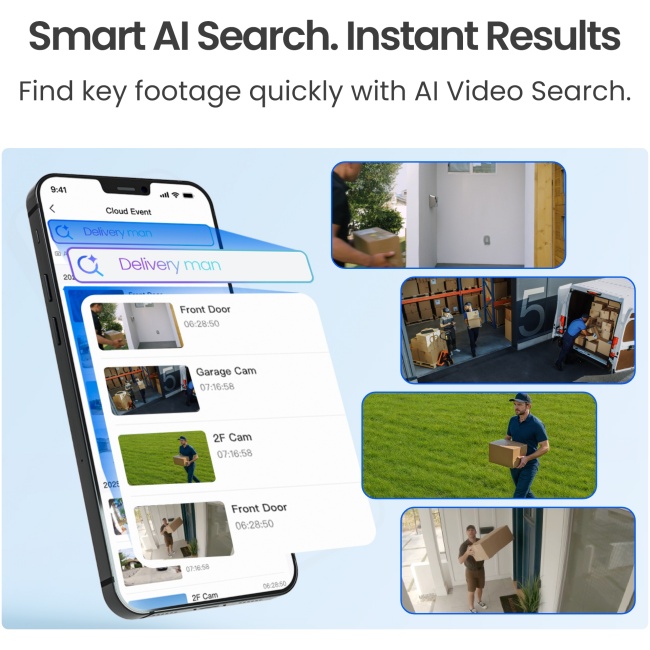

 AI Video Search

• Find the footage you need faster with AI- powered video search. Simply enter a natural language description—such as “a woman wearing a yellow t-shirt” or “vehicles”—to quickly locate relevant recordings. In addition to text-based search, when used with Reolink’s Professional Series NVR, the system offers advanced search tools, quick-access shortcuts, and the ability to revisit previous search history, making video retrieval smarter and more efficient

—

Video & Audio

• Image Sensor : 1/2.8" CMOS Sensor
• Resolution : 7680*2160 (16Megapixels)@25FPS
• Lens : f = 2.8 mm fixed, F = 1.6
• Zoom : N/A
• Video Compression : H.265/H.264
• Field of View : Horizontal: 180° Vertical: 60° Day & Night IR-cut filter with auto-switching
• Infrared Night Vision : Up to 30 meters(100ft); LED: 3pcs/850nm
• Color : Night Vision With spotlights:3pcs LEDs/4000K/400 lumens

Frame Rate

• Main Stream : 4fps – 25fps(default: 25fps)
• Sub Stream : 4fps – 20fps(default: 20fps)

Code Rate

• Main Stream : 3072Kbps -10240Kbps(default:8192Kbps)
• Sub Stream : 256Kbps – 2048Kbps(default: 1024Kbps)
• Audio : Two-way audio

AI

• AI Video Search : Yes
• Person & Object Detection : Person Detection, Vehicle Detection, Animal Detection, Motion Detection
• Smart Event Detection : Object Removal Detection(Beta) , Forgotten Object Detection(Beta)

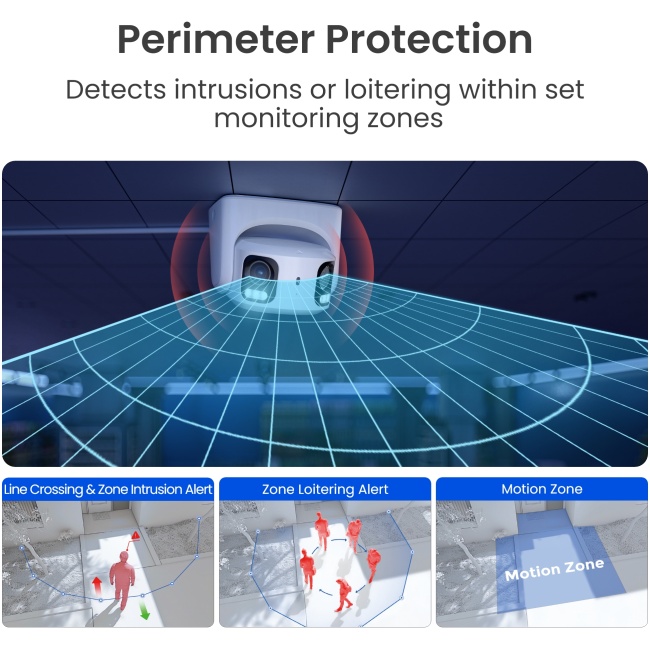

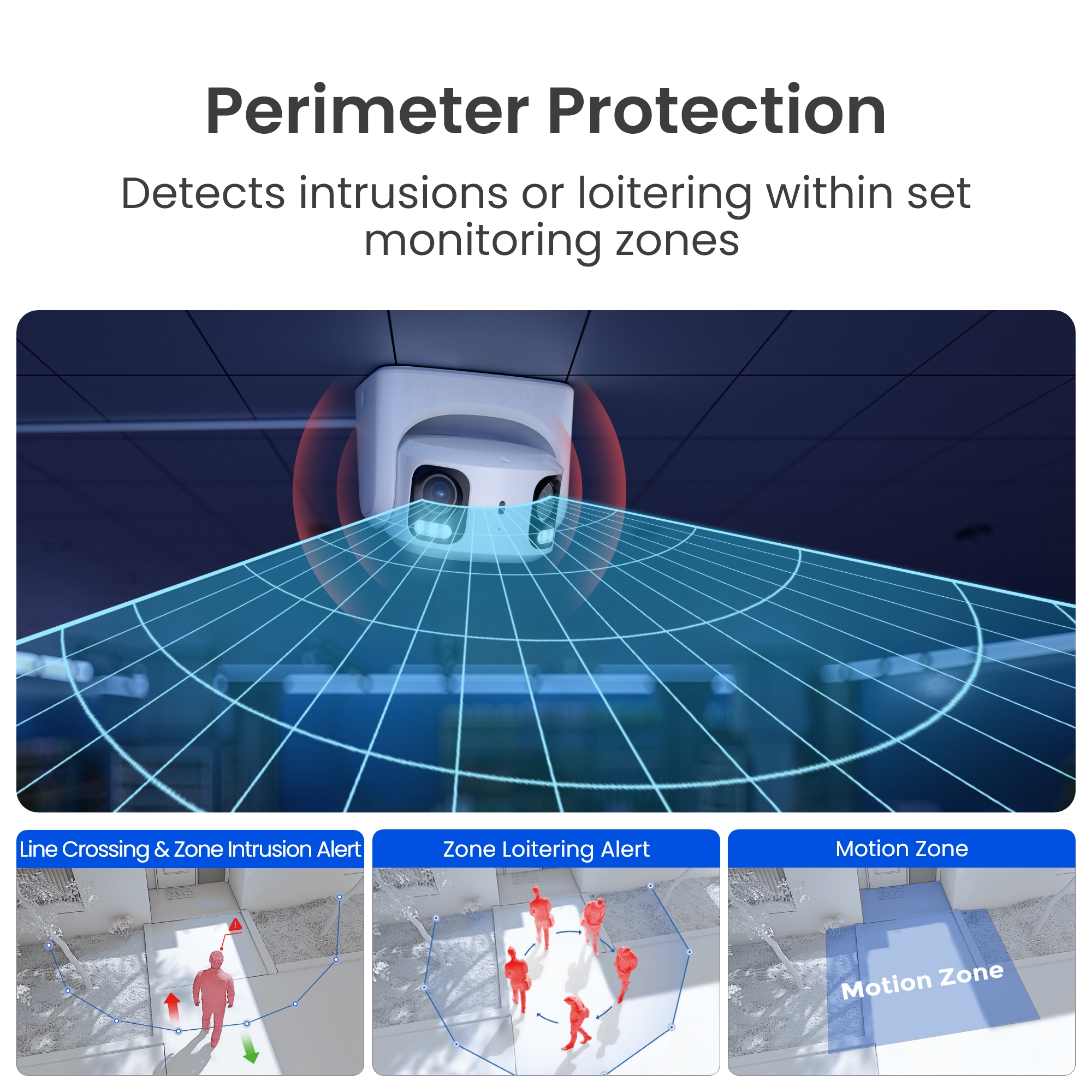

• Perimeter Protection : Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert
• Smart Detection Setting : Person object size; Person sensitivity; Person alarm delay;Vehicle object size; Vehicle sensitivity; Vehicle alarm delay; Animal object size; Animal sensitivity; Animal alarm delay; Detection zone

Software

• Browser : Supported Edge, Chrome, Firefox, Safari
• OS Supported PC : Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards

• HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P, ONVIF

User Access

• Max. 20 users (1 admin & 19 users);
• Max. 12 simultaneous streams (2 main & 10 sub streams)

Other Features

• Record Mode : Motion-triggered recording (default); Scheduled recording, 24/7 recording
• Smart Home Compatibility : Google Assistant
• AI-ISP : NO
• Motion Track : Yes
• Time Lapse : Yes

Power

• PoE : IEEE 802.3af, 48V, Active
• DC Power : DC 12.0V⎓ 2A, <12W

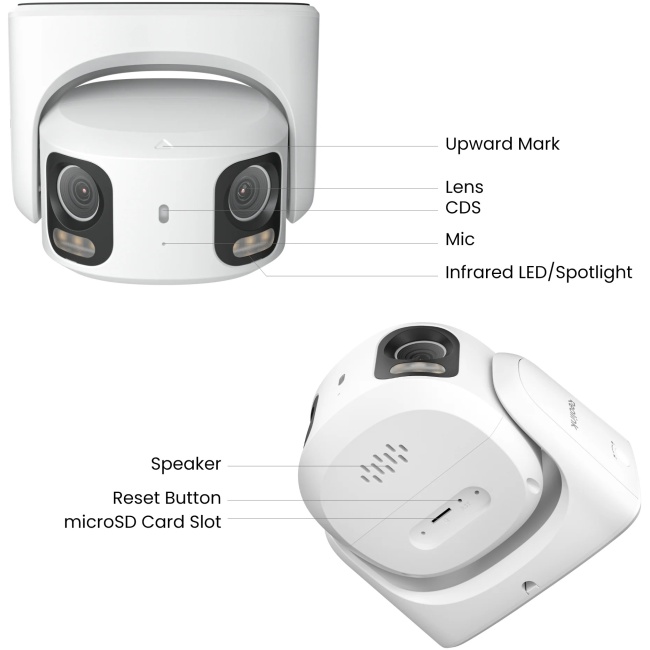

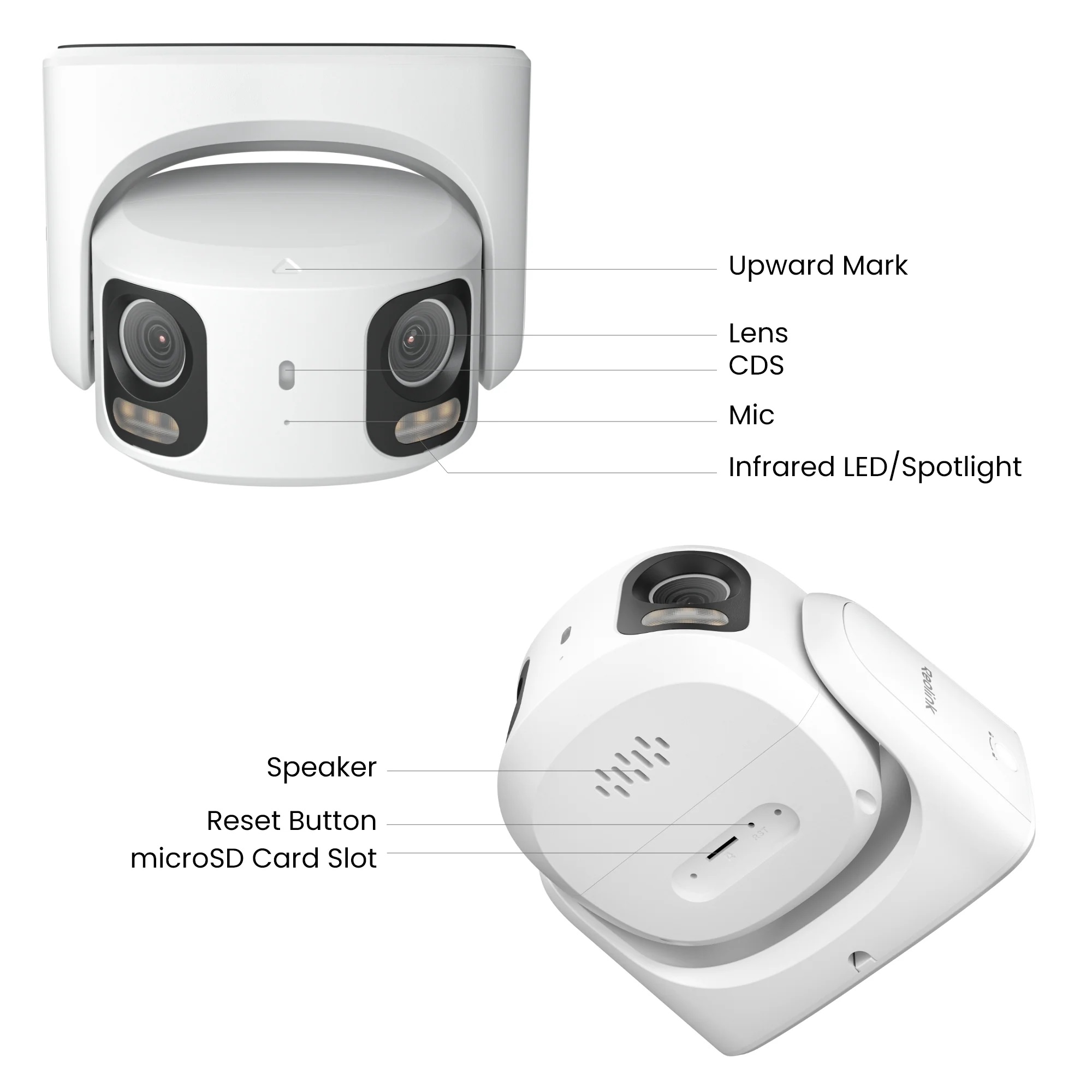

Interface

• Reset Button : Yes
• Ethernet : One 10M/100Mbps RJ45
• Storage : microSD card slot (Max. 512GB), Reolink NVR, FTP
• Audio In/Out : Built-in Microphone & Speaker

Working Environment

• Operating Temperature : -30°C~+55°C
• Operating Humidity : 10% ~ 90%
• Weatherproof : IP67

Mechanical

• Dimensions : 132mmx131mmx72mm
• Weight : (Without Accessories) 775g

Warranty

• 2-year limited warranty

—
