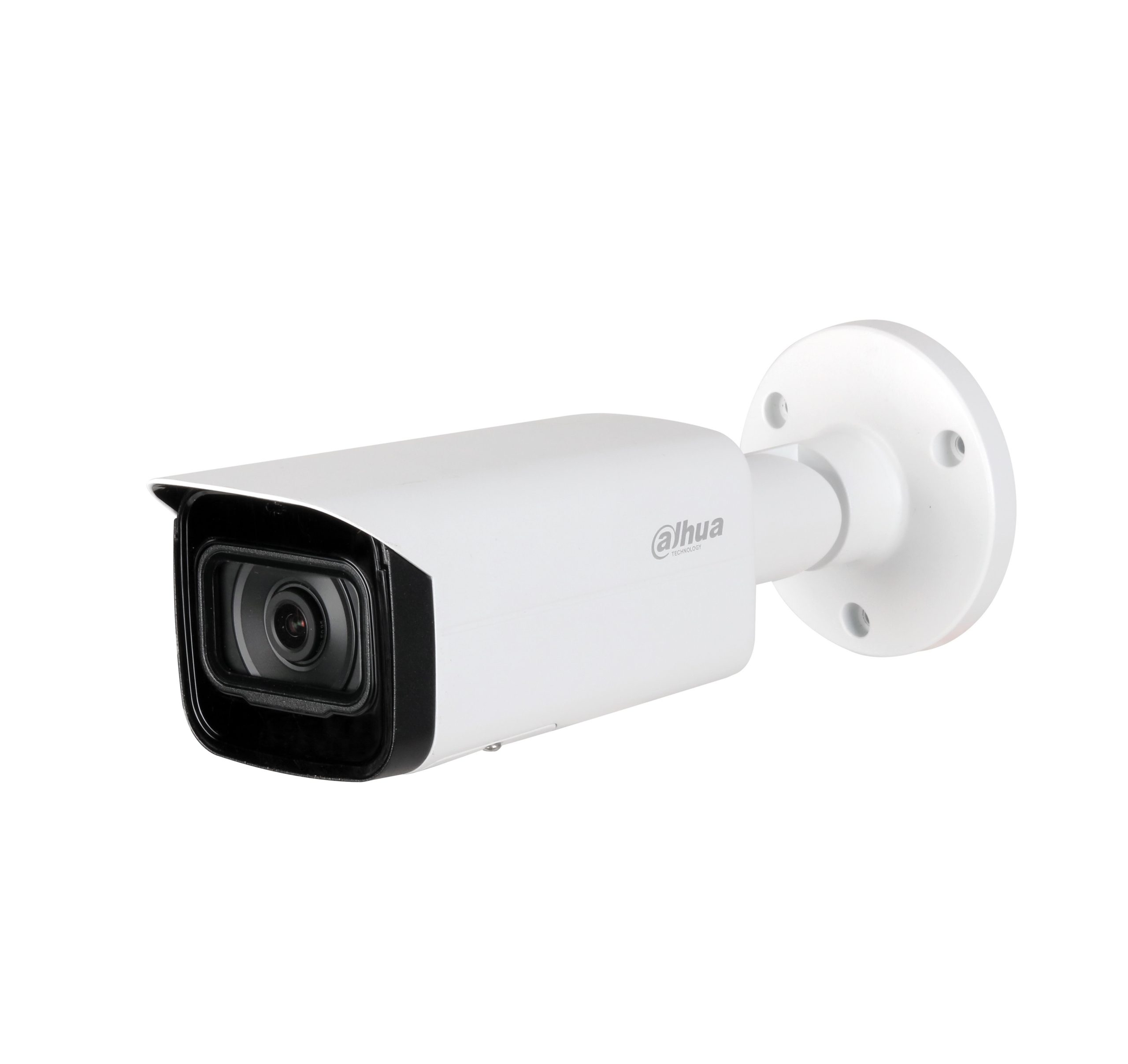

Dahua IP AI 5.0MP 2.8mm Bullet WizMind HFW5541T-ASE-0280B-S3

• AcuPick : Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. Please note that works only with  the new NVR 5xxx -EI.
• 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
• Outputs max. 5 MP (2960×1668) @25/30fps
• Built-in IR LED, and the max. illumination distance is 80 m
• ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC
• 12 VDC/PoE power supply; ePoE
• IP67 and IK10 protection
• SMD 3.0

—

Camera

• Image Sensor : 1/2.7" CMOS
• Max. Resolution : 2960 (H) × 1668 (V)
• ROM : 4 GB
• RAM : 1 GB
• Scanning System : Progressive
• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination : 0.0009 [email protected] (Color,30IRE) / 0.0005 [email protected] (B/W,30IRE) / 0 lux (Illuminator on)
• S/N Ratio : >56 dB
• Illumination Distance : Up to 80 m (IR)
• Illuminator On/Off Control : Auto; Manual
• Illuminator Number : 4 (IR LED)

Lens

• Lens Type : Fixed-focal
• Lens Mount : M12
• Focal Length : 2.8 mm
• Max. Aperture : F1.6
• Field of View : H: 111°; V: 58°; D: 132°
• Iris Control : Fixed
• Close Focus Distance : 1.1 m

DORI Distance

• Lens : 2.8 mm
• Detect : 63.6 m
• Observe : 25.4 m
• Recognize : 12.7 m
• Identify : 6.4 m
• DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool

Intelligence

• IVS (Perimeter Protection) : Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
• Smart Object Detection : Smart abandoned object; smart missing object
• SMD : SMD 3.0
• AcuPick : Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets
• AI SSA : Yes
• Face Detection : Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting
• People Counting : Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
• Heat Map : Yes
• Video Metadata : Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload
• Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling
• Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
• Human body attributes: gender, top/bottom type and color, bag, hat and umbrella
• Face attributes: gender, age, expressions, glasses, face mask and beard
• Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
• Smart Sound Detection : Yes

Video

• Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec : Smart H.265+; Smart H.264+
• AI Coding : AI H.265; AI H.264
• Video Frame Rate : Main stream: 2960 × 1668@(1–25/30 fps) / Sub stream: D1@(1–25/30 fps) / Third stream: 1080p@(1–25/30 fps) / Fourth stream: 720p@(1–25/30 fps) / The values are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability : 4 streams

• Resolution : 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control : CBR/VBR
• Video Bit Rate : H.264: 32 kbps–16384 kbps / H.265: 12 kbps–11776 kbps
• Day/Night : Auto(ICR)/Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120 dB
• Scene Self-adaptation (SSA)  : Yes
• White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control : Auto
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest (RoI) : Yes (4 areas)
• Smart Illumination : Yes
• Defog : Yes
• Image Rotation : 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
• Mirror : Yes
• Privacy Masking : 8 areas
• LDC : Yes (only 2.8mm/3.6mm supports)
• Audio
• Built-in MIC : Yes
• Audio Compression : G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception

Network

• Network Port : RJ-45 (10/100 Enhancement Base-T)
• SDK and API : Yes
• Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
• Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI
• User/Host : 20 (Total bandwidth: 80 M)
• Storage : FTP; SFTP; Micro SD card (support max. 512 GB); NAS
• Browser : IE: IE 9 and later / Chrome: Chrome 102 and later / Firefox: Firefox 88 and later
• Management Software : SmartPSS Lite; DSS; DMSS
• Mobile Client : iOS; Android
• Cyber Security : Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification

• CE-LVD: EN62368-1;
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
• FCC: 47 CFR FCC Part 15, Subpart B;
• UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

• Audio Input : 1 channel (RCA port)
• Audio Output : 1 channel (RCA port)
• Alarm Input : 1 channel in: wet contact, 5 mA 3V–5 VDC
• Alarm Output : 1 channel out: wet contact, 300mA 12V DC

Power

• Power Supply : 12 VDC/PoE (802.3af)/ePoE
• Dual Power Backup : When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
• Power Consumption : Basic: 4.1 W (12 VDC); 5.2 W (PoE) / Max. (H.265+ WDR+ Intelligence on+IR on): 8.3 W (12 VDC); 9.8 W (PoE)

Environment

• Operating Temperature : –40 °C to +60 °C
• Operating Humidity : ≤95%
• Storage Temperature : –40 °C to +60 °C
• Storage Humidity : 10%–95% (RH), non-condensing
• Protection : IP67; IK10

Structure

• Casing Material : Metal
• Product Dimensions : 244.1 mm × 79.0 mm × 75.9 mm (L × W × H)
• Net Weight : 0.82 kg
• Gross Weight : 1.08 kg

—
