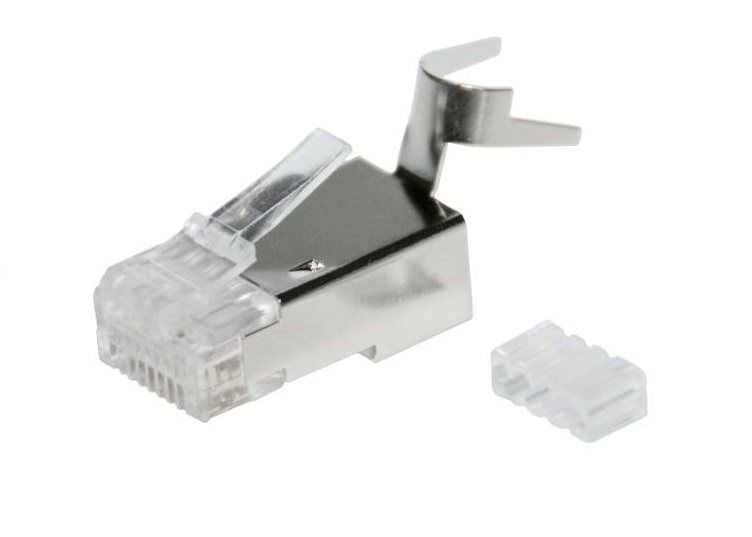

Solarix CAT6A/CAT7 RJ45 Ethernet Plug Shielded Per Piece

• These shielded Solarix RJ45 8p8c connectors with insert are designed for Category 6A and Category 7 cables
• The connectors are specially adapted so that it can be conveniently crimped on cables with thicker conductors (up to a diameter of 0.57 mm) and thicker PE insulation (up to a diameter of 1.50 mm)
• The maximum cable thickness can be up to 8.00 mm. The contacts of these Solarix Category 6A connectors are covered with 50µ gold

—

• Connectors and Interfaces
• Type of connector:RJ45
• Shielding:Yes
• Suitable for:Solid
• Stacked:Yes
• Min. lifetime [plugging]:1000
• Contact positions:8p8c
• Max. operating humidity [%]:93
• Cover contacts – gold [µm]:50
• GeneralCategory:CAT6a, CAT7
• Ethernet support:10G Base-T

—
