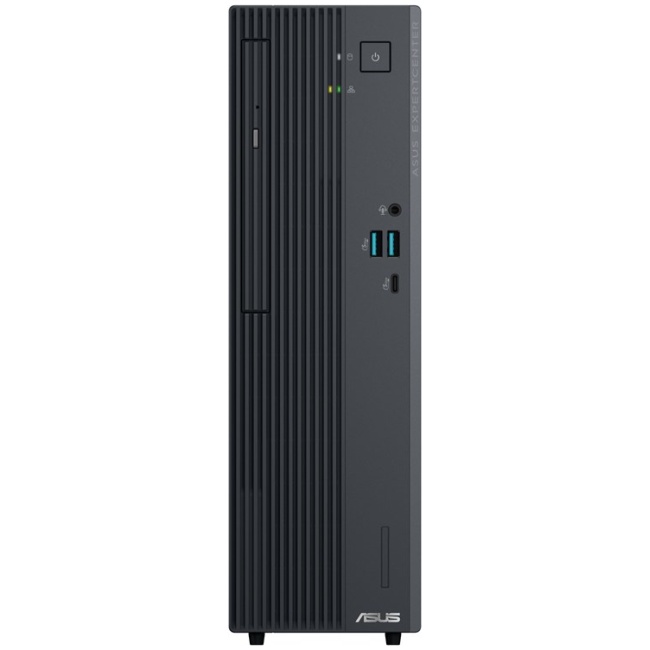

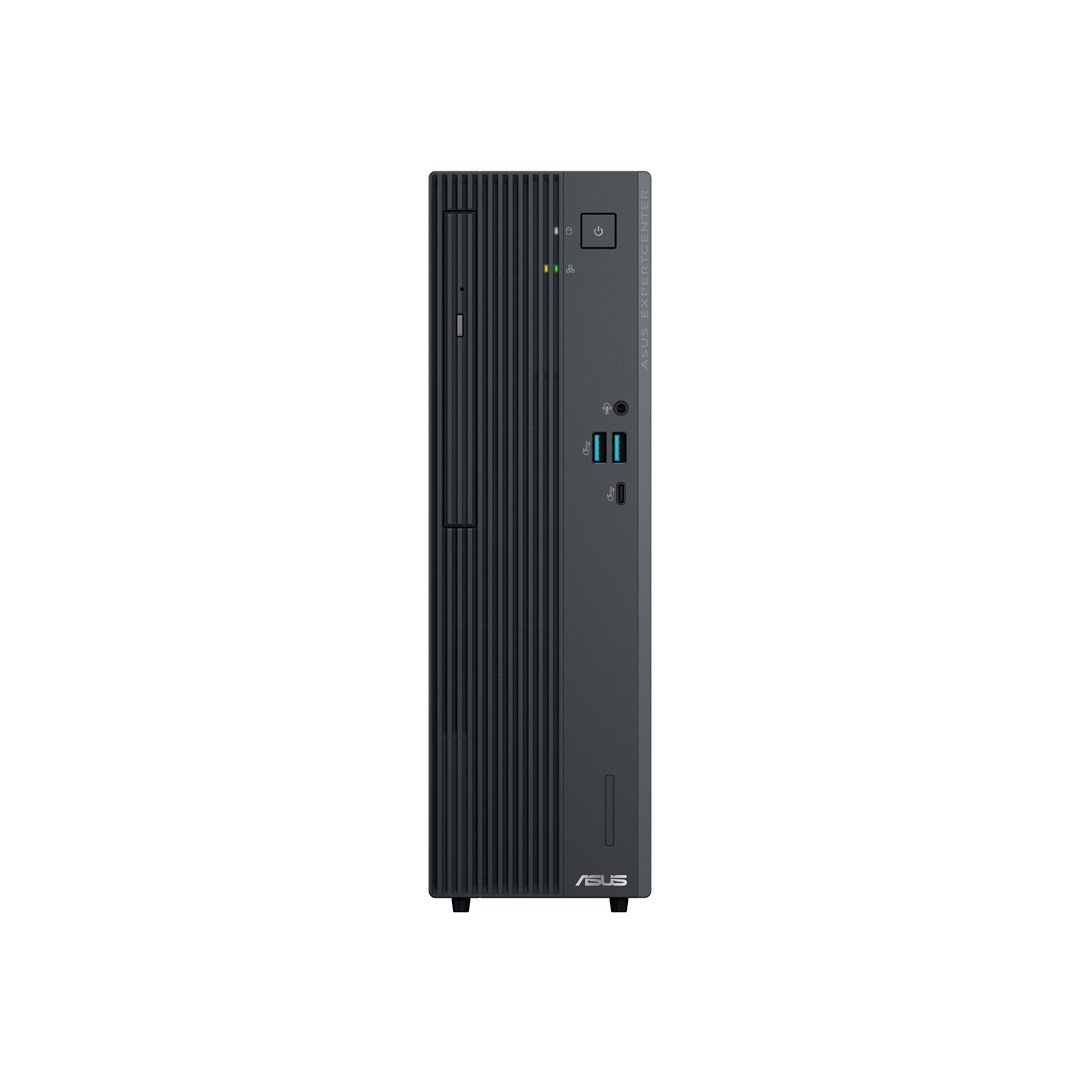

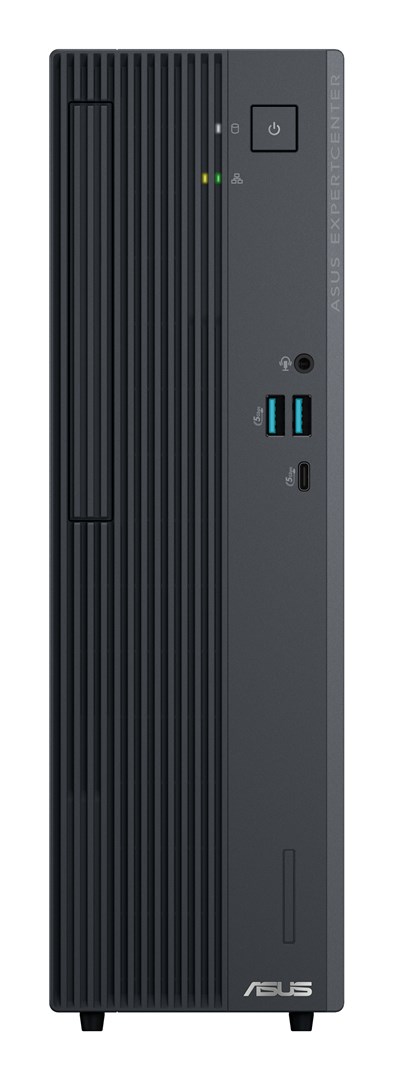

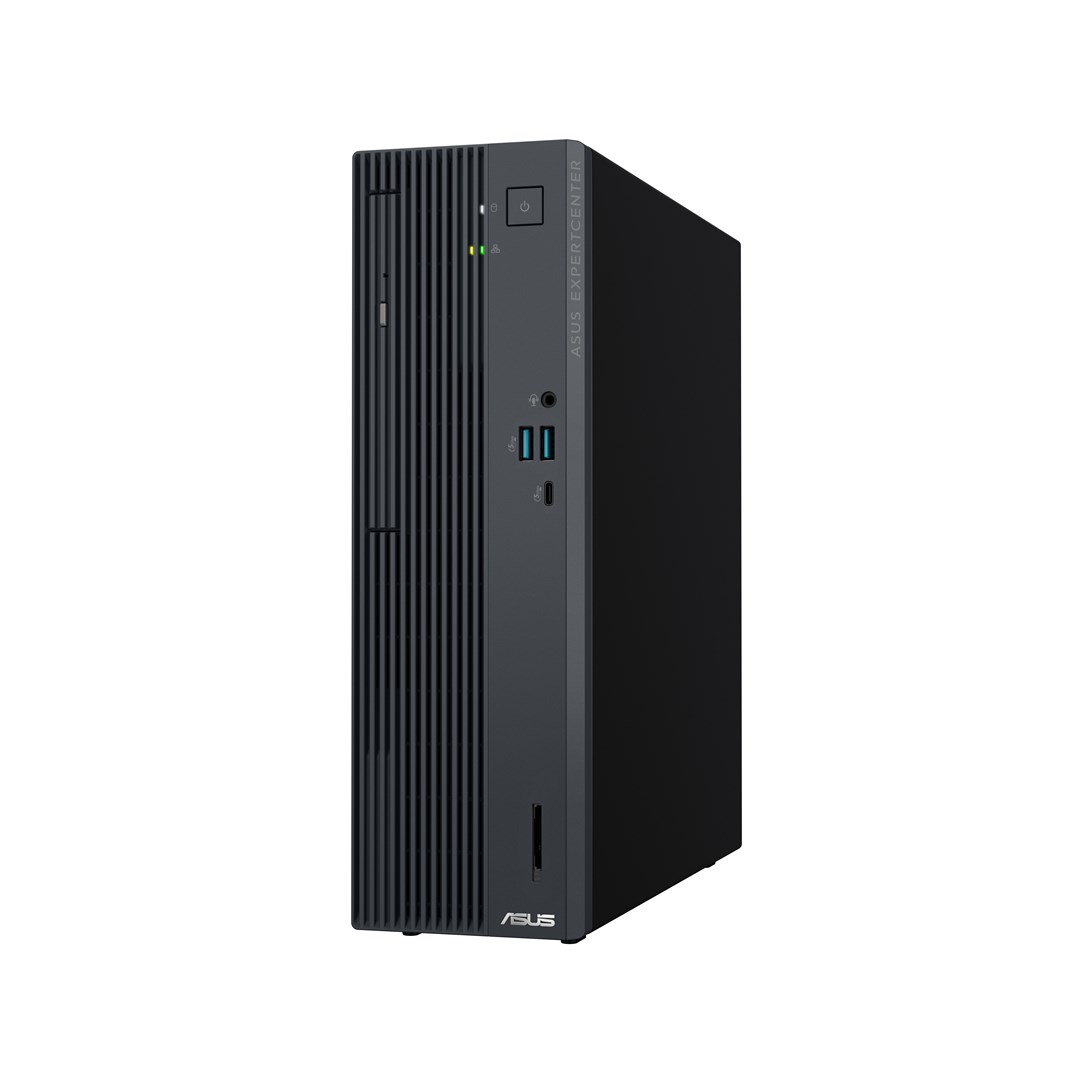

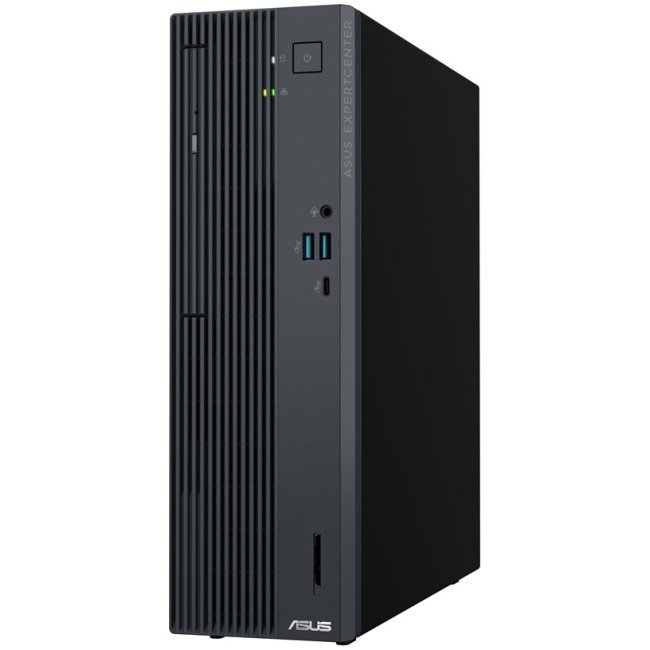

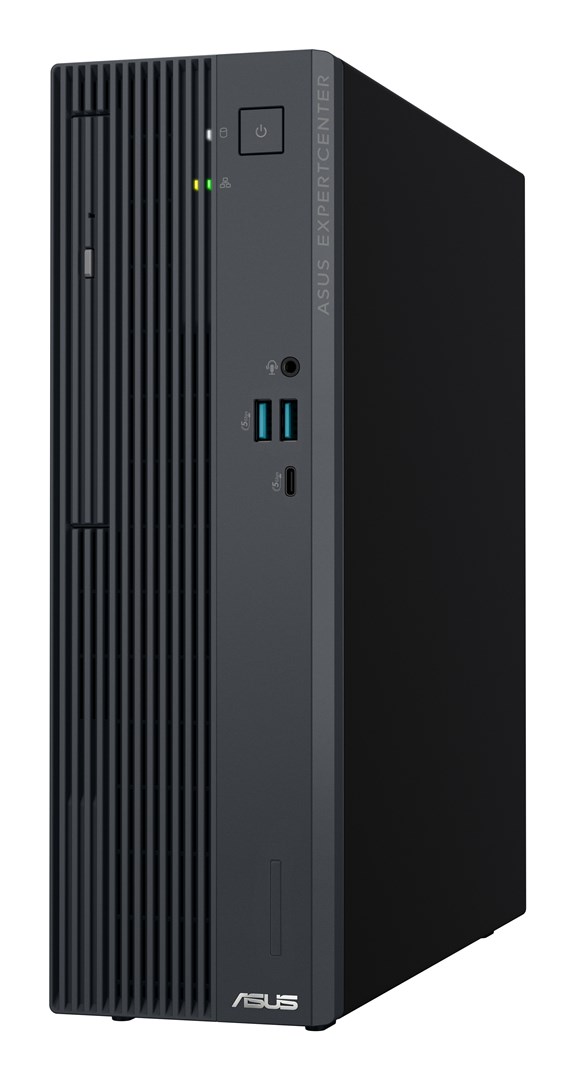

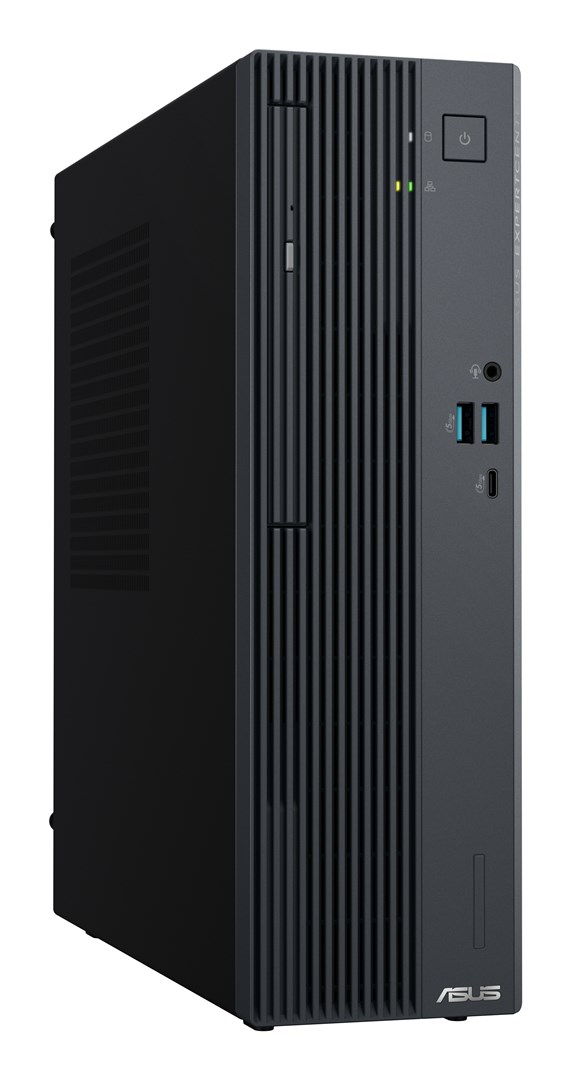

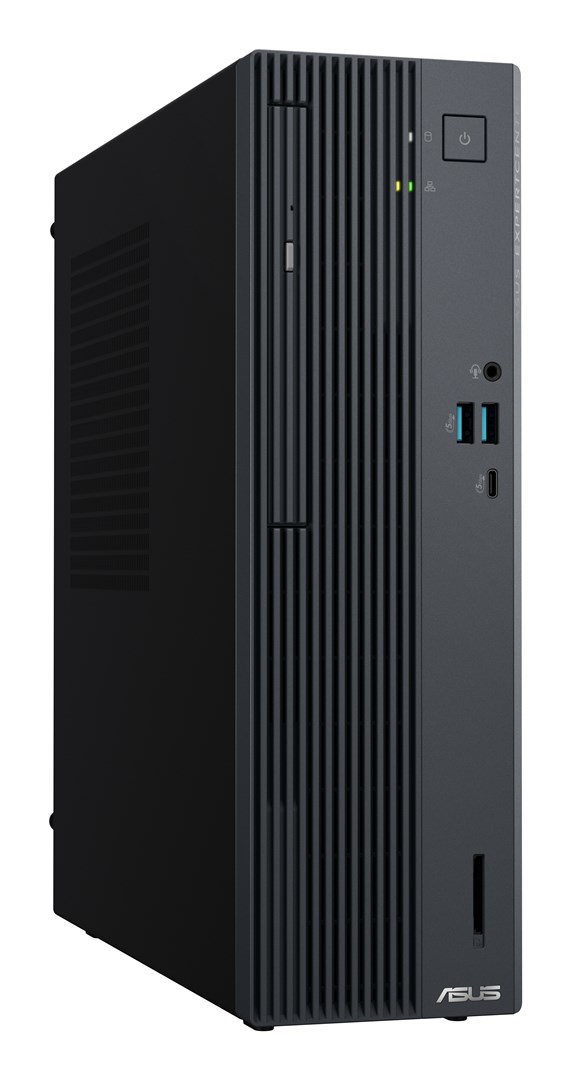

ASUS ExpertCenter P500 SFF P500SV-07240H0040 Intel Core 7 240H 16 GB DDR5-SDRAM 512 GB SSD PC Grey

Technical Specifications

Processor

Efficient-core Max Turbo Frequency: 4 GHz

Efficient cores: 4

Processor cache type: Smart Cache

Processor model: 240H

Processor threads: 16

Processor base power: 45 W

Performance-core Max Turbo Frequency: 5.2 GHz

Performance-core base frequency: 2.5 GHz

Processor cache: 24 MB

Processor generation: Intel Core (Series 2)

Graphics

On-board graphics card: Yes

On-board GPU manufacturer: Intel

On-board graphics card family: Intel® Graphics

Discrete graphics card: No

Discrete graphics card model: Not available

On-board graphics card model: Intel® Graphics

:

:

:

:

:

:

:

:

:

Memory

Internal memory type: DDR5-SDRAM

Memory slots: 2x DIMM

Internal memory: 16 GB

Memory layout (slots x size): 1 x 16 GB

Maximum internal memory: 64 GB

:

:

:

:

:

Design

Colour name: Grey

Chassis type: SFF

Cable lock slot type: Kensington

Introduction year: 2025

Number of 3.5" bays: 1

Product colour: Grey

Cable lock slot: Yes

:

:

:

Power

Power supply input frequency: 50 – 60 Hz

Power supply: 180 W

Power supply input voltage: 100 – 240 V

80 PLUS certification: 80 PLUS Bronze

:

:

:

:

:

:

Weight & dimensions

Width: 93 mm

Height: 309 mm

Depth: 296 mm

Weight: 5.06 kg

:

:

:

:

:

:

Network

Wi-Fi: Yes

Cabling technology: 10/100/1000Base-T(X)

Wi-Fi standards: Wi-Fi 6 (802.11ax)

Bluetooth version: 5.4

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Ethernet LAN: Yes

Bluetooth: Yes

Ethernet LAN data rates: 1000 Mbit/s

Antenna type: 2×2

:

Performance

Password protection type: User

Trusted Platform Module (TPM) version: 2.0

Product type: PC

Market positioning: Business

Password protection: Yes

Audio system: High Definition Audio

Trusted Platform Module (TPM): Yes

Audio output channels: 7.1 channels

:

:

Packaging data

Package width: 490 mm

Package depth: 168 mm

Package height: 510 mm

:

:

:

:

:

:

:

Packaging content

Keyboard included: No

Mouse included: No

:

:

:

:

:

:

:

:

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

:

:

:

:

:

:

:

:

:

Display

Display included: No

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Software

Operating system installed: No

:

:

:

:

:

:

:

:

:

Certificates

Compliance certificates: REACH

:

:

:

:

:

:

:

:

:

Storage

Total storage capacity: 512 GB

SSD form factor: M.2

Storage media: SSD

NVMe: Yes

SSD interface: PCI Express 4.0

SSD capacity: 512 GB

Total SSDs capacity: 512 GB

M.2 SSD size: 2280 (22 x 80 mm)

Number of SSDs installed: 1

Optical drive type: No

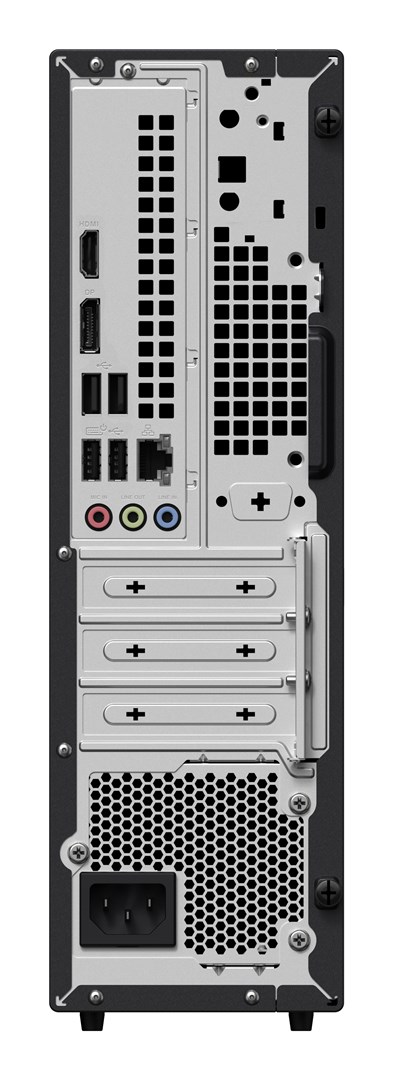

Ports & interfaces

Number of rear audio ports: 3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Line-in: Yes

Number of front USB ports: 3

HDMI ports quantity: 1

Combo headphone/mic port: Yes

Number of front audio ports: 1

Line-out: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI version: 1.4

Sustainability

Sustainability certificates: ENERGY STAR

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
