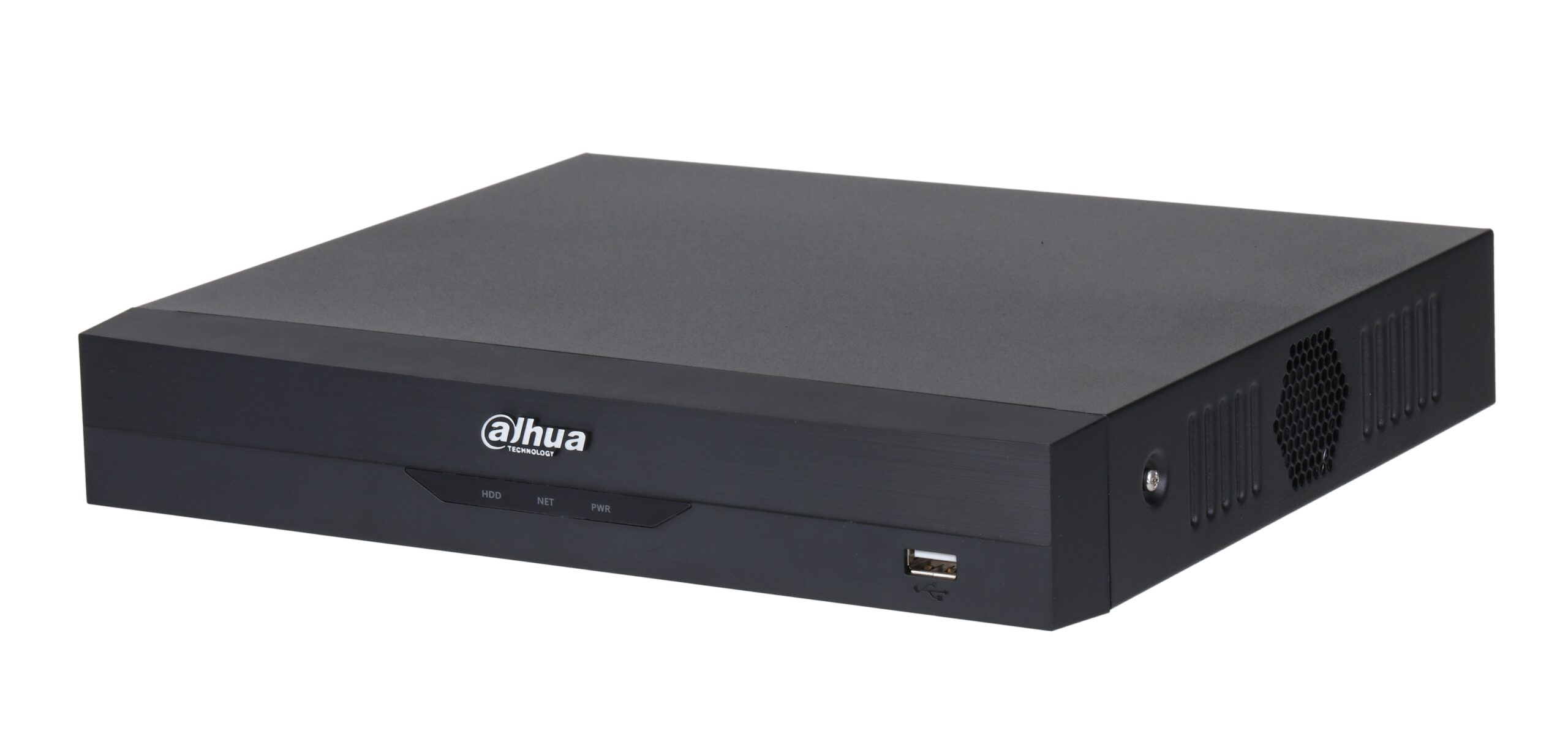

Dahua XVR 4K 4channels H265+ XVR5104HS-4KL-I3/T

*Dolynk cloud version: DMSS 2.3.0 and above, Dolynk Care 2.53.00 and above

• 4-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
• 4-channel AcuPick for analog channels which improves the efficiency of target retrieval
• 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
• 2-channel face recognition for analog channels which supports face comparison
• 4-channel SMD Plus for analog channels or 8-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
• 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
• Supports HDCVI, AHD, TVI, CVBS and IP video input
• Supports up to 8-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 64 Mbps
• Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
• Smart H.265+ and H.265 dual-stream video compression

—

System

• Main Processor : Industrial-grade processor
• Operating System : Embedded Linux
• Operating Interface : Web; Local GUI

AcuPick

• AcuPick AI by Recorder (Number of Channels) : 4 channels

Perimeter Protection

• Perimeter Performance AI by Recorder (Number of Channels) : 4 channels / 10 IVS rules for each channel

Face Detection

• Face Attributes : 6 attributes
• Face Detection Performance of AI by Recorder (Number of Channels) : 2 channels (up to 12 face images/s each channel)

Privacy Protection

• Privacy Protection Performance of AI by Recorder (Number of Channels) : 1 channel

Face Recognition

• Face Database Capacity : Up to 10 face databases with 20,000 images.
• Face Recognition Performance of AI by Recorder (Number of Channels) : 2 channels

SMD

• SMD Plus by Recorder : 4 channels : Secondary filtering for human and vehicle / reducing false alarms caused by leaves / rain and lighting condition change
• SMD by Camera : 8 channels

AI Video Quality Analytics

• AI Video Quality Analytics by Recorder : 4 channels : Supports detecting brightness levels / color cast / defocus / overexposure / contrast levels / black and white

Scene Changing

• Scene Changing by Recorder : 1 channel

Irregular Black Block Masking

• Irregular Black Block Masking by Recorder : 1 channel

EPTZ

• EPTZ by Recorder : 1 channel

Audio and Video

• Analog Camera Input : 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
• Camera Input : 1. CVI: 4K@25/30 fps / [email protected]/15 fps / 6 MP@20 fps / 5 MP@25 fps / 5 MP@20 fps / 4 MP@25/30 fps / 1080p@25/30 fps / 720p@25/30 fps / 720p@50/60 fps / 2. TVI: 4K@15 fps / 5 MP(2560 x 1944)@20 fps / 5 MP(2960 x 1665)@20 fps / 4 MP@25/30 fps / 3 MP@25/30 fps / 1080p@25/30 fps / 720p@25/30 fps / 3. AHD: 4K@15 fps / 5 MP@20 fps / 4 MP@25/30 fps / 3 MP@25/30 fps / 1080p@25/30 fps / 720p@25/30 fps
• IP Camera Input : Up to 8 channels of IPC access / 4 IP channels by default + 4 channels (analog channels are converted to IP channels) / Incoming bandwidth : 64 Mbps / recording bandwidth : 64 Mbps and outgoing bandwidth : 64 Mbps / *After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used.
• Encoding Capacity : Encode Enhancement disabled : Main stream : the 1st channel 4K@(1 fps–10 fps) / others 4K@(1 fps–7 fps) / the 1st channel 5 MP@(1 fps–20 fps) / others 5 MP@(1 fps–12 fps) / the 1st channel 4 MP/3 MP@(1 fps–20 fps) / others 4 MP/3 MP@(1 fps–15 fps) / 4K@(1 fps–8 fps) / 6 MP@(1 fps–10 fps) / 4K-N/5 MP@(1 fps-15 fps) / 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps) / Sub stream : 960H@(1 fps–15 fps) / D1/CIF@(1 fps–25/30 fps) / Encode Enhancement enabled : Main stream : the 1st channel 4K@(1 fps–15 fps) / others 4K@(1 fps–7 fps) / the 1st channel 6 MP@(1 fps–20 fps) / others 6 MP@(1 fps–10 fps) / the 1st channel 5 MP@(1 fps–25 fps) / others 5 MP@(1 fps–12 fps) / the 1st channel 4 MP/3 MP@(1 fps–25/30 fps) / others 4 MP/3 MP@(1 fps–15 fps) / 4K/6 MP@(1 fps–10 fps) / 4K-N/5 MP@(1 fps-15 fps) / 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps) / Sub stream : 960H@(1 fps–15 fps) / D1/CIF@(1 fps–25/30 fps) / *When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used.
• Dual-stream : Yes
• Video Bit Rate : 32 kbps–6144 kbps
• Audio Sampling : 8 kHz, 16 bit
• Audio Bit Rate : 64 kbps
• Video Output : 1 HDMI / 1 VGA / HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 / VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 / *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
• Multi-screen Display : When IP extension mode not enabled: 1/4 / When IP extension mode enabled: 1/4/8/9
• Third-party Camera Access : Panasonic / Sony / Hanwha / Axis / Arecont / ONVIF

Compression Standard

• Video Compression : AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264
• Audio Compression : G.711a / G.711u / PCM

Network

• Network Protocol : HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / RTSP / UDP / NTP / DHCP / DNS / SMTP / UPnP / IP Filter / FTP / DDNS / SNMP / Alarm Server / P2P / Auto Registration / IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access : iOS / Android
• Interoperability : ONVIF 25.06 (Profile T / Profile S / Profile G) / CGI / SDK
• Browser : Chrome / IE / Safari / Edge / Firefox

Recording Playback

• Record Mode : General / alarm / motion detection / intelligent / POS
• Recording Playback : 1/4
• Backup Method : USB device and network
• Playback Mode : Instant playback / general playback / event playback / tag playback / smart playback

Alarm

• General Alarm : Motion detection / alarm box / HDCVI alarm / camera external alarm / network alarm / PIR alarm
• Anomaly Alarm : Error (no disk / disk error / low space / low quota space / network disconnection / IP conflict / MAC conflict) / video loss / video tampering / camera offline
• Intelligent Alarm : Face detection / face recognition / perimeter protection / SMD Plus
• Alarm Linkage : Record / snapshot (panoramic) / IPC external alarm output / audio / buzzer / log / preset / email

Ports

• Audio Input : 1-channel RCA / 4-channel BNC (Coaxial Audio)
• Audio Output : 1-channel RCA
• Two-way Talk : Coaxial two-way talk: 4-channel BNC / Local and network user two-way talk: Shares the same audio input with the first channel
• Disk Interface : 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature
• RS-485 : 1
• USB : 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
• HDMI : 1
• VGA : 1
• Network Port : 1 (10/100 Mbps Ethernet port / RJ-45)

General

• Power Supply : 12 VDC / 2 A
• Power Consumption : < 7 W (without HDD)
• Net Weight : 0.88 kg (1.94 lb)
• Gross Weight : 1.45 kg (3.20 lb)
• Product Dimensions : 260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H)
• Packaging Dimensions : 344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30") (W × D × H)
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–90% (RH), non-condensing
• Installation : Desktop
• Certifications : CE-LVD: IEC 62368-1:2014 / CE-EMC: EN IEC 61000-3-2:2019 / EN 61000-3-3:2013+A1:2019 / EN 55032:2015+A11:2020 / EN 55035:2017+A11:2020 / EN 55024:2010+A1:2015 / EN 50130-4:2011+A1:2014

—
