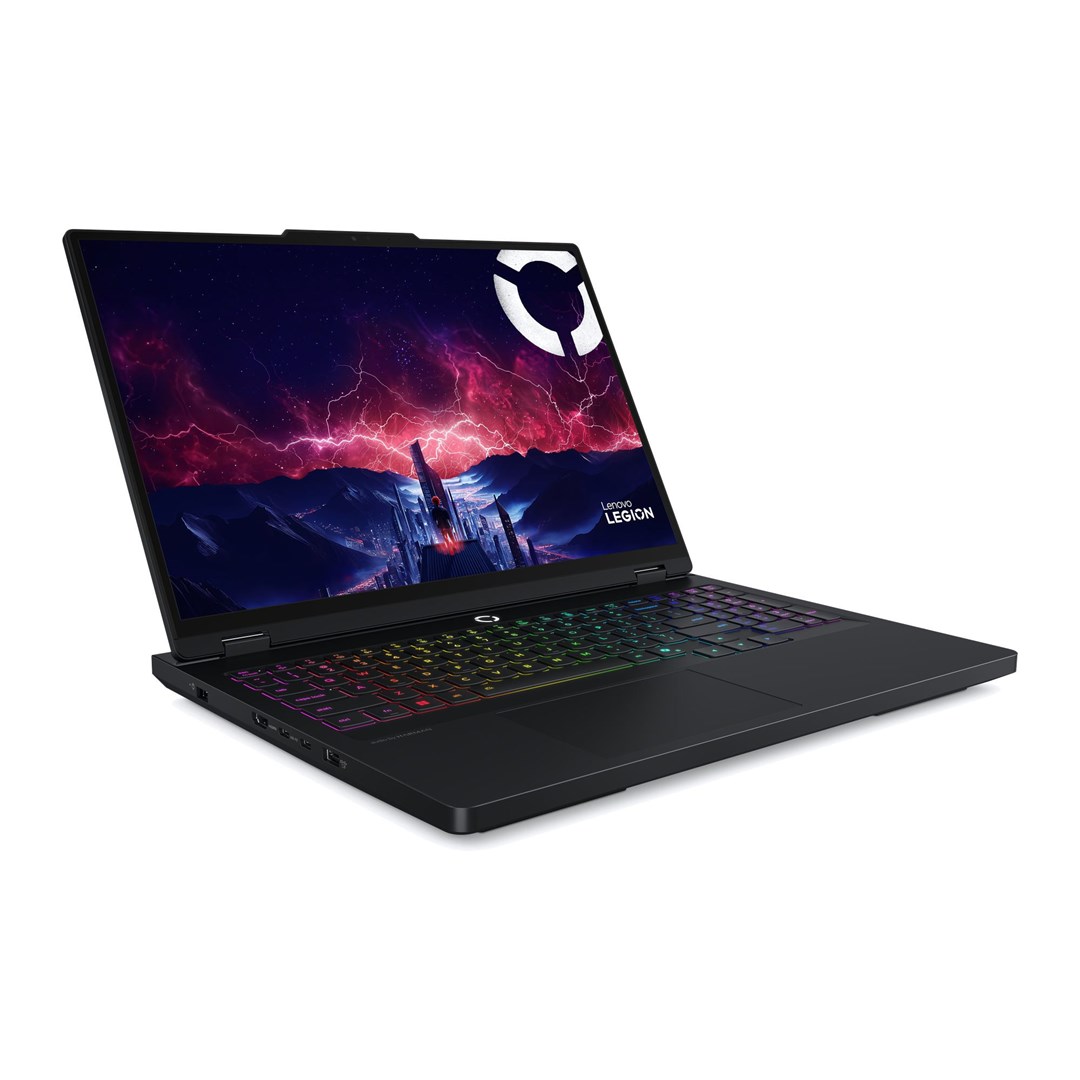

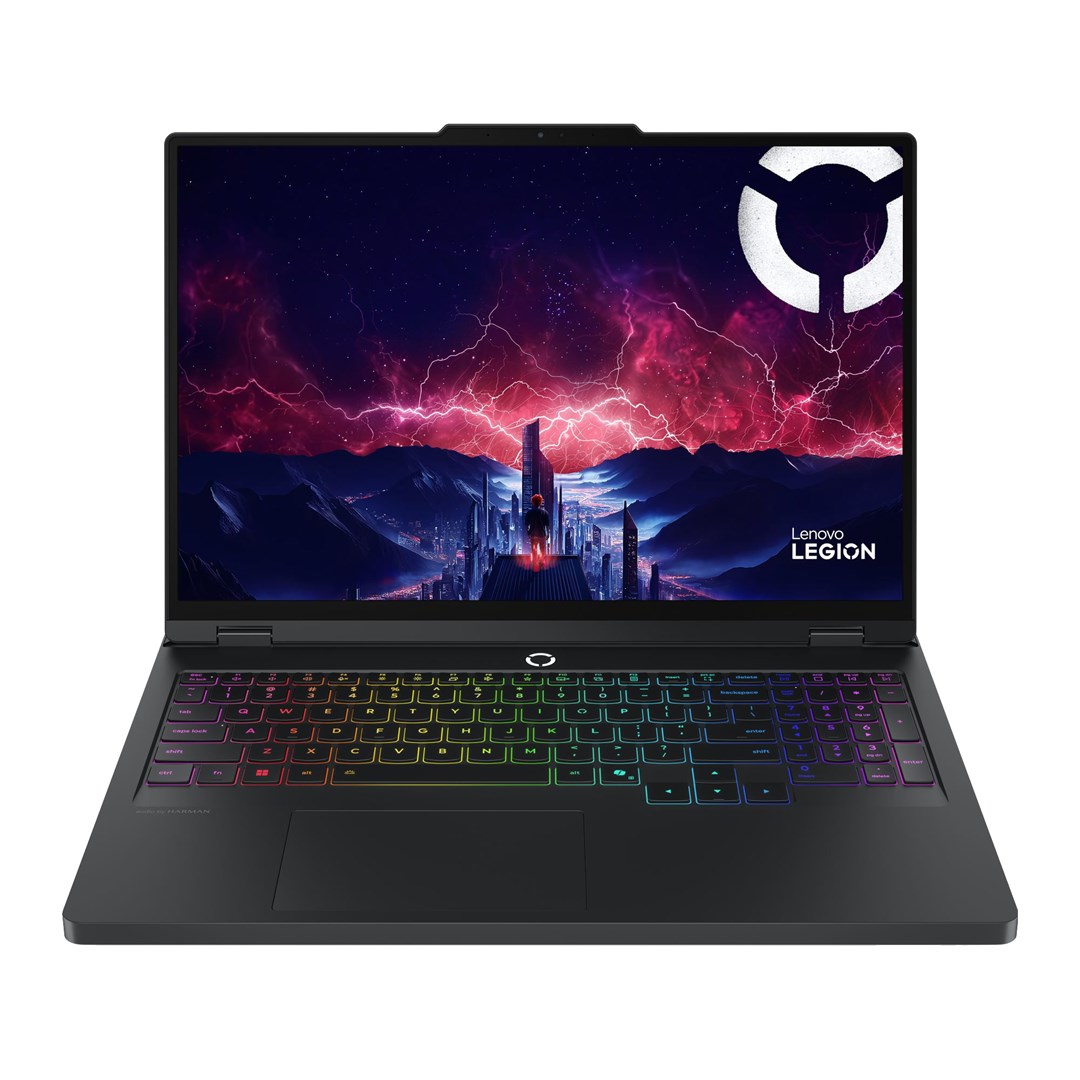

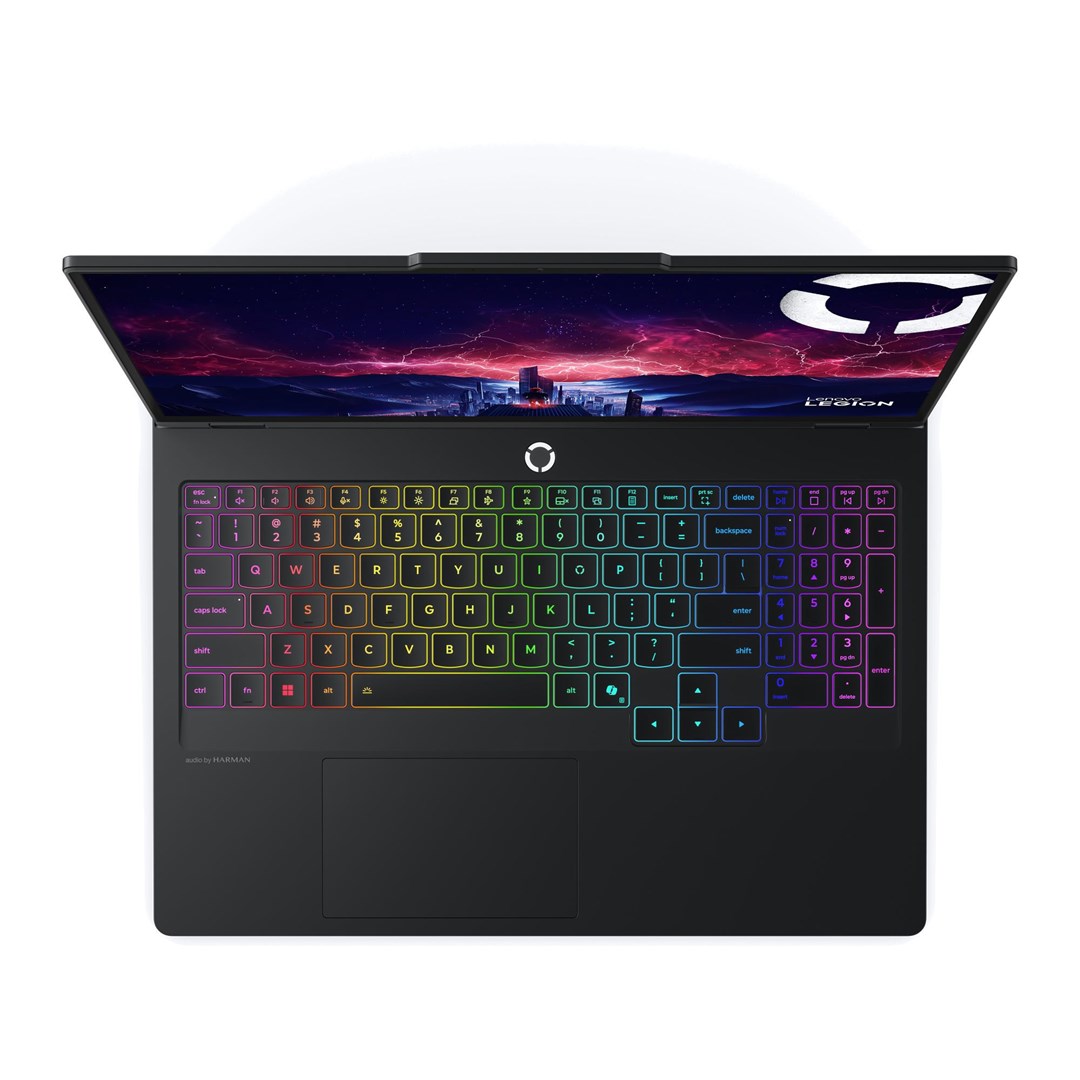

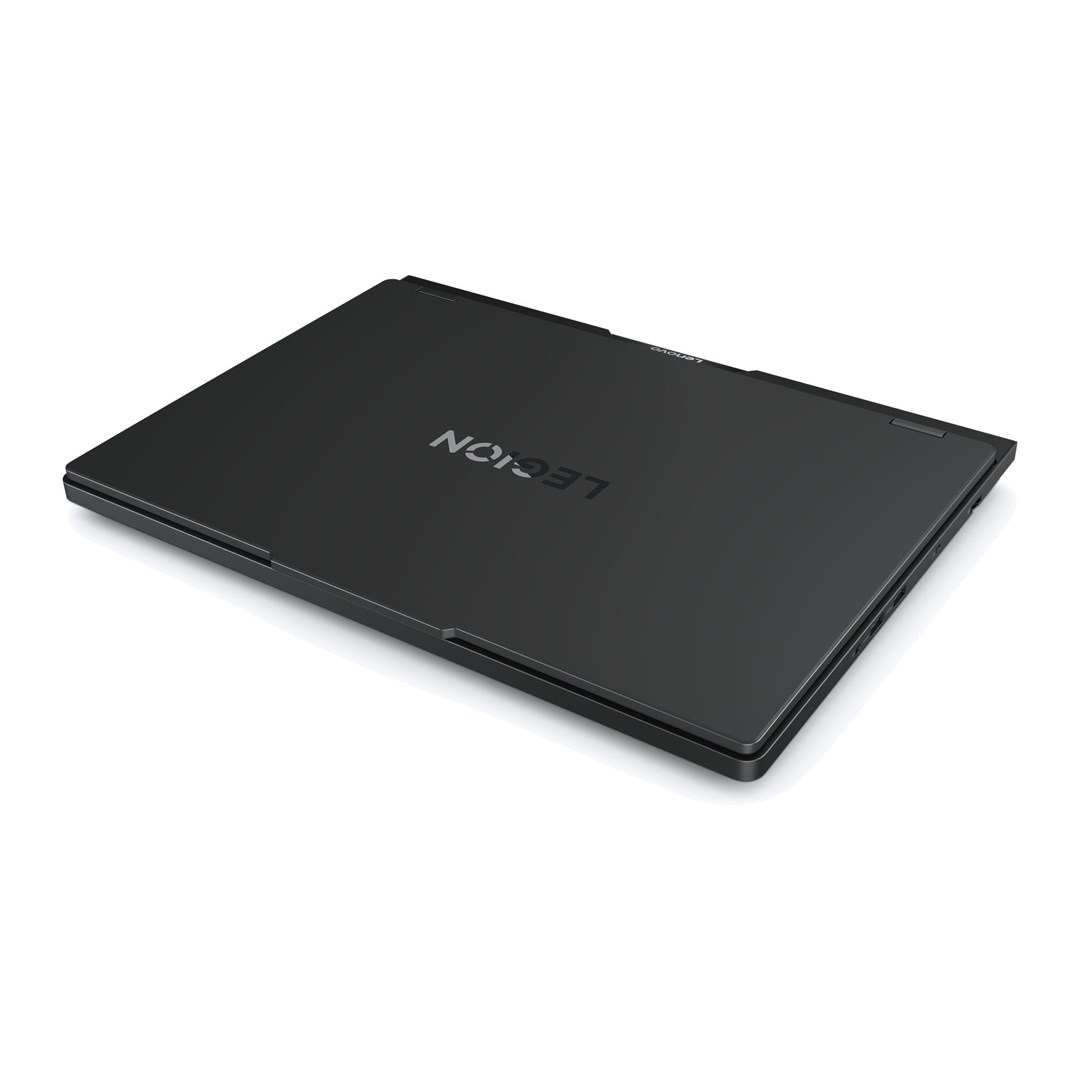

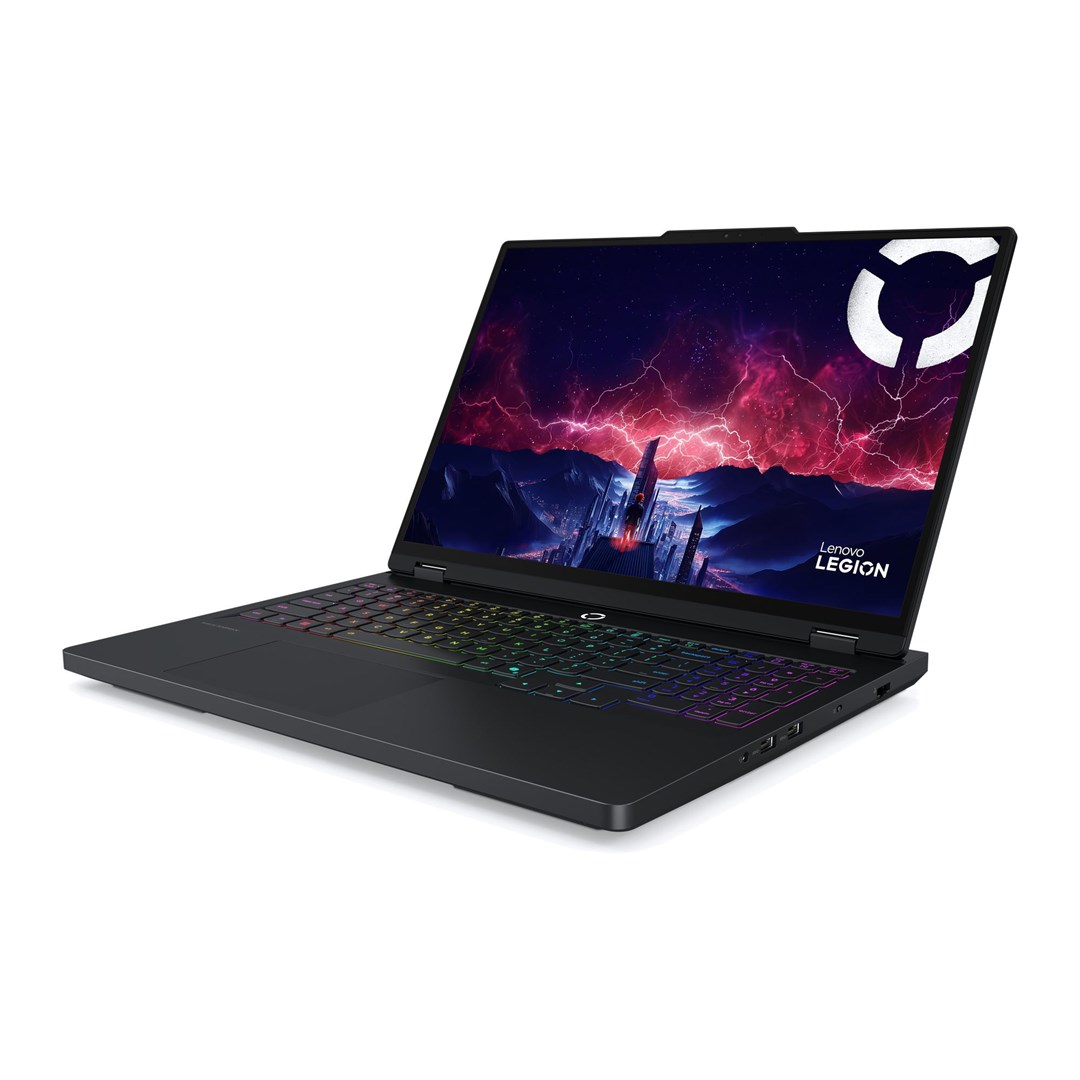

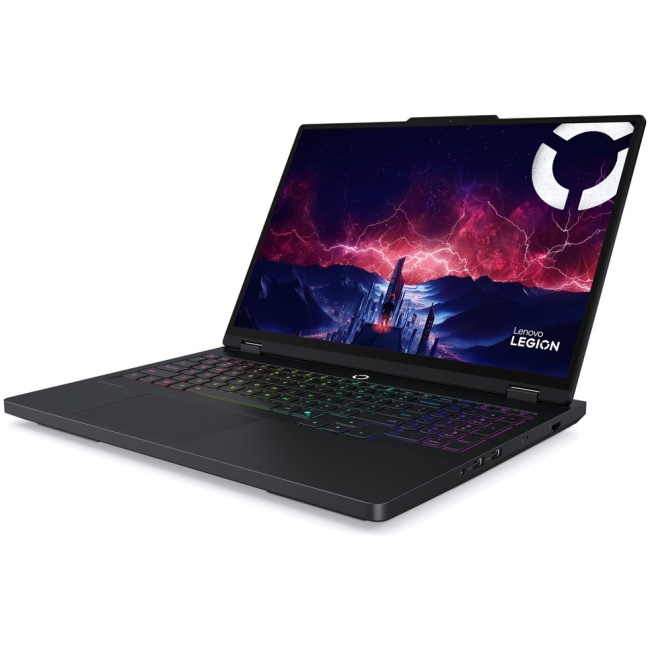

Lenovo Legion Pro 5 16ADR10 Ryzen 9 8945HX 16" WQXGA IPS 500 nits 240 Hz AG 32 GB DDR5 5200 SSD 1 TB GeForce RTX 5060 8 GB NoOS Eclipse Black

Technical Specifications

Processor

Processor boost frequency: 5.4 GHz

Processor family: AMD Ryzen™ 9

Processor cores: 16

Processor frequency: 2.5 GHz

Processor base power: 55 W

Processor generation: AMD Ryzen 8000 Series

L3 cache: 64 MB

Processor model: 8945HX

Processor manufacturer: AMD

Processor threads: 32

Graphics

Discrete graphics card model: NVIDIA GeForce RTX 5060

Discrete GPU manufacturer: NVIDIA

Discrete graphics memory type: GDDR7

Discrete graphics card memory: 8 GB

Discrete graphics card: Yes

:

:

:

:

:

:

:

:

:

:

Memory

Maximum internal memory: 32 GB

Memory clock speed: 5200 MHz

Memory form factor: SO-DIMM

Internal memory: 32 GB

Memory layout (slots x size): 2 x 16 GB

Internal memory type: DDR5-SDRAM

Memory slots: 2x SO-DIMM

:

:

:

Design

Product colour: Black

Colour name: Eclipse black

Housing material: Aluminium

Product type: Laptop

:

:

:

:

:

:

Power

AC adapter input voltage: 100 – 240 V

USB Type-C charging port: Yes

USB Power Delivery (USB PD): Yes

AC adapter power: 245 W

AC adapter frequency: 50/60 Hz

:

:

:

:

:

Security

Trusted Platform Module (TPM): Yes

Trusted Platform Module (TPM) version: 2.0

Fingerprint reader: No

:

:

:

:

:

:

:

Weight & dimensions

Weight: 2.4 kg

Height (rear): 2.6 cm

Height (front): 2.17 cm

Depth: 268.1 mm

Width: 364.4 mm

:

:

:

:

:

Network

Ethernet LAN data rates: 1000 Mbit/s

Antenna type: 2×2

Bluetooth: Yes

WWAN: Not installed

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Ethernet LAN: Yes

Wi-Fi standards: Wi-Fi 6 (802.11ax)

Bluetooth version: 5.2

:

:

Performance

Motherboard chipset: AMD SoC

:

:

:

:

:

:

:

:

:

Display

LED backlight: Yes

Display resolution: 2560 x 1600 pixels

Display surface: Gloss

Display diagonal: 40.6 cm (16")

HD type: WQXGA

Native aspect ratio: 16:10

RGB colour space: DCI-P3

High Dynamic Range (HDR) supported: Yes

High Dynamic Range (HDR) technology: DisplayHDR 400

Maximum refresh rate: 240 Hz

Software

Operating system installed: No

:

:

:

:

:

:

:

:

:

Audio

Audio chip: Realtek ALC3306

Built-in microphone: Yes

Speaker power: 2 W

Number of built-in speakers: 2

Number of microphones: 2

:

:

:

:

:

:

:

:

:

:

:

Storage

Optical drive type: No

Total SSDs capacity: 1 TB

Number of SSDs installed: 1

SSD interface: PCI Express 4.0

SSD capacity: 1 TB

Storage media: SSD

Card reader integrated: No

Total storage capacity: 1 TB

NVMe: Yes

SSD form factor: M.2

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Combo headphone/mic port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI version: 2.1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

:

:

:

Camera

Front camera resolution (numeric): 5 MP

:

:

:

:

:

:

:

:

:

Battery

Battery capacity: 80 Wh

:

:

:

:

:

:

:

:

:

Keyboard

Copilot key: Yes

Keyboard backlit zone: 24-zone RGB

Keyboard backlit colour: RGB

Keyboard backlit: Yes

Pointing device: Touchpad

Numeric keypad: Yes

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
