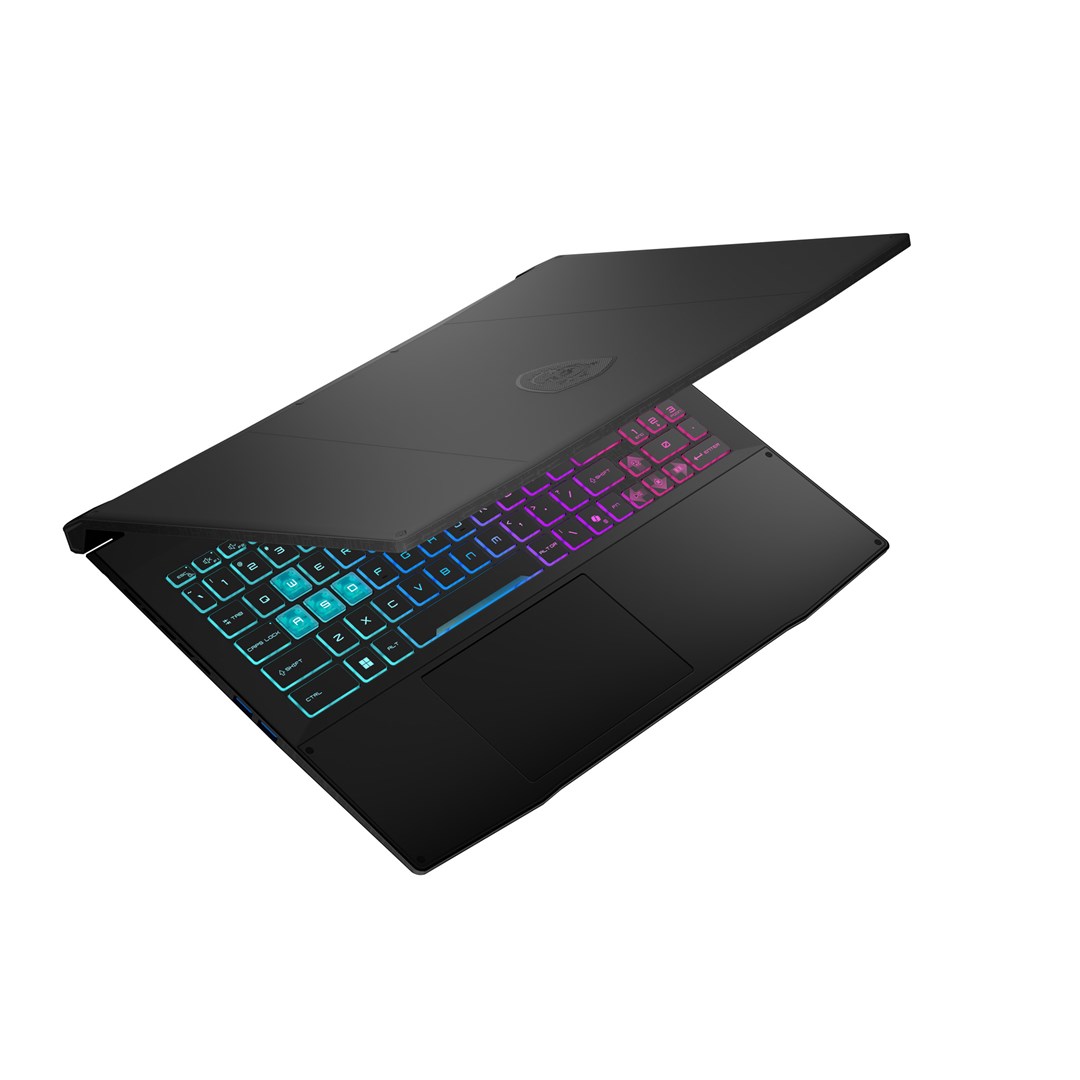

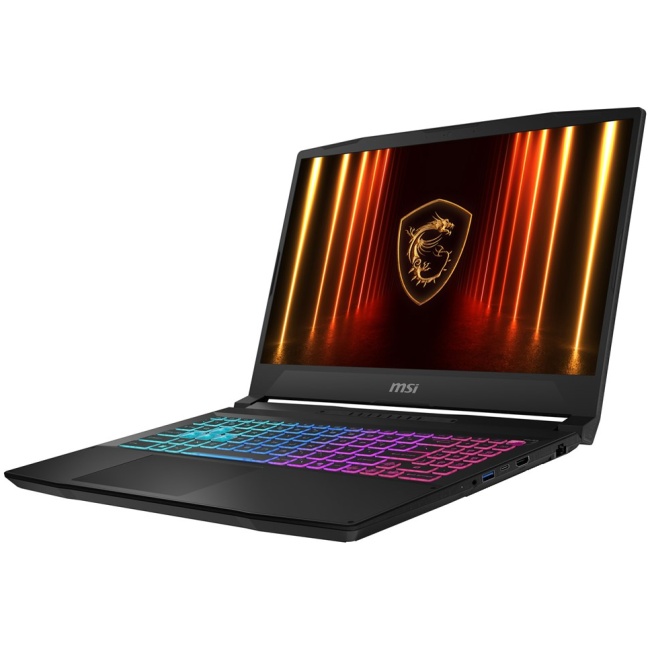

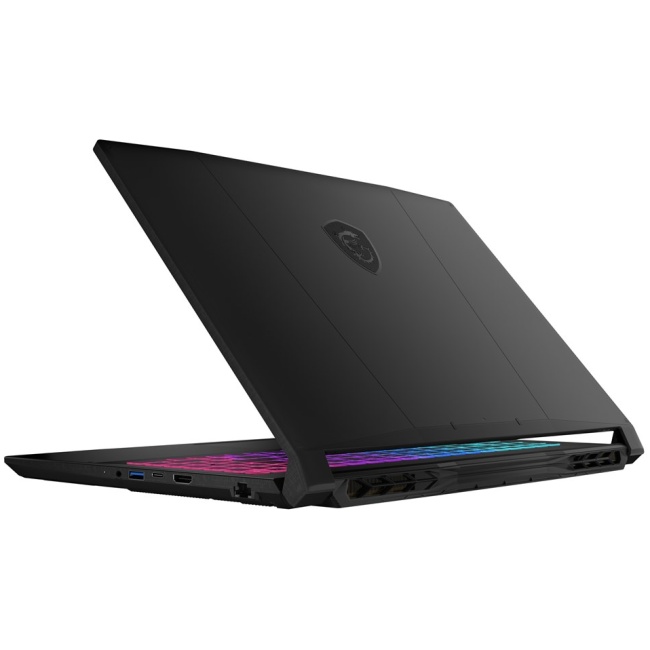

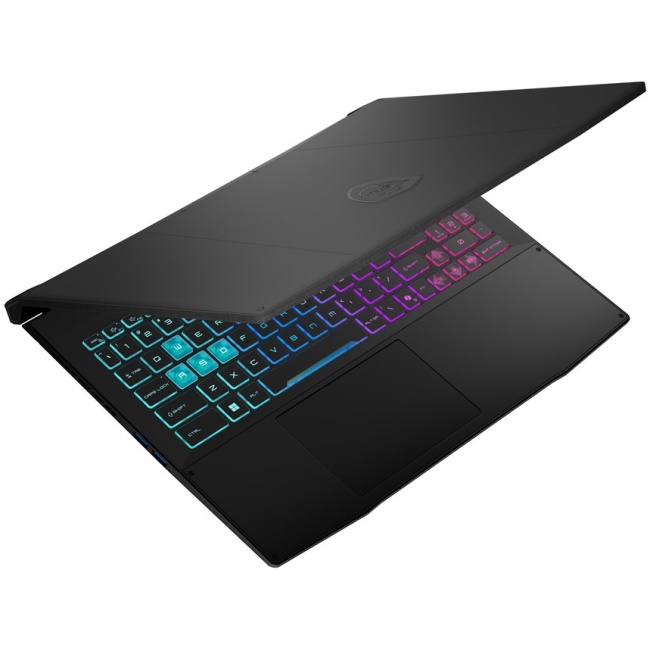

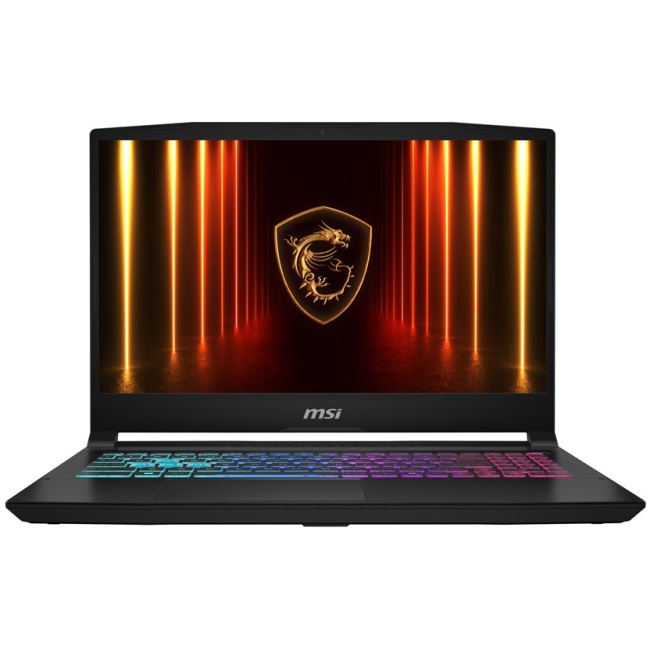

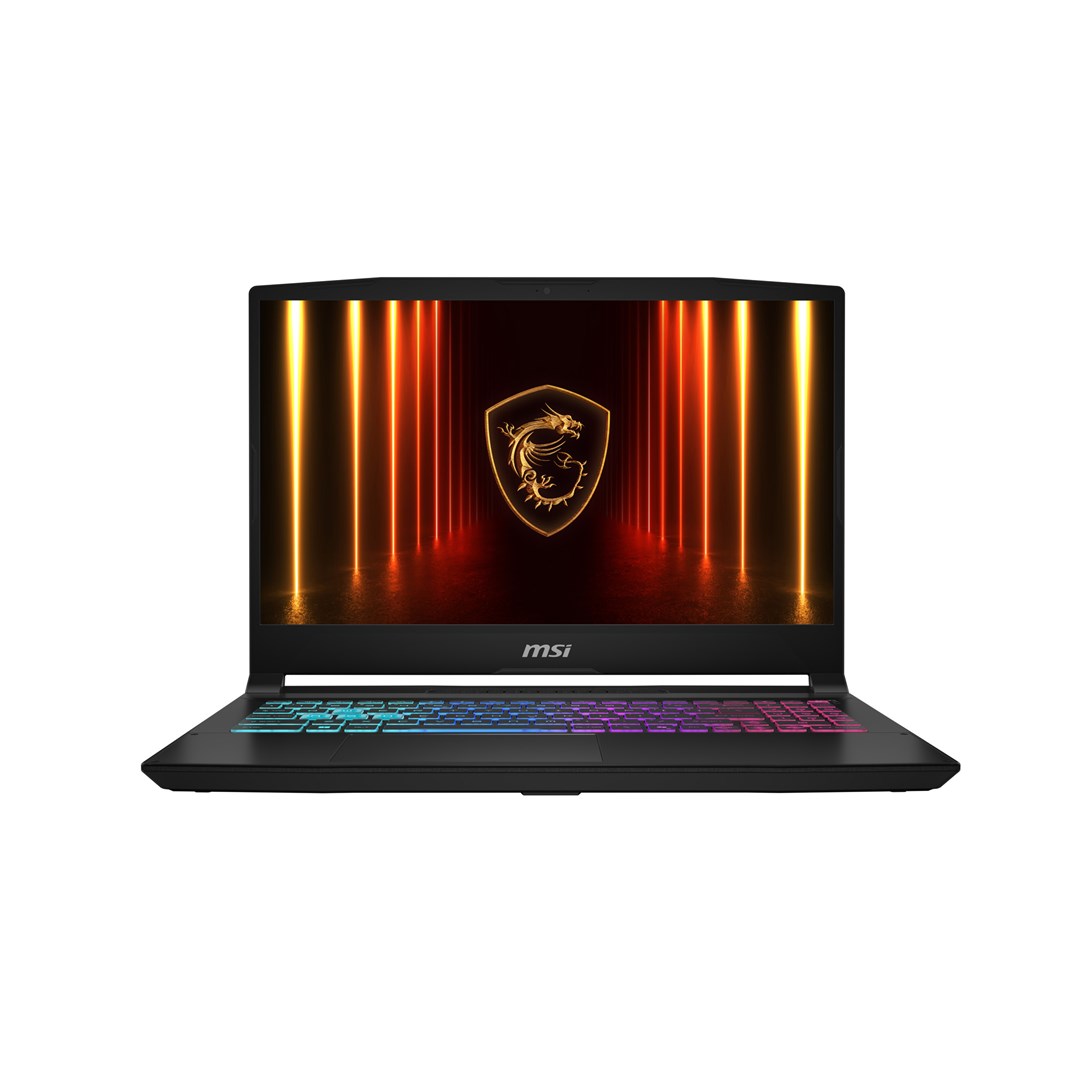

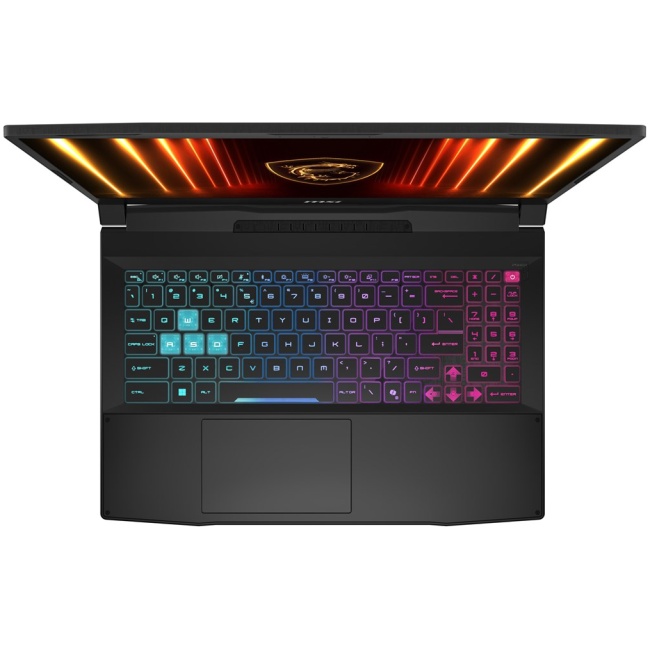

MSI Katana 15 HX B14WFK-605XPL Intel® Core™ i7 i7-14650HX Laptop 39.6 cm (15.6") Full HD 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 5060 Wi-Fi 6E (802.11ax) NoOS Black

Technical Specifications

Processor

Processor boost frequency: 5.2 GHz

Processor threads: 24

Processor model: i7-14650HX

Processor cores: 16

Processor cache: 30 MB

Processor family: Intel® Core™ i7

Processor cache type: Smart Cache

Efficient cores: 8

Processor manufacturer: Intel

Performance cores: 8

Graphics

On-board graphics card model: Intel® UHD Graphics

Discrete graphics card memory: 8 GB

Discrete graphics card model: NVIDIA GeForce RTX 5060

Discrete graphics memory type: GDDR7

On-board graphics card family: Intel® UHD Graphics

Discrete graphics card: Yes

On-board graphics card: Yes

On-board GPU manufacturer: Intel

Discrete GPU manufacturer: NVIDIA

:

:

:

:

:

:

Memory

Memory clock speed: 5600 MHz

Internal memory: 16 GB

Maximum internal memory: 96 GB

Internal memory type: DDR5-SDRAM

Memory slots: 2x SO-DIMM

Memory layout (slots x size): 2 x 8 GB

:

:

:

:

Design

Product colour: Black

Housing material: Plastic

Product type: Laptop

Original brand name: MSI

:

:

:

:

:

:

Power

DC-in jack: Yes

AC adapter input voltage: 90 – 264 V

USB Type-C charging port: Yes

USB Power Delivery (USB PD): Yes

AC adapter power: 240 W

:

:

:

:

:

Security

Trusted Platform Module (TPM): Yes

Trusted Platform Module (TPM) version: 2.0

:

:

:

:

:

:

:

:

Weight & dimensions

Weight: 2.4 kg

Depth: 262 mm

Width: 359 mm

Height: 25.5 mm

:

:

:

:

:

:

Network

Ethernet LAN data rates: 1000 Mbit/s

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

WLAN controller manufacturer: Intel

WWAN: Not installed

Bluetooth version: 5.3

Wi-Fi standards: Wi-Fi 6E (802.11ax)

WLAN controller model: Intel Wi-Fi 6E AX211

Ethernet LAN: Yes

Mobile network connection: No

Performance

Motherboard chipset: Intel HM770

Repairability index: 8

:

:

:

:

:

:

:

:

Packaging content

AC adapter included: Yes

:

:

:

:

:

:

:

:

:

Display

Display diagonal: 39.6 cm (15.6")

Native aspect ratio: 16:9

Display resolution: 1920 x 1080 pixels

HD type: Full HD

Touchscreen: No

Panel type: IPS-Level

Anti-glare screen: Yes

Maximum refresh rate: 144 Hz

:

:

Software

Operating system installed: N

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

Audio

Built-in microphone: Yes

Audio system: Nahimic 3

Number of built-in speakers: 2

Speaker power: 2 W

:

:

:

:

:

:

Storage

Total storage capacity: 512 GB

Optical drive type: No

Storage media: SSD

NVMe: Yes

SSD interface: PCI Express 4.0

Total SSDs capacity: 512 GB

SSD capacity: 512 GB

Number of SSDs installed: 1

SSD form factor: M.2

:

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Combo headphone/mic port: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

USB Type-C DisplayPort Alternate Mode: Yes

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

HDMI ports quantity: 1

USB Sleep-and-Charge: Yes

:

:

Camera

Front camera: Yes

Front camera HD type: HD

Video capturing speed: 30 fps

Front camera resolution: 1280 x 720 pixels

:

:

:

:

:

:

Battery

Battery capacity: 4850 mAh

Number of battery cells: 4

:

:

:

:

:

:

:

:

Keyboard

Copilot key: Yes

Pointing device: Touchpad

Keyboard layout: QWERTY

Keyboard backlit zone: 4-zone RGB

Numeric keypad: Yes

Keyboard backlit colour: RGB

Keyboard backlit: Yes

:

:

:

Safety warning

Hazard pictogram(s): GHS09: Environmental hazard

Warnings: Do not dispose of your old device in the normal household waste – take it to an electronic waste collection point.

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:
