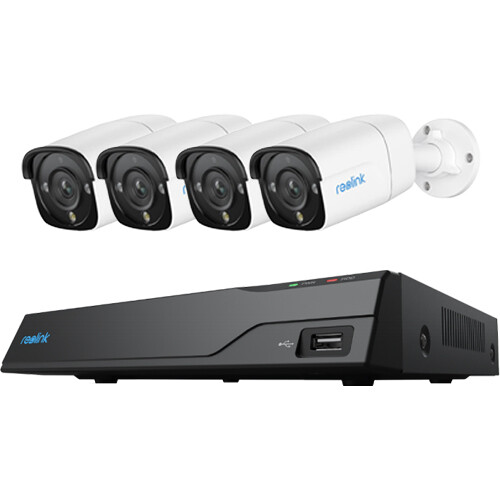

Reolink KIT 8xChNVR+4x12MP Bullet+2TB NVR RLK8-1200B4-A (NVS8-12MB4)

Smart 12MP PoE Surveillance Kit with Spotlight & 24/7 Recording

• Person/Vehicle/Animal Detection
• 12MP Ultra HD
• Power over Ethernet
• Supports Up to 16 Channels

—

Video/Audio Input

• IP Video Input : PoE IP Camera x 8
• Audio Input : Cameras with built-in mic

Video/Audio Output

• Video Output : VGA, HDMI
• Display Resolution : HDMI: 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 / VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
• Audio output : 1-channel, RCA

Decoding

• Live View/Playback Resolution : 7680×2160,4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
• Video Format : H.265, H.264
• Synchronous Playback : Up to 4 channels

HDD

• SATA : 1 x SATA interface (1 x 2TB HDD included)
• Capacity : Up to 12TB (Max. 6TB capacity for each HDD)
• External HDD : 1 eSATA Interface for HDD

External Interface

• USB Interface : 2 x USB 2.0
• Network Interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN
• PoE : 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

• Max. Power Per Port : 25W
• Supported Standard : IEEE 802.3 af/at

Network

• Network Protocol : HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
• Browser Supported : Edge, Firefox, Chrome, Safari
• OS Supported :  Windows, Mac OS; Smartphone: iOS, Android
• Max. User Access : 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

• Power Supply : DC 48V~53V
• Power Consumption : <10W (without HDD&PoE)
• Working Environment : Temperature: -10°C~+45°C  Humidity: 10%~90%
• Dimensions : 255 x 49.5 x 232mm
• Weight : 1.4kg

Camera

Video & Audio

• Image Sensor : 1/2.49" CMOS Sensor
• Video Resolution : Default: 4512X2512 (12 Megapixels) at 20 frames/sec
• Lens : f=4.0mm; F=1.6, with IR-cut filter
• Video Format : H.265
• Field of View :  Horizontal: 93° /  Vertical: 49°
• Day & Night : Auto-switching with IR-cut filter
• Infrared Night Vision : 30 meters (LED: 2pcs/28mil/850nm)
• Color Night Vision : Spotlight: 1pcs/4.3W/6500K/700 Lumens
• Audio : Two-way audio

Power

• POE : IEEE 802.3af, 48V Active
• DC Power : DC 12.0V⎓1A, <12W

Interface

• Power : DC power port
• System : Reset button
• Ethernet : One 10M/100Mbps; RJ45
• Storage : Micro SD card slot (Max. 256GB)
• Audio : Built-in microphone and speaker

Software Features

• Frame Rate :  Mainstream: 2fps – 20fps (default: 20fps) / Substream: 4fps – 20fps (default: 10fps)
• Code Rate : Mainstream: 3072Kbps – 10240Kbps (default: 8192Kbps) / Substream: 128Kbps – 1024Kbps (default: 768Kbps)
• Smart Alarm : Motion detection/person detection/vehicle detection

Working Environment

• Temperature : Operating temperature: -10°C~+55°C
• Humidity : Operating humidity: 10% ~ 90%
• Waterproof : IP67

Size & Weight

• Dimension : Φ67*187mm
• Weight : 460g

—
