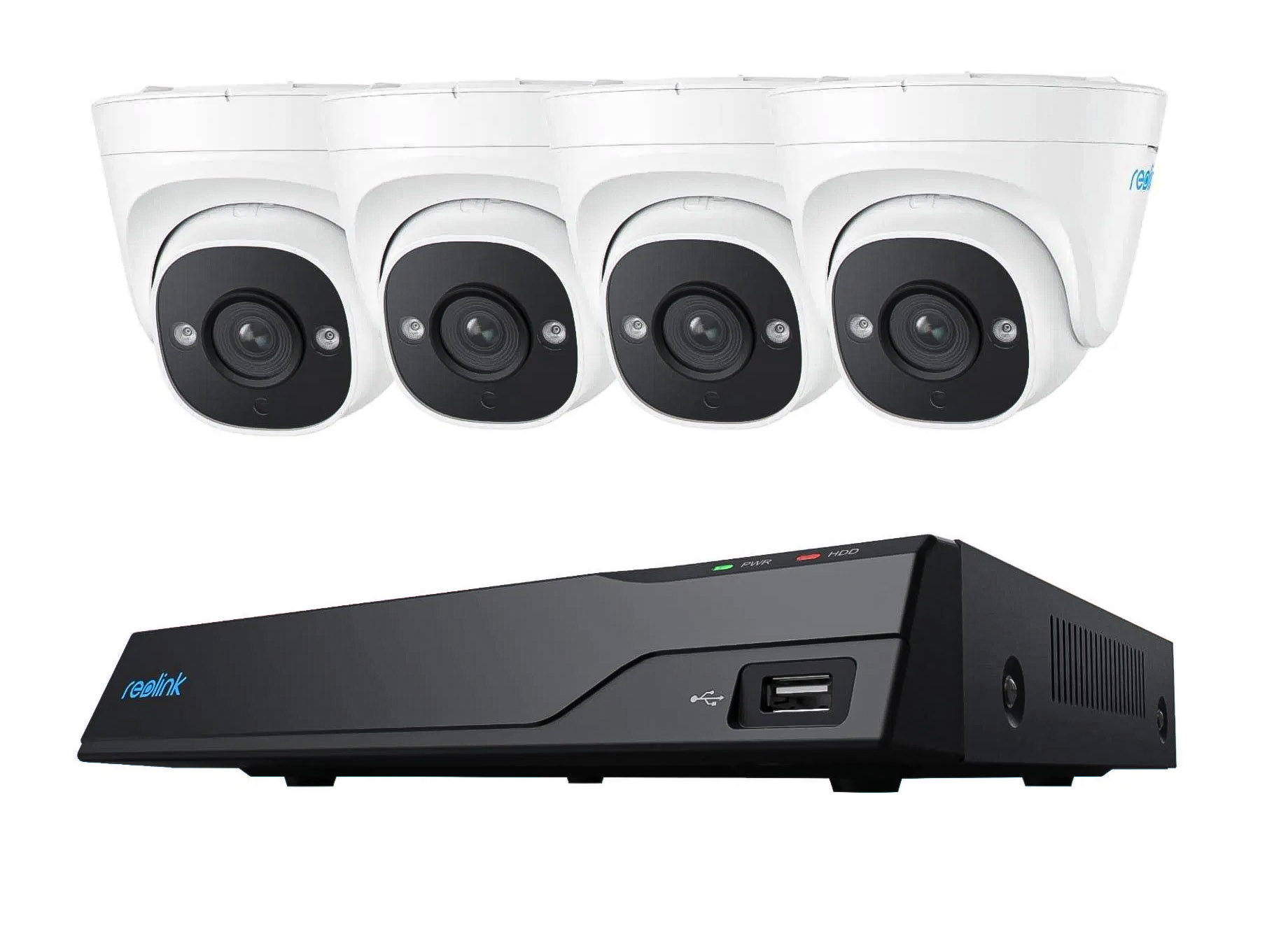

Reolink KIT 8xChNVR+4x5MP Dome+2TB RLK8-520D4-5MP (NVS8-5MD4)

• Power over Ethernet
• With 8-Channel NVR
• 2TB HDD Built-in
• Person/Vehicle Detection

—

Hardware

• N7MB01

Video/Audio Input

• IP Video Input : PoE IP Camera x 8
• Audio Input : Cameras with built-in mic

Video/Audio Output

• Video Output : VGA, HDMI
• Display Resolution : HDMI: 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 / VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
• Audio output : 1-channel, RCA

Decoding

• Live View/Playback Resolution : 7680×2160,4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
• Video Format : H.265, H.264
• Synchronous Playback : Up to 4 channels

HDD

• SATA : 1 x SATA interface (1 x 2TB HDD included)
• Capacity : Up to 12TB (Max. 6TB capacity for each HDD)
• External HDD : 1 eSATA Interface for HDD

External Interface

• USB Interface : 2 x USB 2.0
• Network Interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN
• PoE : 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

• Max. Power Per Port : 25W
• Supported Standard : IEEE 802.3 af/at

Network

• Network Protocol : HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
• Browser Supported : Edge, Firefox, Chrome, Safari
• OS Supported :  Windows, Mac OS; Smartphone: iOS, Android
• Max. User Access : 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

• Power Supply : DC 48V~53V
• Power Consumption : <10W (without HDD&PoE)
• Working Environment : Temperature: -10°C~+45°C  Humidity: 10%~90%
• Dimensions : 255 x 49.5 x 232mm
• Weight : 1.4kg

Warranty

• Limited Warranty : 2-year limited warranty

Camera

Video & Audio

• Image Sensor : 1/2.7" CMOS sensor
• Video Resolution : Default: 2880 x 1616 (5.0 Megapixels) at 30 frames/sec
• Lens : f=4.0mm fixed; F=2.0, with IR-cut filter
• Video Format : H.264
• Field of View :  Horizontal: 80° /  Vertical: 42°
• Day & Night : Auto-switching with IR-cut filter
• Night Vision : 30 meters (100ft) (LED: 2pcs/1.8W/850nm)
• Audio : Audio recording

Power

• PoE :IEEE 802.3af, 48V Active
• DC Power : DC 12.0V⎓1A, <12W

Interface

• Power : DC power port
• System : Reset button
• Ethernet : One 10M/100Mbps; RJ45
• Storage : MicroSD card slot (Max. 256GB)
• Audio : Built-in microphone

Software Features

• Frame Rate :  Mainstream: 2fps – 30fps (default: 30fps) /  Substream: 4fps – 15fps (default: 10fps)
• Code Rate :  Mainstream: 1024Kbps -8192Kbps (default: 6144Kbps) /  Substream: 64Kbps – 512Kbps (default: 256Kbps)
• Browser Supported : Edge, Chrome, Firefox, Safari
• OS Supported : PC: Windows, Mac OS; Smartphone: iOS, Android
• Smart Alarm : Motion detection/Person detection/Vehicle detection
• Record Mode : Motion-triggered recording (default); scheduled recording; 24/7 recording
• Protocols & Standards : HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
• Maximal User Access : 20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
• Smart Home : Google Assistant

Working Environment

• Temperature : Operating temperature: -10°C ~ +55°C
• Humidity : Operating humidity: 10% ~ 90%
• Waterproof : IP66

Size & Weight

• Dimension : Φ105*93mm
• Weight : 480g

—
