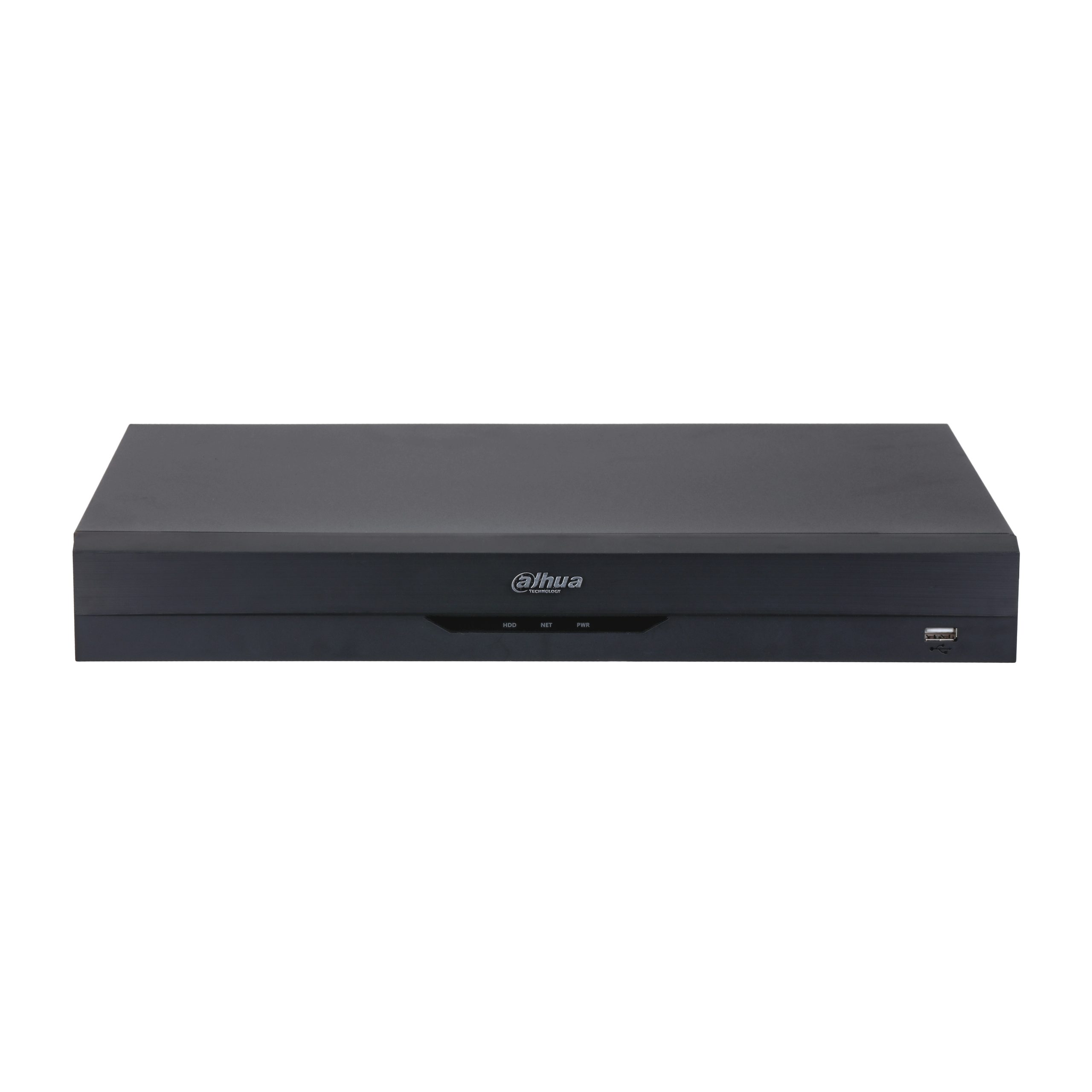

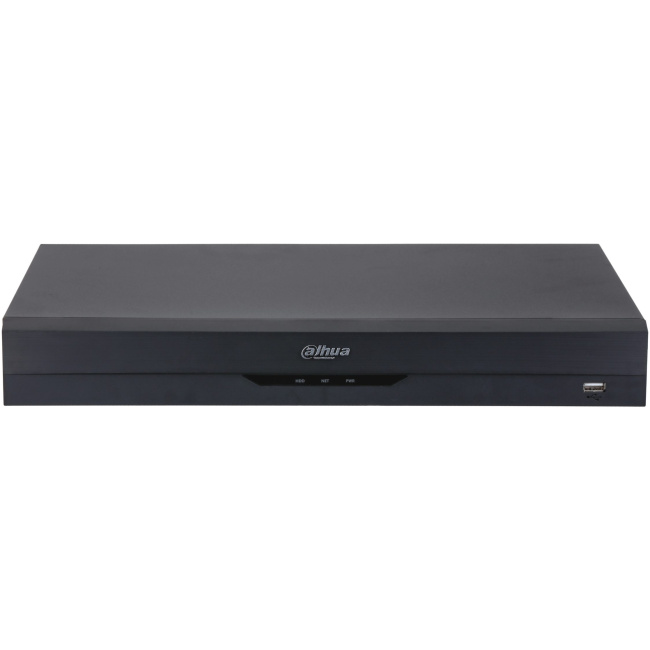

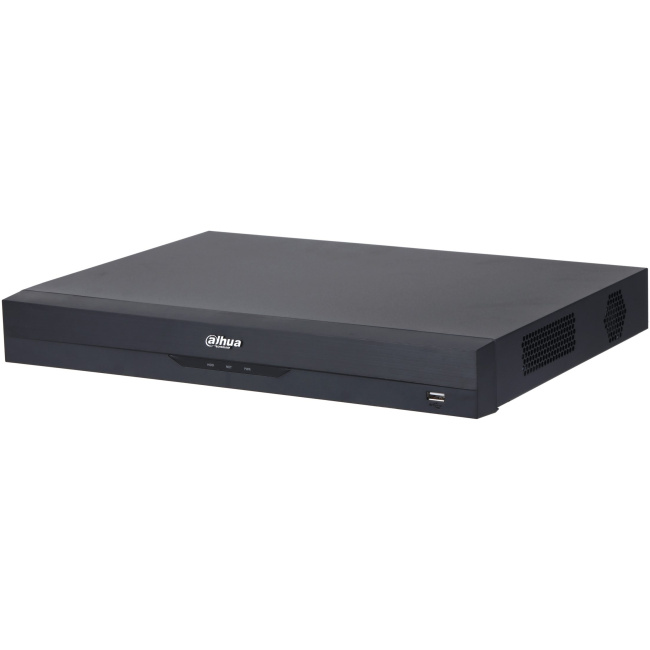

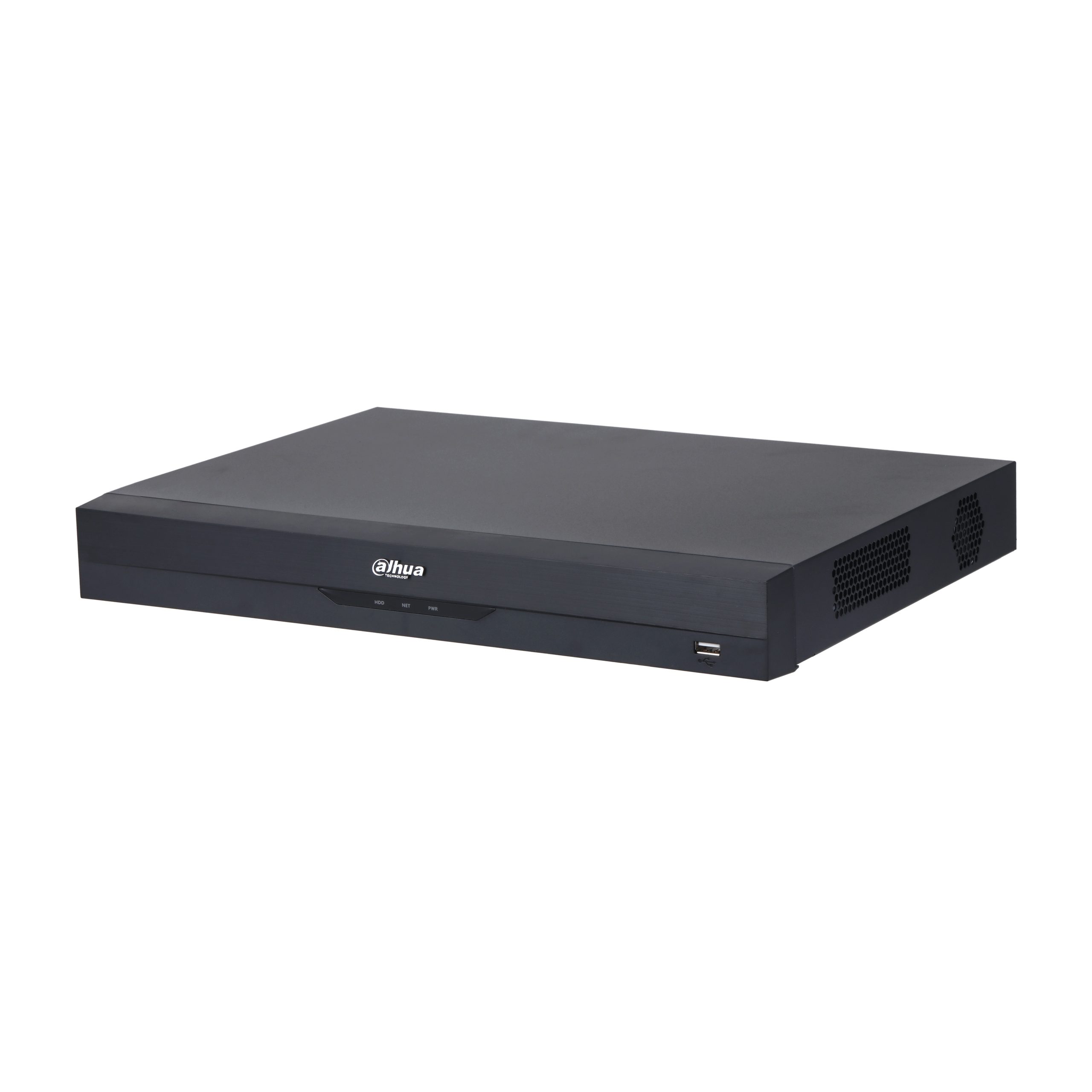

Dahua XVR 1080P 16channels H.265 Penta-brid WizSense XVR5216AN-I3

• H.265+/H.265 dual-stream video compression
• Supports Full-channel AI Coding
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Max 24 channels IP camera inputs, each channel up to 6MP; Max 128Mbps incoming bandwidth
• Up to 4 channels video stream (analog channel) Perimeter Protection
• Up to 16 channels video stream (analog channel) SMD Plus
• Up to 2 channels video stream (analog channel) human face recognition
• IoT & POS functionalities

—

System

• Main Processor : Embedded processor
• Operating System : Embedded Linux

Perimeter Protection

• Perimeter Performance AI by Recorder (Number of Channels) : Advanced Model: 2 channel, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel

Face Detection

• Face Attributes : 6 attributes: Gender, age groups (6), glasses, expressions (8), face mask, beard, with up to four detection panels displayed at the same time
• Face Detection Performance of AI by Recorder (Number of Channels) : 2 channels, and a single channel can detect up to 12 faces

Face Recognition

• Face Database Capacity : Up to 10 face databases and 10,000 pictures.
• Face Recognition Performance of AI by Recorder (Number of Channels) : 2 channels

SMD Plus

• SMD Plus by Recorder : Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

• Analog Camera Input : 16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured
• Camera Input : 1. CVI: 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps /  2. TVI: 5MP, 4MP,  1080p@25/30, 720p@25/30 fps /  3. AHD: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps
• IP Camera Input : 16+8 channels, each channel up to 6MP
• Encoding Capacity : All channel 5M-N (1 fps–10 fps)/ 4M-N/1080p (1 fps–15 fps) /  1080N/720p/960H/D1/CIF (1 fps–25/30 fps)
• Dual-stream : Supported (D1/CIF (1 fps–15 fps)).
• Video Frame Rate : PAL: 1 fps–25 fps / NTSC: 1 fps–30 fps.
• Video Bit Rate : 32 Kbps–6144 Kbps Per Channel
• Audio Sampling : 8 KHz, 16 bit Per Channel
• Audio Bit Rate : 64 Kbps Per Channel
• Bit Rate Type : Video stream and composite stream.
• Video Output : 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 /  1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 / It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode
• Multi-screen Display : When IP extension mode not enabled: 1/4/8/9/16 / When IP extension mode enabled: 1/4/8/9/16/25
• Third-party Camera Access : Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

Compression Standard

• Video Compression : AI Coding/H.265+/H.265/H.264+/H.264
• Audio Compression : G.711A/G.711u/PCM

Network

• Network Protocol : HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
• Mobile Phone Access : iPhone, iPad, Android
• Interoperability : ONVIF 16.12, CGI Conformant
• Browser : Chrome, IE9 or above, Firefox
• Network Mode : Single-address mode

Recording Playback

• Record Mode : Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
• Recording Playback : 1/4/9/16 / It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode
• Backup Method : USB Device/Network
• Playback Mode : Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

• Disk Group : Yes

Alarm

• General Alarm : Motion detection, Video Loss, tampering
• Anomaly Alarm : No disk, disk error, low space, offline, ip conflict, MAC conflict
• Intelligent Alarm : Face detection, face recognition, perimeter protection
• Alarm Linkage : Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

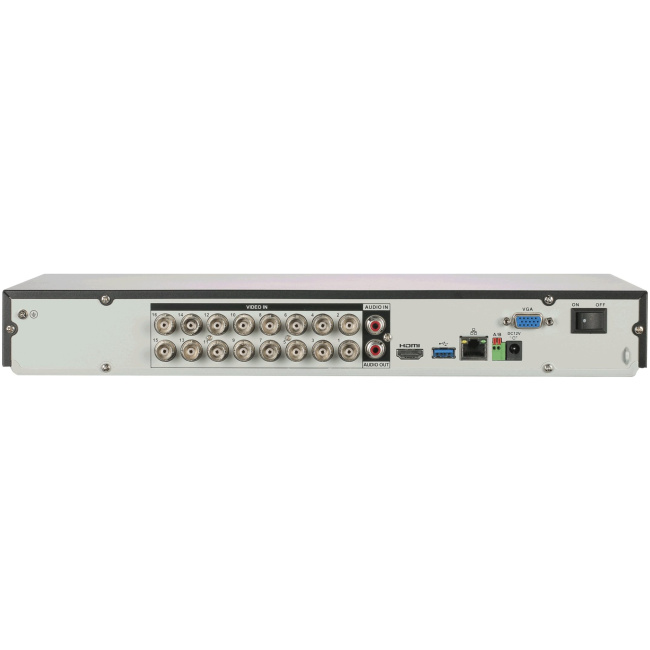

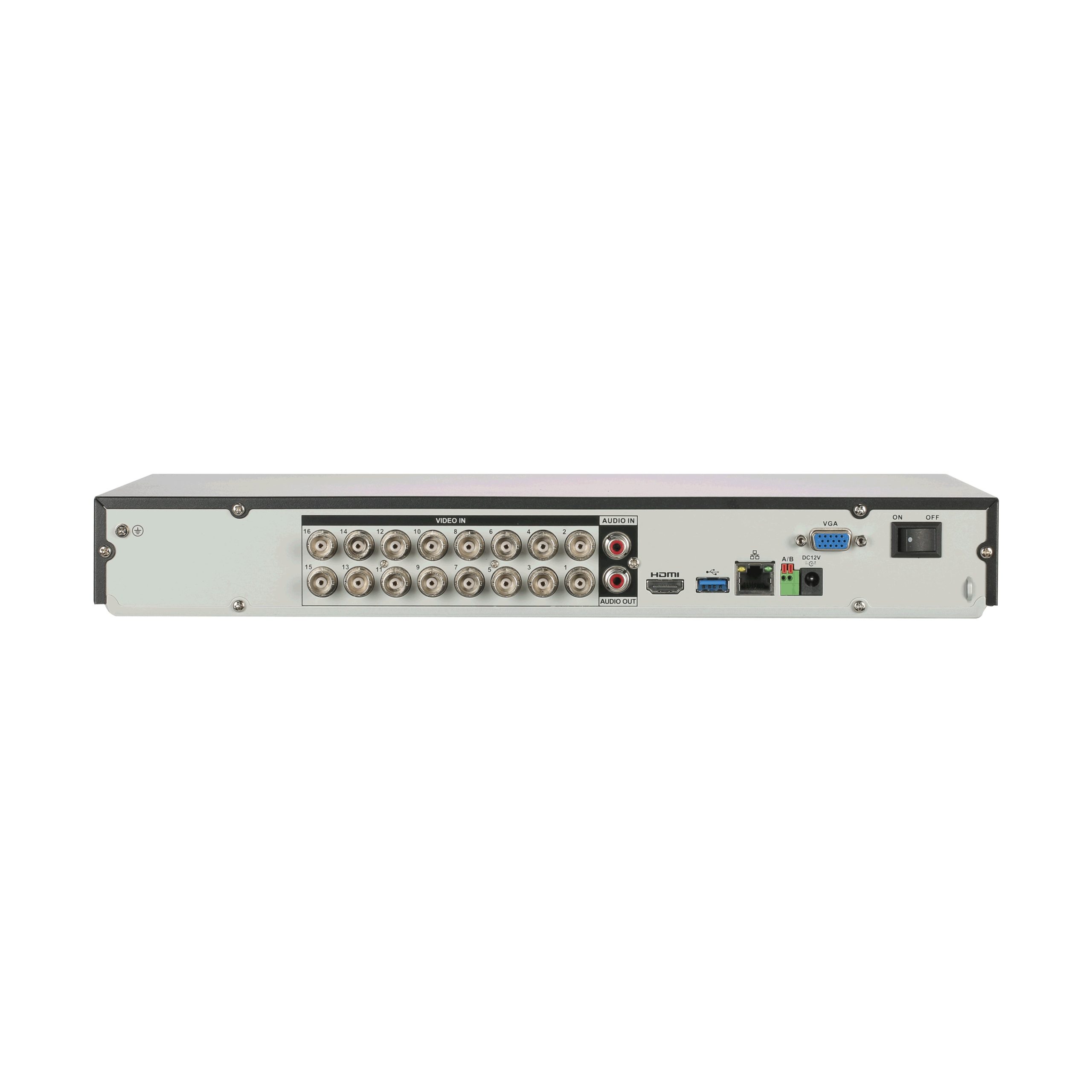

Ports

• Audio Input : 1, RCA (external) / 16, BNC (coaxial)
• Audio Output  : 1, RCA
• Two-way Talk : Yes (share the same audio input with the first channel)
• HDD Interface : 2 SATA Ports, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature
• RS-485 : 1 Port, for PTZ Control
• USB : 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
• HDMI : 1
• VGA : 1
• Network Port : 1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

• Power Supply : DC12V, 4A
• Power Consumption : Lower than 12 W
• Net Weight : 1.56 kg
• Gross Weight : 2.86 kg
• Product Dimensions : 1U, 375.0 mm × 289.0 mm × 53.0 mm (W × D × H)
• Packaging Dimensions : 433.0 mm × 141.0 mm × 366.0 mm (L × W × H)
• Operating Temperature : –10 °C to +55 °C
• Operating Humidity : 10%–90%
• Installation : Desktop
• Certifications : CE: CE-LVD: EN 60950-1/IEC 60950-1, CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, FCC: Part 15 Subpart B

—
